VT-HDBXT Series 4K／UHD HDBaseT Extender Kit
• Transmits 4K/UHD video/audio signals using HDBaseT extension technology
• Up to 150 meters in long-reach mode: up to 4Gbps HDBaseT traffic rate
• Resists signal interference during high-quality video transmission
• Eliminates encoding/decoding delays
• EDID adjustment mechanism for HDMI 2.0 at pixel clock higher than 340MHz
• Prevents transmission of unsupported resolutions with large bandwidths
• Compliant with HDBaseT 2.0
• Plug and play
• Transmitter supports three configurations; receiver offers USB interfaces for HIDs
VT-HDBXT series 4K/UHD HDBaseT extender kit offers a plug-and-play solution for ultra-low-latency, uncompressed video, and audio transmission over up to 100 meters via a single Cat5e/6/7 cable. Engineered for reliability and minimal interference, this kit ensures pristine signal integrity, making it ideal for any setup that requires reliable, long-distance AV distribution.

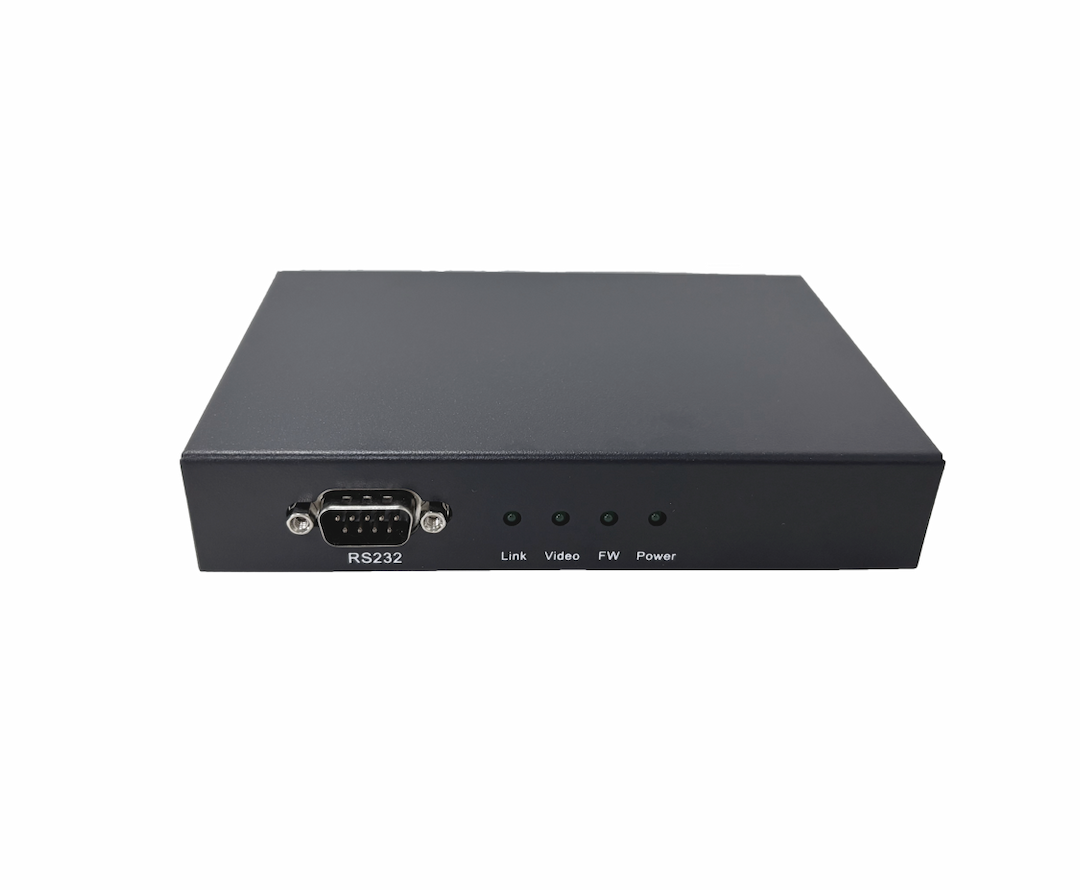

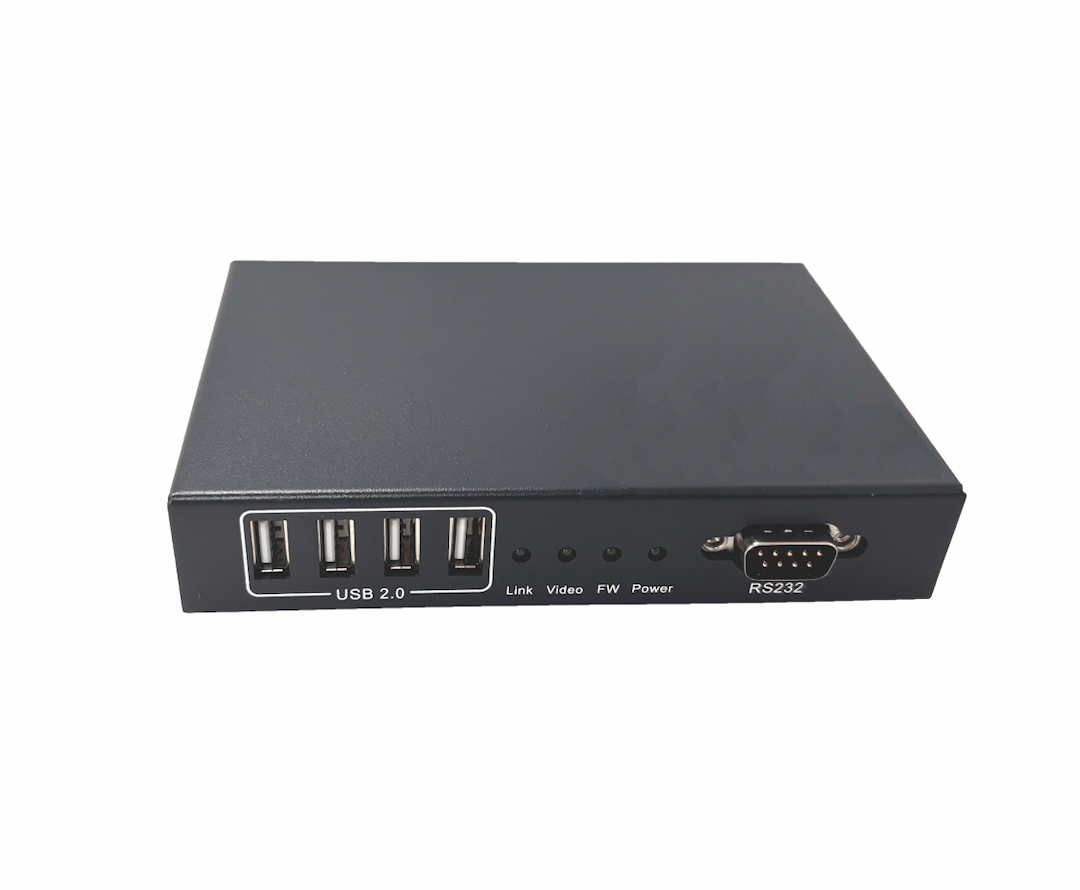

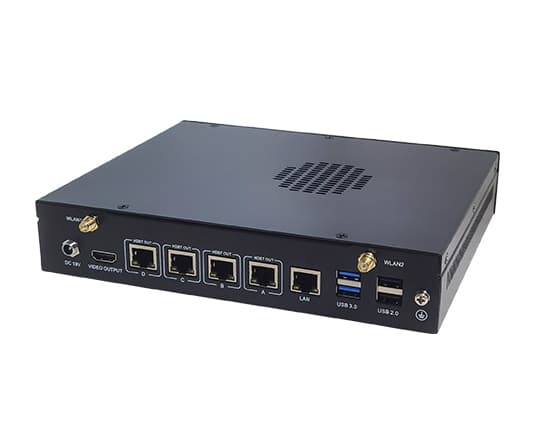

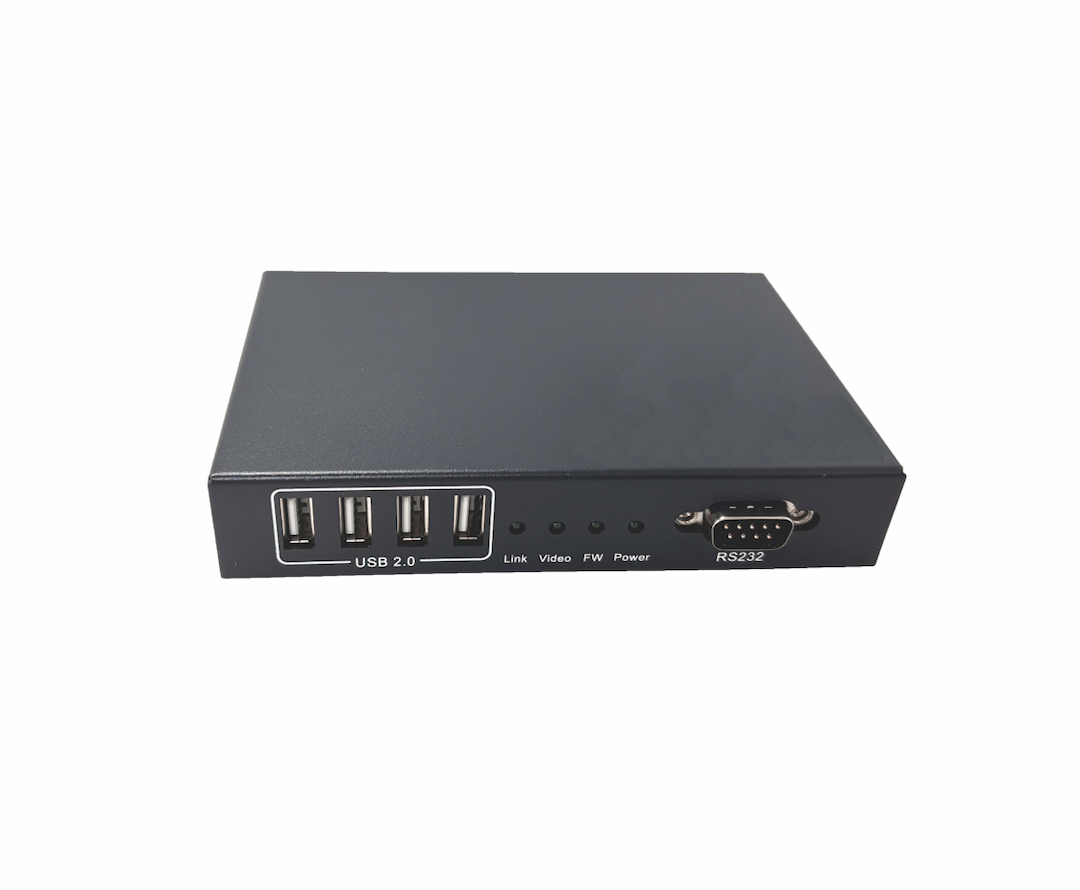

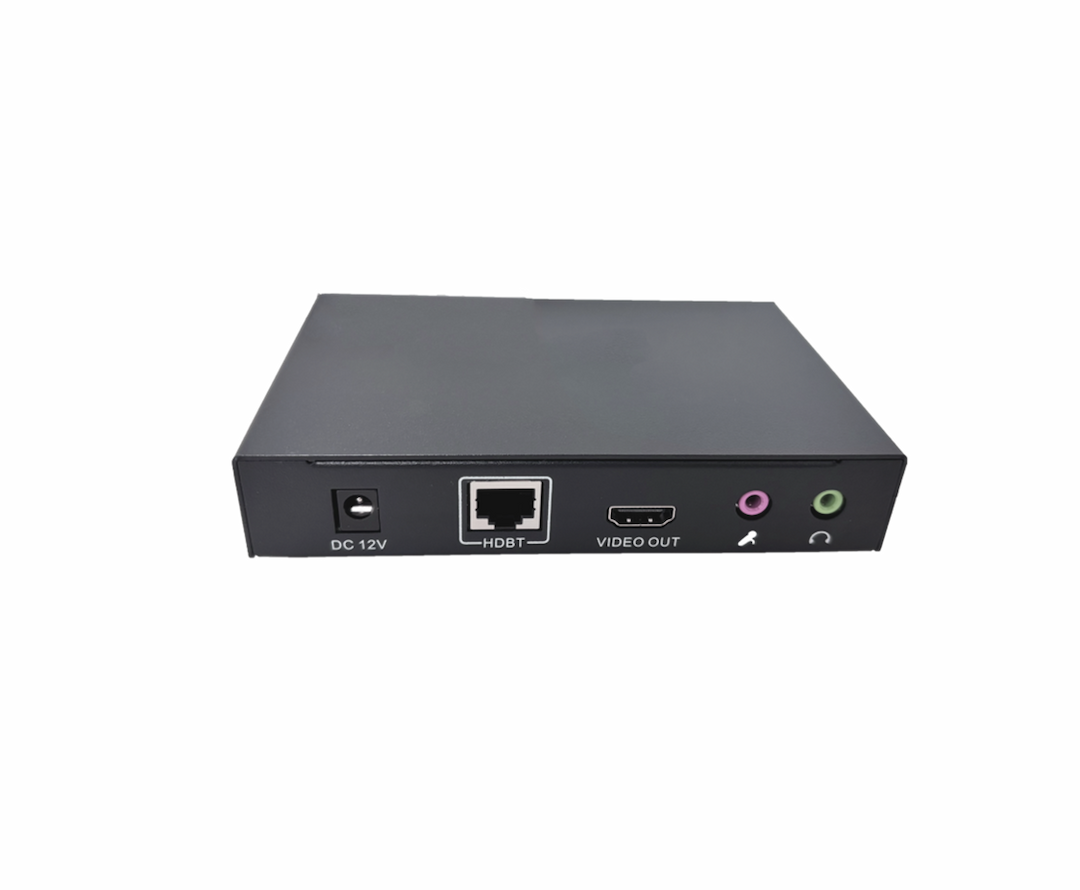

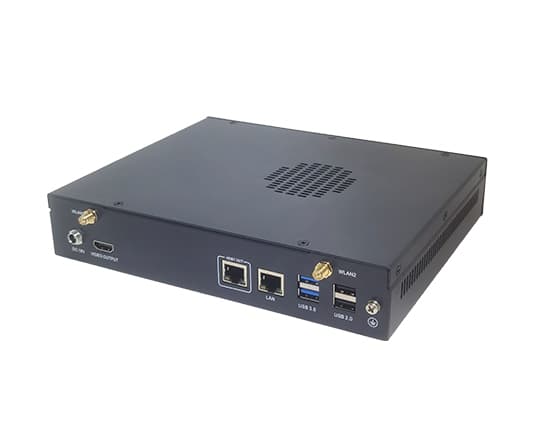

The extender kit comprises an HDBaseT transmitter (VT-HDBXT-TX) and an HDBaseT receiver (VT-HDBXT-RX). The transmitter features HDMI input (4K@30Hz 4:4:4), HDBaseT output, and RS232 for control system integration. The receiver provides HDBaseT input, HDMI output with EDID management, RS232 control port, professional audio I/Os, and multiple USB 2.0 ports supporting UVC cameras, HID devices, and storage media. The transmitter supports three configurations: full bidirectional deployment (transmitter-to-receiver over a Cat5e/6/7), standalone transmitter mode (connection to an HDBaseT-enabled display), and simple HDMI mode (direct connection to an HDMI display). Vantron HT7200/HT6200 HDBaseT player functions as a transmitter and can pair with the receiver for extended-range transmission.
The extender kit is highly suitable for use in scenarios such as medical imaging, surveillance systems, digital signage, conference rooms, home theater, or large venues, ensuring a simple, clean, and efficient setup for all your connectivity needs.
