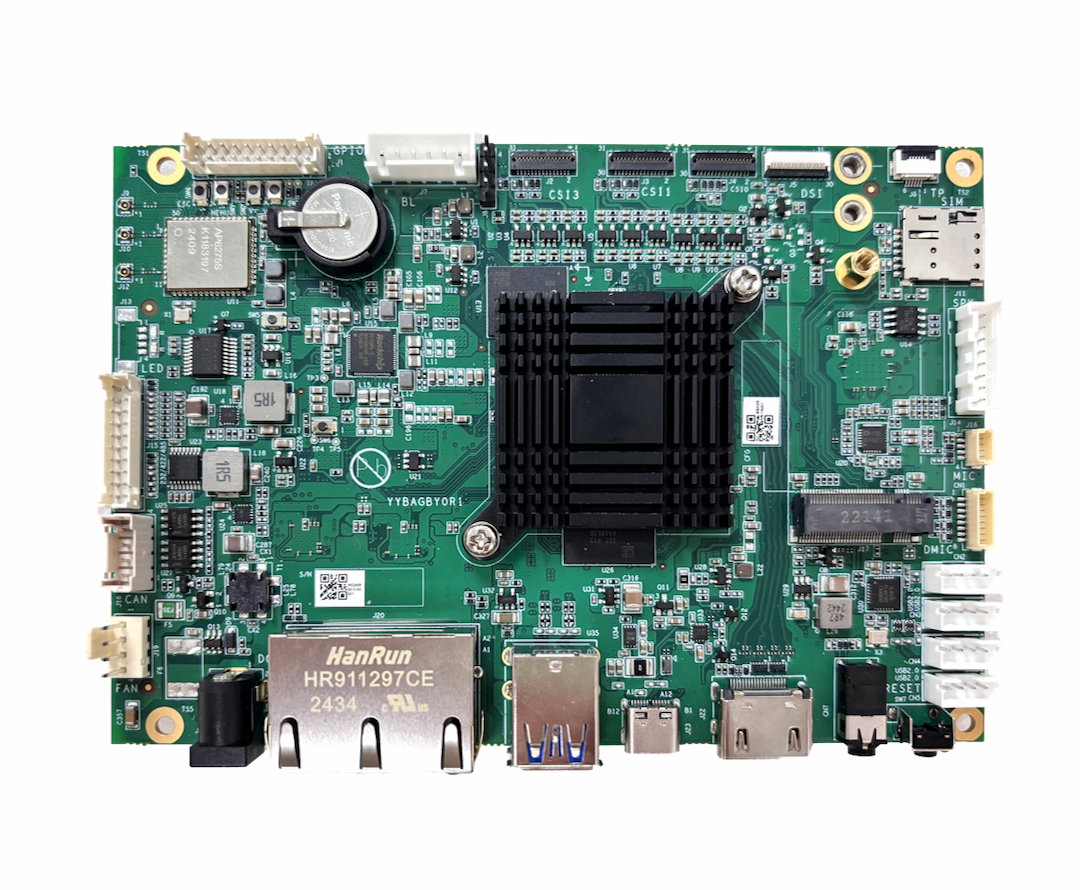

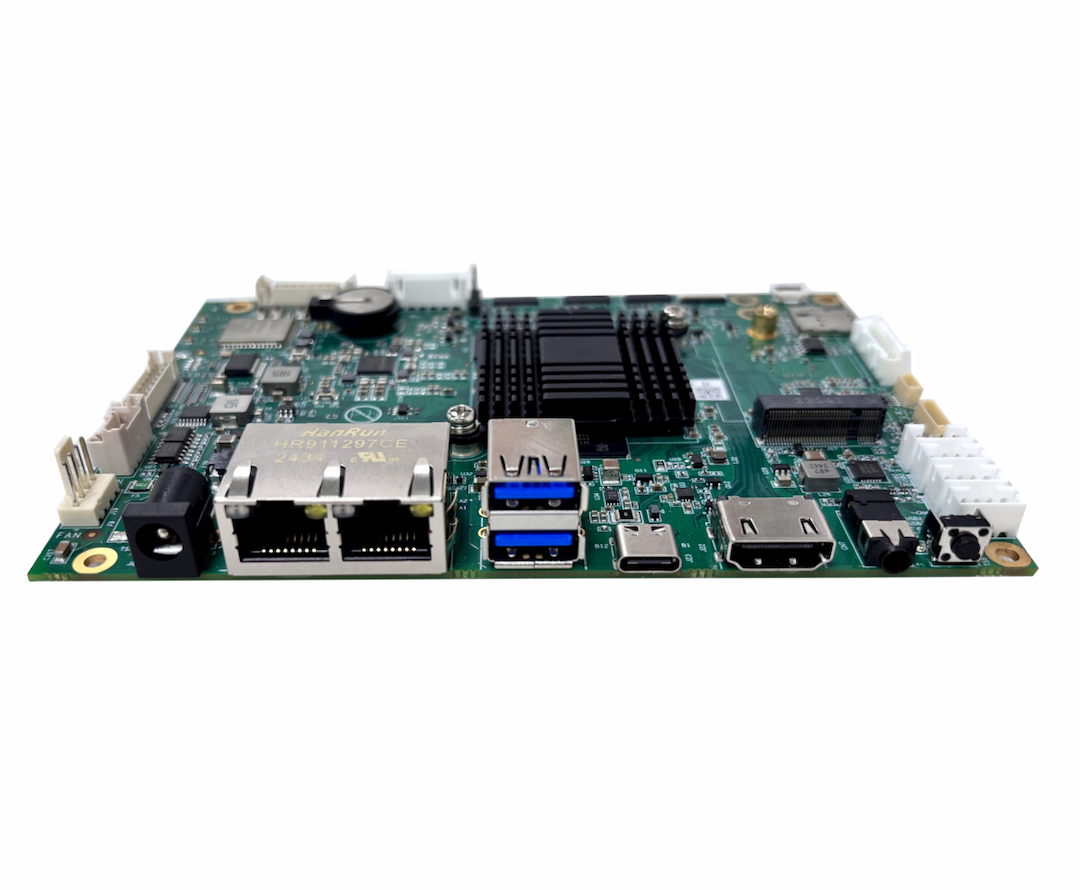

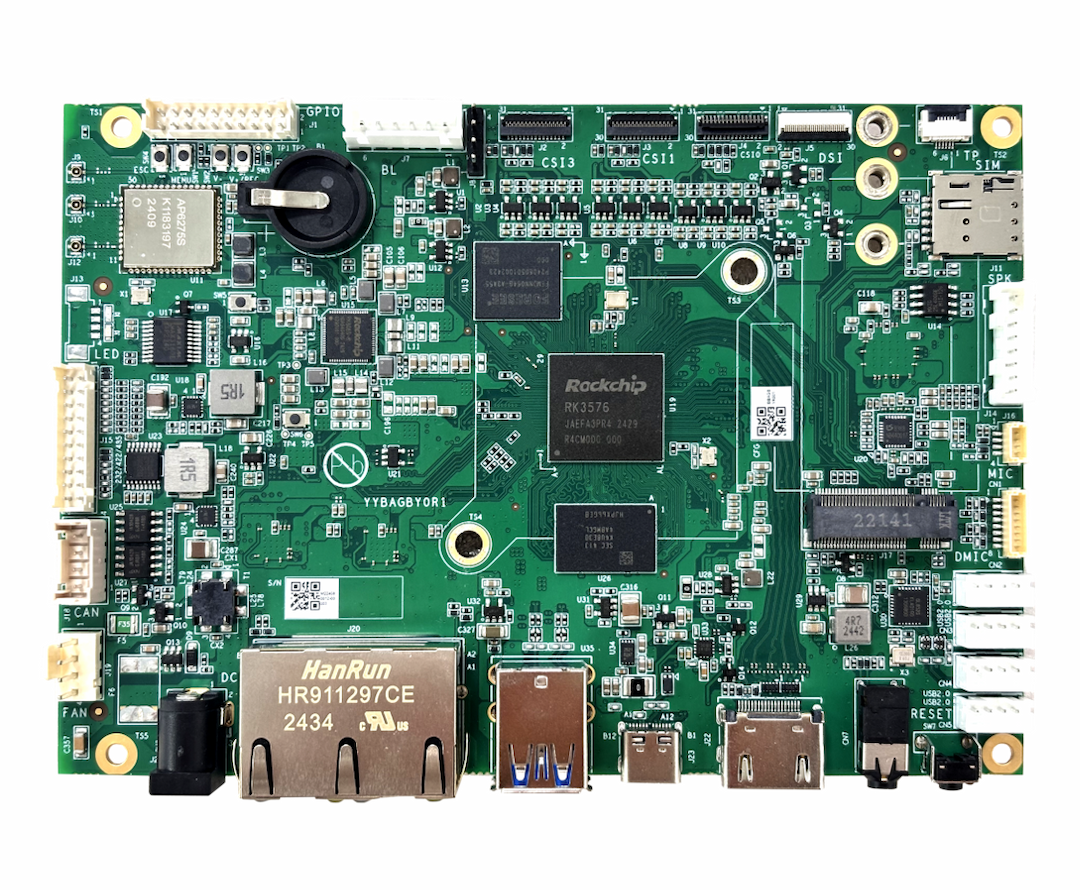

VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer
VT-SBC-3576-L RK3576 Single Board Computer

VT-SBC-3576-L RK3576 Single Board Computer

• Rockchip RK3576 octa-core processor
• Ethernet, Wi-Fi 5, BT, optional 4G/5G
• Supports up to three displays in extended mode
• H.264/H.265 video codec
• Three camera interfaces, 16MP ISP with HDR
• Rich I/O for flexible user expansion
• Powerful AI acceleration & graphic processing
• 3.5-inch form factor

Description
Specifications
Documentation

VT-SBC35-3576-L single board computer comes in a 3.5-inch form factor that is ideal for integration into embedded devices. The board is powered by Rockchip RK3576 high-performance, low-power octa-core processor that integrates four Cortex-A72 cores and four Cortex-A53 cores, running at up to 2.2GHz. This processor also includes a NEON co-processor for efficient SIMD (Single Instruction, Multiple Data) operations. The ARM Mali-G52 MC3 GPU supports OpenGL ES1.1/2.0/3.2, OpenCL 2.1, and Vulkan 1.2 for enhanced 2D/3D graphic acceleration, along with H.264 and H.265 video codec support. VT-SBC35-3576-L features cost-effectiveness and great performance.

The built-in NPU offers 6 TOPS of processing performance, with support for mainstream deep-learning frameworks such as TensorFlow, TF-Lite, Pytorch, Caffe, Onnx NN, Android NN, etc. The board offers three MIPI CSI interfaces for camera use, supporting 16 Megapixel ISP.

For connectivity, VT-SBC35-3576-L offers dual Gigabit Ethernet ports, a combo Wi-Fi 5 and Bluetooth 5.0 module, and optional 4G/5G cellular network for IoT applications. In addition, it provides rich peripherals for application in diverse settings, such as advertising HMIs, cash registers, smart whiteboards, gateways, industry-specific tablets, network video recorders, and Over the Top (OTT) services.

Specifications
Product Name
VT-SBC-3576-L RK3576 ARM-based Single Board Computer
CPU
Rockchip RK3576, quad-core ARM Cortex-A72 + quad-core ARM Cortex-A53 processor, up to 2.2GHz
GPU
ARM Mali G52 MC3 GPU, OpenGL ES1.1/2.0/3.2, OpenCL 2.1, and Vulkan 1.2 supported
NPU
6 TOPS
Memory
4GB 32-bit LPDDR4x
Storage
128GB UFS 2.1 (UFS boot); 64GB eMMC 5.1; Optional: SATA SSD (M.2 B-Key), up to 1TB
Ethernet
2 x RJ45, 10/100/1000Mbps
Wi-Fi & Bluetooth
Wi-Fi 5: IEEE 802.11 a/b/g/n/ac + BT 5.0
Cellular
Optional: 4G/5G (M.2 B-Key)
Display (extended mode)
1 x MIPI DSI, up to 2560 x 1600 @60Hz; 1 x HDMI 2.1, up to 4K @120Hz; 1 x DisplayPort over USB-C, up to 4K @120Hz
Backlight
1 x Backlight connector (for LVDS converted from MIPI DSI)
Video CODEC
8K30 or 4K120 H.264/H.265/VP9/AV2/AVS2 decoder, 4K60 H.264/H.265 encoder
Audio
4 x D-Mic with 2 PDM ports; 1 x A-Mic; 1 x 3.5mm combo audio jack (CTIA standard); 1 x Power amplifier connector
Camera
3 x MIPI CSI-2, ISP: 16MP with HDR
Touch
1 x I²C TP connector
Serial port
2 x RS232; 2 x RS232/485/422
USB
2 x USB 3.0 Type-A; 4 x USB 2.0 connector; 1 x USB 3.0 Type-C (OTG, DisplayPort 1.4)
CAN
2 x CAN
GPIO
1 x GPIO header, including 1 x SPI, 1 x UART, 1 x I²C, 2 x GPIO
Fan
1 x PWM fan connector (12V)
UART
1 x Debug UART (3.3V)
SIM
1 x Nano SIM slot
Antenna
2 x Wi-Fi antenna connector (IPEX-4); 1 x Bluetooth antenna connector (IPEX-4)
RTC & WDT
Supported
M.2 slot
1 x M.2 B-Key (2260, SATA/ PCIe 2.1 for SSD / 3042, USB 3.0 for 4G / 3052, USB 3.0/PCIe 2.1 for 5G)
Key
1 x Reset key, 1 x MaskROM key, 1 x Power key, 4 x Key (Volume +/-, ESC, Menu)
LED indicator
2 x LED indicator (Red: Power on, Green: Normal operation; user definable)
Input
12V DC;1 x Power jack
Consumption
Typical: 2.4W; Max.: 6W
Operating system
Android 14, Debian 11, Ubuntu 22.04
Dimensions
146mm x 102mm
Temperature
Operating: 0℃~+60℃ (Optional: -40℃~+85℃); Storage: -30℃~+80℃ (Optional: -55℃~+85℃)
Humidity
20%-80% RH (Non-condensing)
Documentation
VT-SBC35-3576-L Single Board Computer Datasheet -V1.5.pdf
VT-SBC35-3576-L Single Board Computer Datasheet
