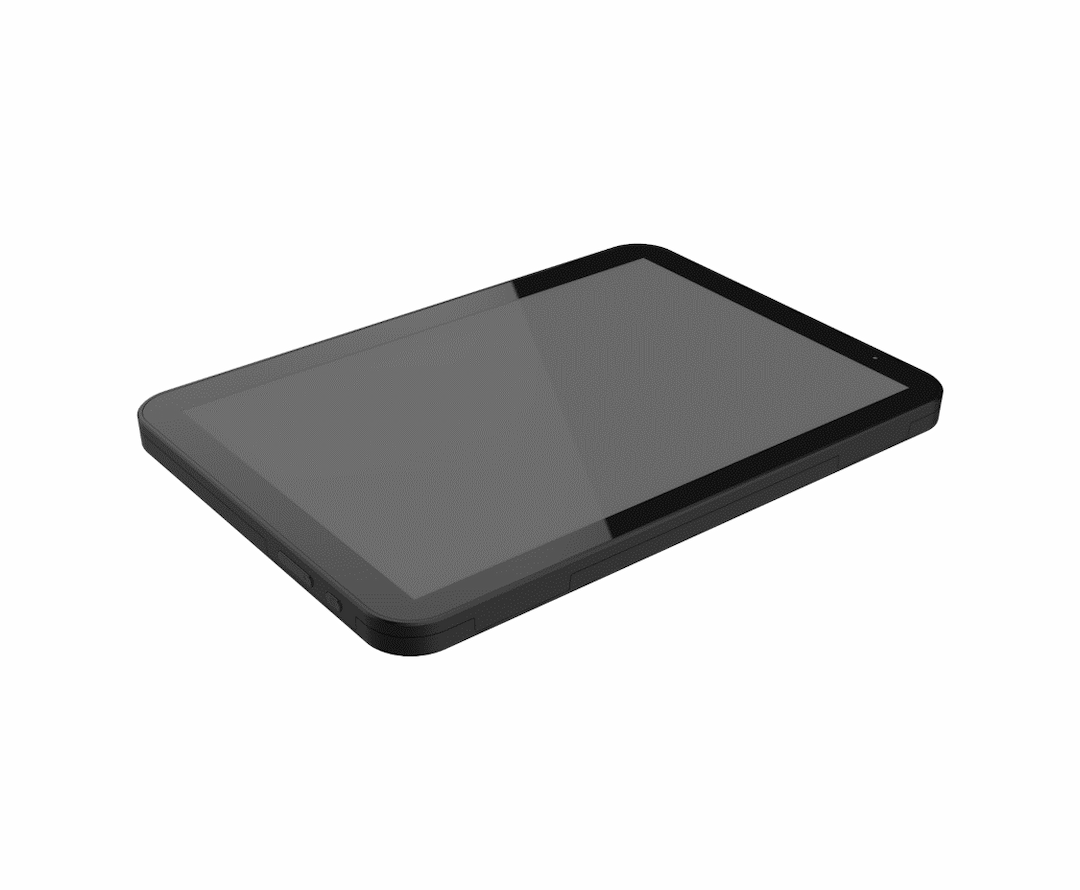

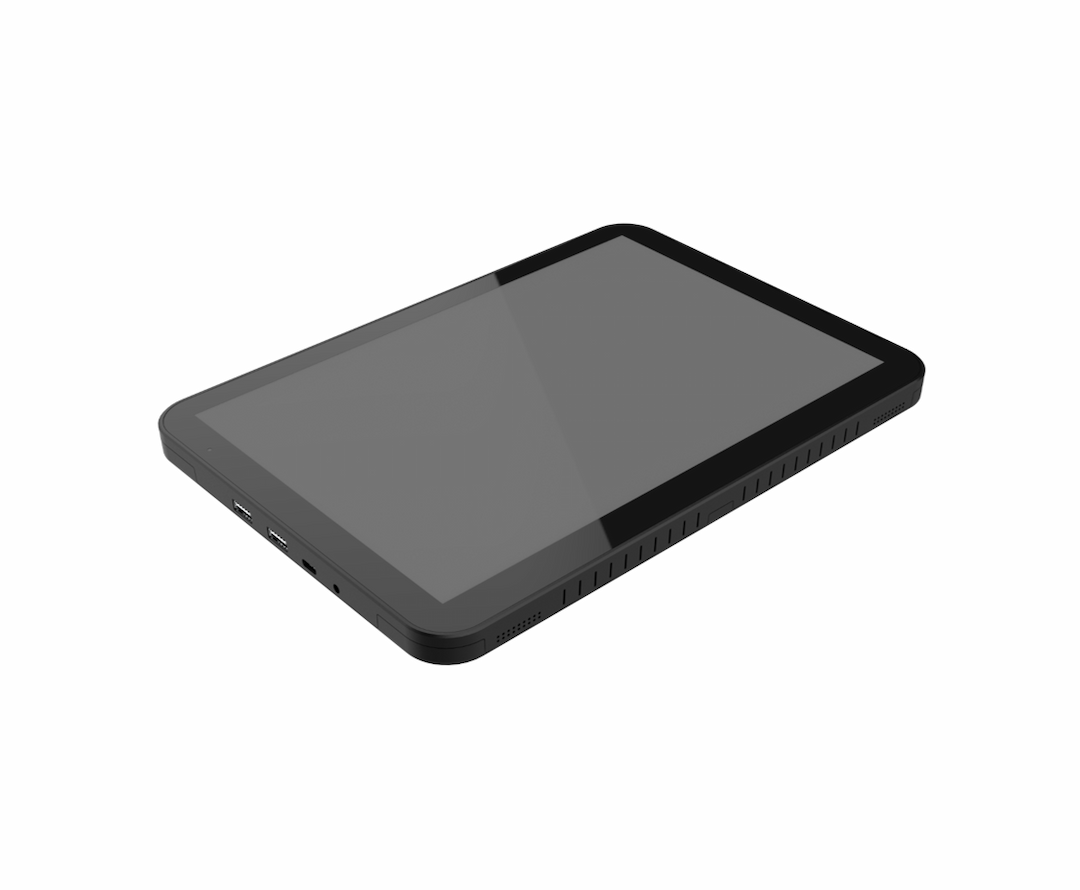

M12 12" Windows General-Purpose Industrial Tablet

M12 12" Windows General-Purpose Industrial Tablet

• Intel® Pentium® N4200 Quad-core processor
• Large storage capacity for faster responsiveness
• 12” 2K IPS display, 250 nits
• 10-Point capacitive touchscreen
• 5000mAh battery for extended runtime
• Windows operating system
• DisplayPort over USB Type-C
• 75mm x 75mm VESA mount for flexible integration

Description

Specifications

Documentation

Featuring a 12-inch LCD display, Vantron M12 industrial tablet is powered by the robust Intel® Pentium® N4200 quad-core processor, ensuring seamless system responsiveness and smooth multitasking. It is equipped with a 10-point PCAP touchscreen, offering a 2160 × 1440 QHD resolution and 250 nits of brightness, delivering an exceptional visual experience.

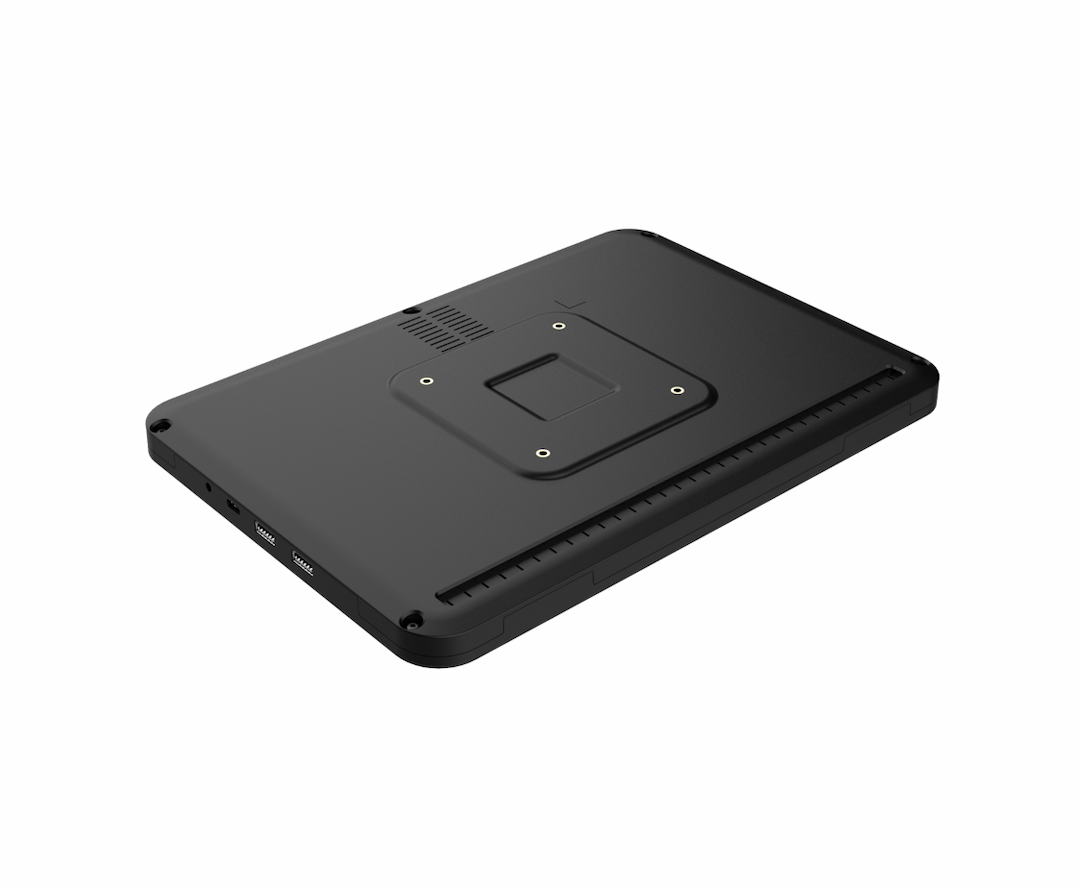

With an ergonomic design, M12 is lightweight and slim to ensure ease of handling. It can be conveniently mounted on support arms via the VESA holes on the back. Additionally, it accommodates a high-capacity 5000mAh battery, significantly enhancing operational endurance.

Built to meet the demands of both commercial and industrial environments, Vantron M12 provides powerful and versatile functionality tailored to diverse user requirements, enabling efficient task completion.

Specifications

Product Name

M12 12" Windows General-purpose Industrial Tablet

CPU

Intel® Pentium® N4200 processor, 4C4T, 1.1GHz (base), 2.5GHz (turbo), 6W TDP; Optional: Intel® Celeron® N3450 processor, 4C4T, 1.1GHz (base), 2.2GHz (turbo), 6W TDP; Optional: Intel® Atom® x5-E3940 Processor, 4C4T, 1.6GHz (base), 1.8GHz (turbo), 9.5W TDP; Optional: Intel® Atom® x7-E3950 Processor, 4C4T, 1.6GHz (base), 2.0GHz (turbo), 12W TDP

GPU

Intel® HD Graphics 505

Memory

8GB LPDDR4

Storage

128GB M.2 SATA SSD (Optional: Max. 512GB)

Wi-Fi & Bluetooth

Wi-Fi IEEE 802.11 a/b/g/n/ac + BT 5.0

Display

12”3:2 IPS LCD; Resolution: 2160 × 1440; Brightness: 250 nits; Color depth: 16.7M; Viewing angle: 80°/80°/85°/85° (U/D/L/R)

10-point PCAP touchscreen; Surface hardness: 6H; Finishing process: Chemical tempering

Audio

2 x 2w speaker

USB

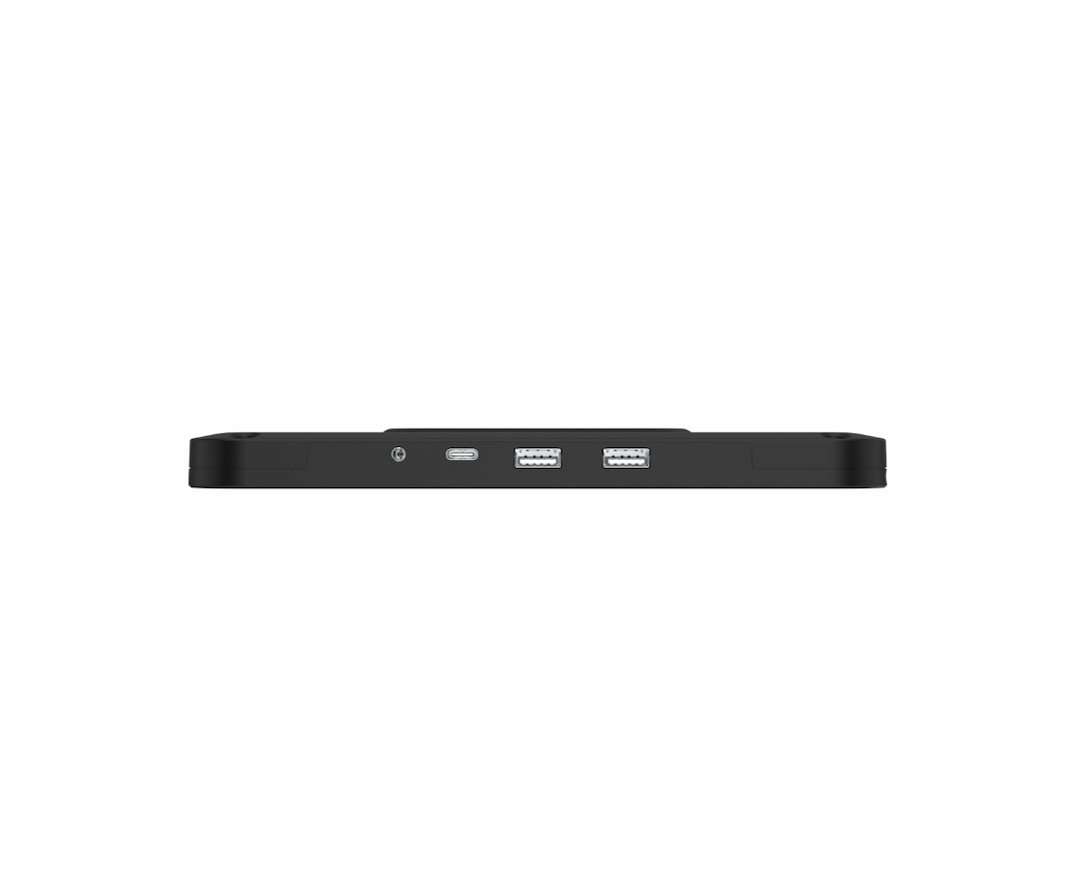

2 x USB 3.0 Type-A; 1 x USB 3.0 Type-C (OTG, power input, DP output)

Button

1 x Power button; 1 x Volume +/- button

LED indicator

1 x LED indicator (Blue: Normal operation; Green: Charging)

RTC

Supported

Watchdog timer

Supported

Security

TPM 2.0

Windows 10 IoT, Windows 11 IoT

Application

SDK available

Input

12V DC; 1 x Power jack; 1 x USB Type-C

Battery

5000mAh/7.4V rechargeable lithium battery

Consumption

15W (Typical)

Casing color

Black

Dimensions

289.94mm x 204.94mm x 18.20mm

Cooling mode

Fanless

Installation

VESA mounting (75mm x 75mm, Screw size: M4 x 6mm)

Weight

1.1kg

Temperature

Operating: 0°C ~+45°C; Storage: -20°C ~+60°C

Humidity

Operating & Storage: 10%~85% RH (Non-condensing)

Certification

FCC, ISED, CE, UL

Documentation

Vantron M12 12“ General-Purpose Industrial Tablet Datasheet
