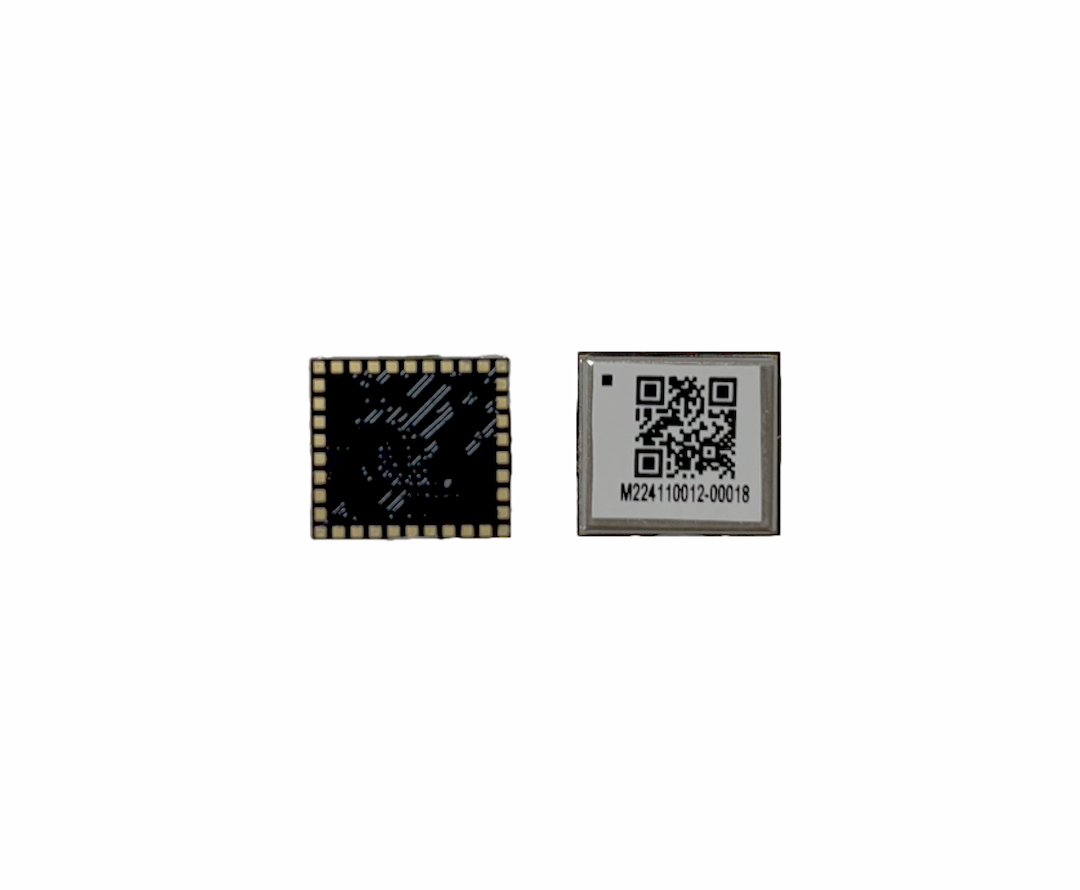

VT-MOB-AH-8108 Wi-Fi HaLow Module
• Powered by MM6108 chipset
• Single-stream data rates up to 32.5 Mbps @8MHz
• Data transmission over further distances
• SDIO/SPI host interface
• M.2 form factor with a USB signal interface
VT-MOB-AH-8108 is an LGA packaged Wi-Fi HaLow module based on Morse Micro’s MM8108 single-chip SoC, which includes radio, PHY, and MAC sections designed to comply with the IEEE 802.11ah standard. The standard provides support for operation in the sub 1GHz license exempt RF bands, providing ultra-long-range and low-power wireless connectivity.
VT-MOB-AH-8108 supports single-stream data rates of up to 43.3 Mbps at the 8MHz bandwidth. It provides USB 2.0, and SDIO 2.0/SPI device interfaces, and its MAC supports both station (STA) and access point (AP) roles. The module is built with robust security features, including WPA3 encryption, and delivers optimal performance, thanks to its integrated power amplifier (PA), low-noise amplifier (LNA), and transmit/receive (T/R) switch.
VT-MOB-AH-8108 can be easily integrated into IoT communication devices to allow users to quickly build their own Wi-Fi HaLow solutions, such as industrial IoT, smart agriculture, and large-scale sensor networks.
