TPC121-EKT 12.1" Windows/Linux All-in-one Panel PC

TPC121-EKT 12.1" Windows/Linux All-in-one Panel PC

• Intel® Elkhart Lake high-performance processor
• 12.1" XGA TFT LCD, 300 nits
• 10-point PCAP touchscreen, gloves compatible
• Windows 10 IoT, Ubuntu 20.04
• Ethernet, Wi-Fi, Bluetooth, optional 4G LTE

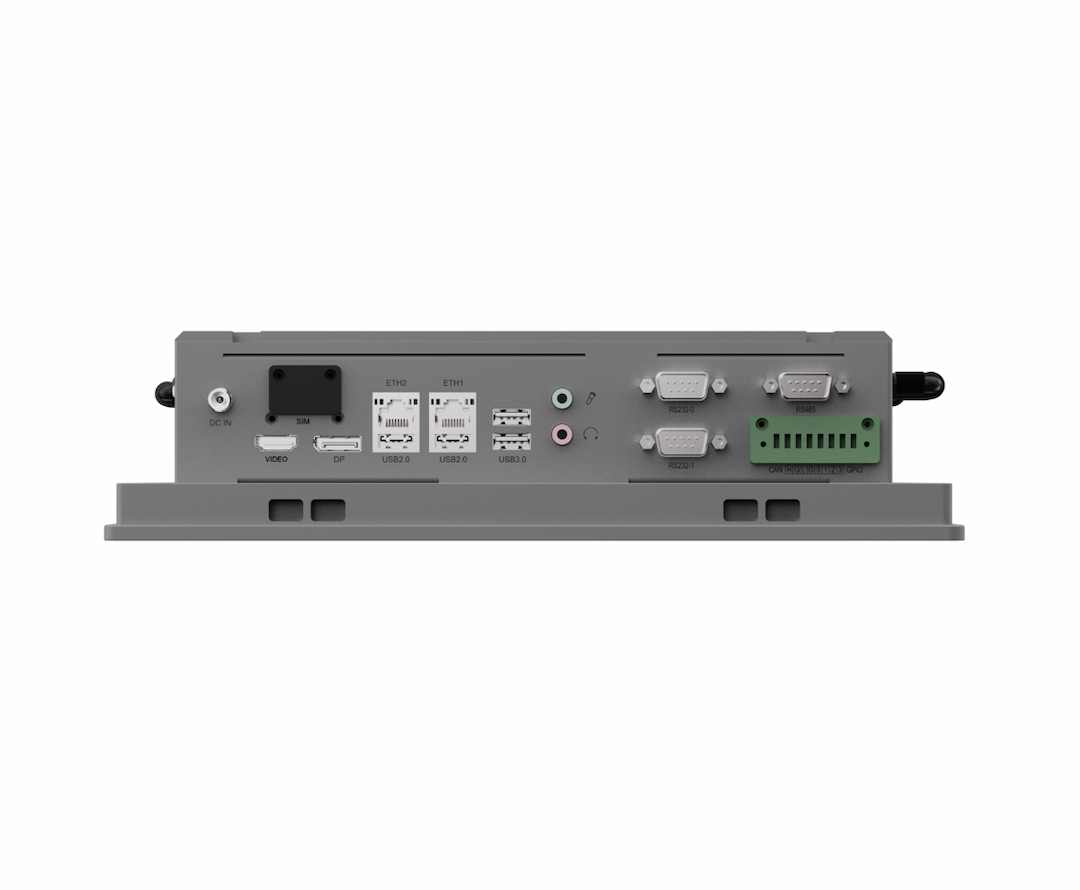

• Rich I/O: RS232, RS485, GPIO, USB, CAN
• Front panel IP65 rated
• Fanless design
• Panel mounting, VESA mounting

Description

Specifications

Resources

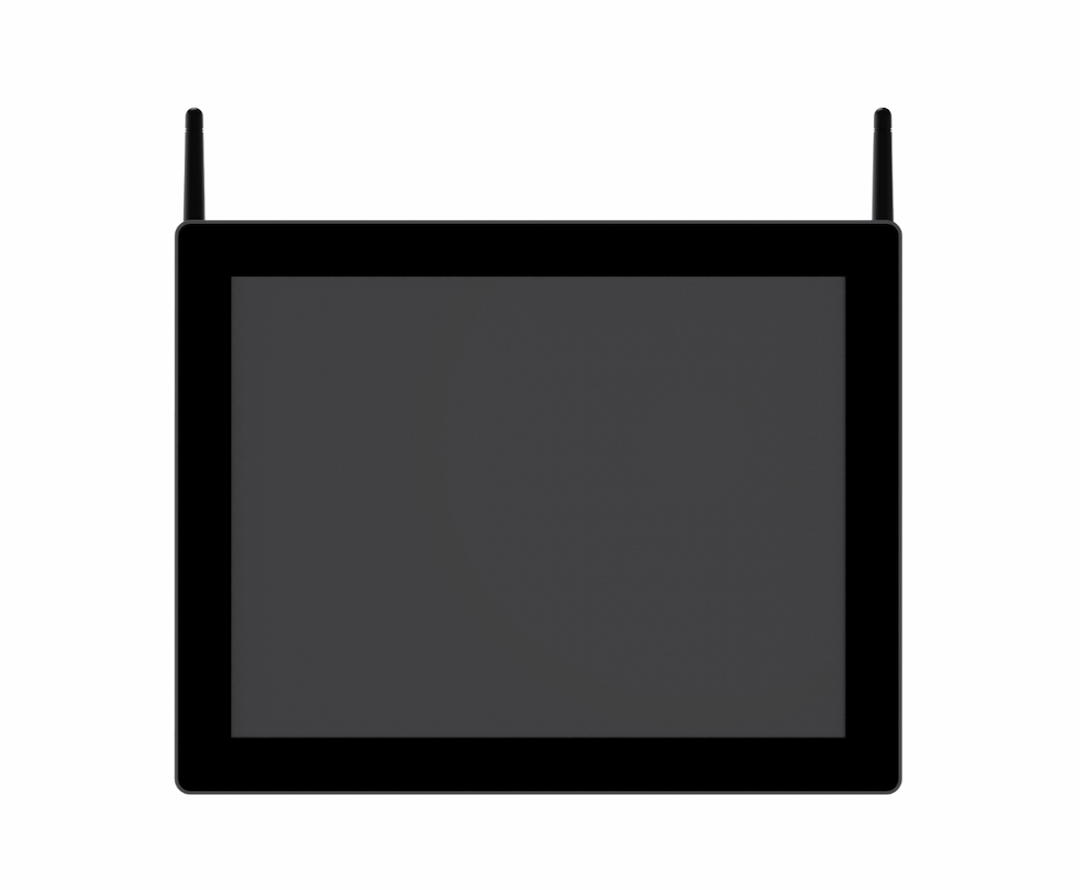

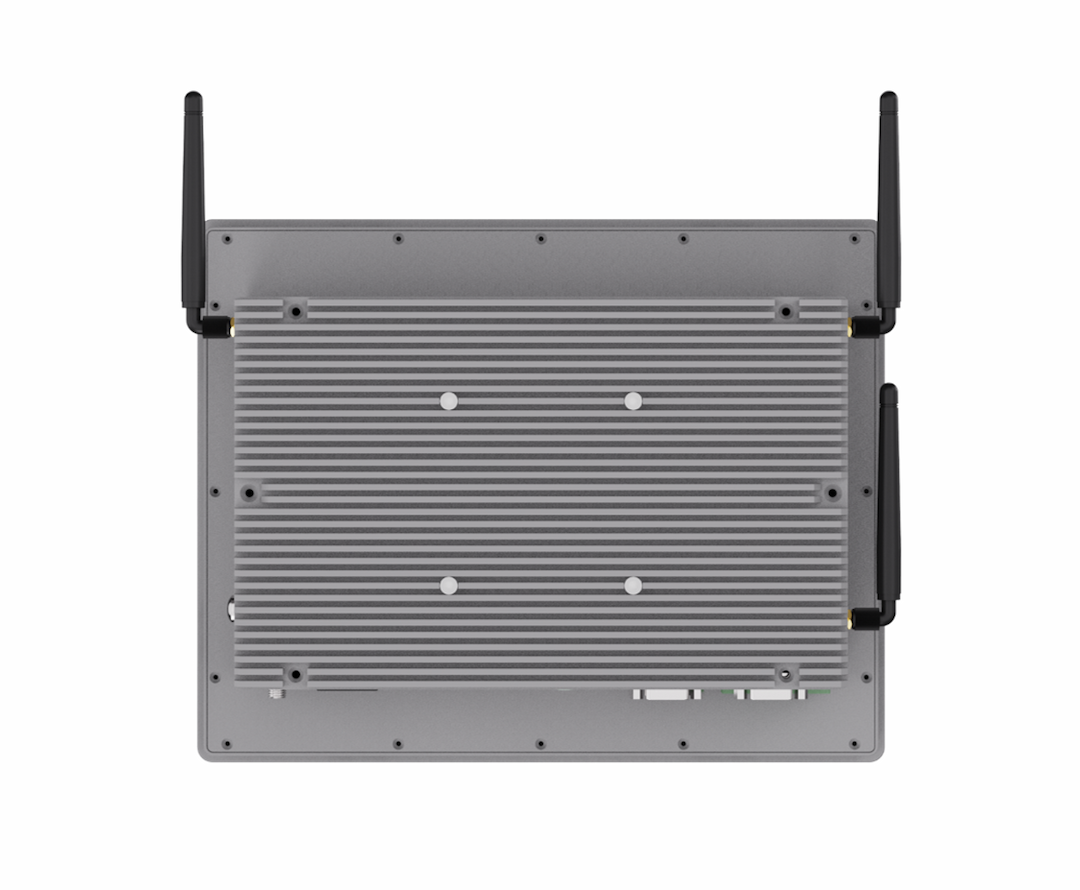

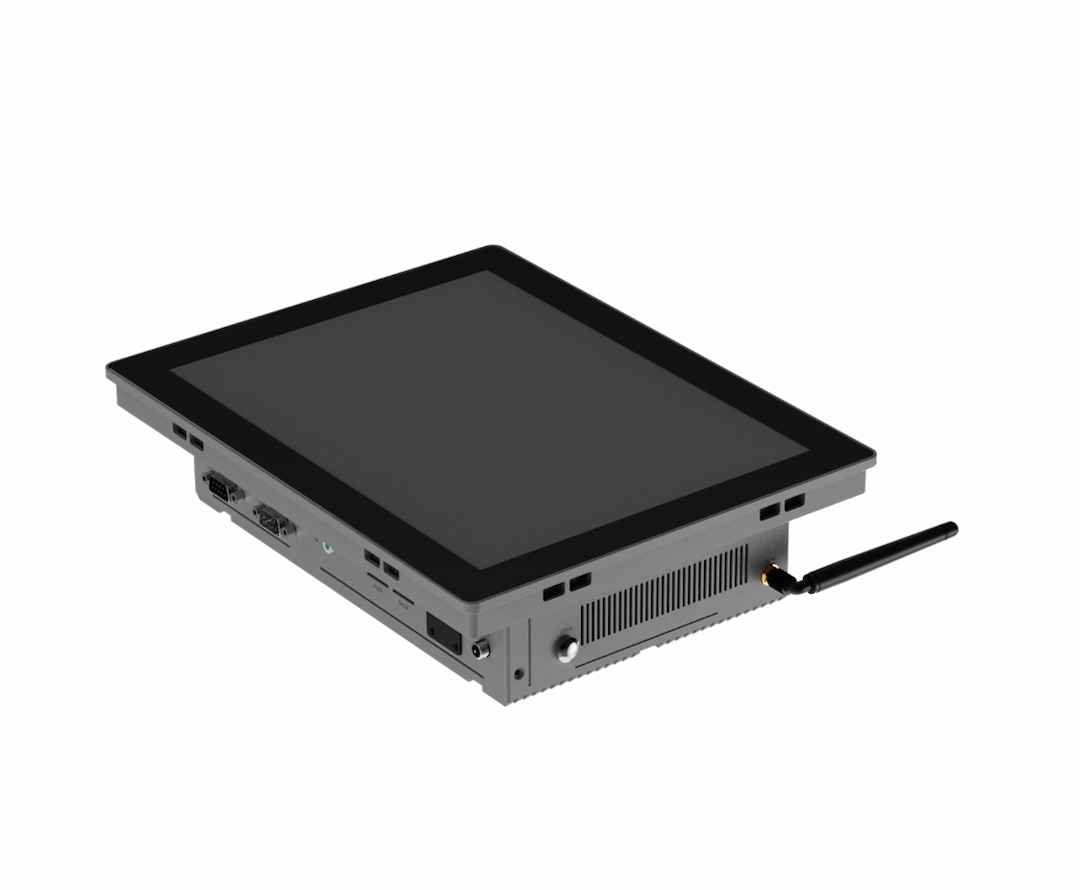

Vantron TPC121-EKT is a 12.1" panel mount all-in-one panel PC. It is powered by an Intel® Elkhart Lake quad-core high-performance processor that offers rich interfaces such as RS232, RS485, GPIO, USB, and CAN, enabling seamless connection with diverse peripherals.

TPC121-EKT features a 10-point PCAP touchscreen monitor with an XGA native resolution and a 4:3 aspect ratio. It offers multiple connectivity options, including dual Ethernet, Wi-Fi, Bluetooth, and optional 4G LTE. The front panel is IP65 rated, making it ideal for industrial control applications such as retail, smart city, and healthcare when panel mounted with the provided clamps. In addition, the 75mm x 75mm VESA pattern provides flexibility for installation in various settings.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC121-EKT 12.1" Windows/Linux X86-based AIO Panel PC

CPU

Intel® Atom® x6425E Processor, 4C4T, 2.0GHz (base), 3.0GHz (turbo), 12W TDP; Intel® Celeron® J6412 Processor, 4C4T, 2.0GHz (base), 2.6GHz (turbo), 10W TDP

Memory

1 x DDR4 SO-DIMM, 3200MT/s, up to 16 GB (Default: 8GB)

Storage

128GB eMMC 5.1 (Optional: Up to 1TB SATA SSD (M.2 B-Key 2242, multiplexed with 4G LTE))

Ethernet

2 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

4G LTE

Optional: CAT 4 (M.2 B-Key 2230, multiplexed with SATA SSD)

Display

12.1-inch TFT LCD

Contrast ratio

800:1

Resolution

1024 x 768 @60Hz

Aspect ratio

4:3

Brightness

300 nits (Typical)

Viewing angle

80/80/85/85 (U/D/L/R)

Extended display

1 x HDMI 2.0b, up to 4K @60Hz; 1 x DP1.4, up to 4K @60Hz

10-point PCAP touchscreen

Surface hardness

Surface treatment

Anti-fingerprint (Optional: Anti-glare)

Cover lens

IK07 rated

Light transmittance ratio

>85%

Touch input

Finger, stylus, gloves (Conductive or ≤1mm thick non-conductive)

Audio

1 x 3.5mm microphone jack, 1 x 3.5mm 3-pole headphone jack

USB

2 x USB 2.0 Type-A, 2 x USB 3.0 Type-A

Serial port

2 x RS232, DB9; 1 x RS232/485/422, DB9

CAN

Atom® x6425E: 1 x CAN, Celeron®J6412: Optional 1 x CAN

GPIO

4 x GPIO (3.3V)

Antenna

RF0: 4G LTE (dedicated), RF1 & RF2: Wi-Fi & BT (default), one is switched for 4G LTE use when 4G is enabled

SIM slot

1 x Micro SIM slot

RTC

Supported

Button

1 x Power button

LED indicator

1 x Power indicator (Green: Normal operation, Red: Standby)

Windows 10 IoT, Ubuntu 20.04

Display orientation

Landscape mode by default (Portrait mode supported)

Power input

12V~36V DC, 1 x Power jack

Power consumption

Typical: 19W, Max.: 29W

Dimensions

292mm x 230.5mm x 72.4mm

Installation

VESA mounting (75mm x 75mm, M4 x 6mm), panel mounting

Weight

3.2kg

IP rating

Front panel IP65 rated

Heat dissipation

Fanless

Temperature

Operating: -20°C ~ +60°C, storage: -30°C ~ +80°C

Humidity

10%-85% RH (Non-condensing)

Certification

FCC, CE, ESD: ±4KV (Contact), ±8KV (Air)

MTBF

50,000 hours

Warranty

2 years
