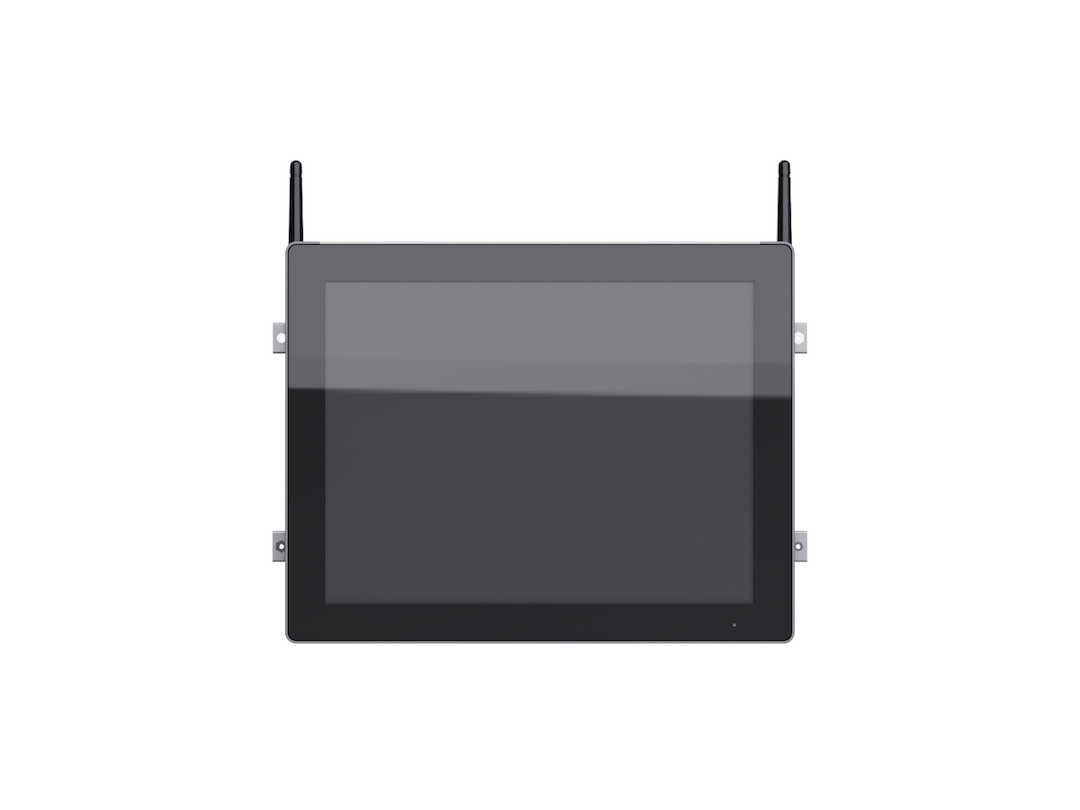

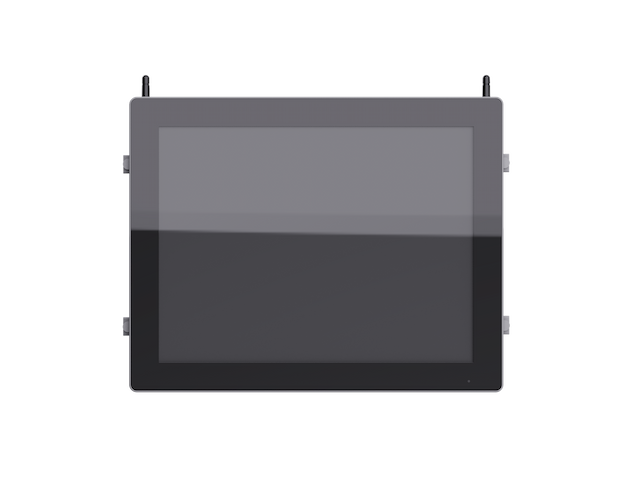

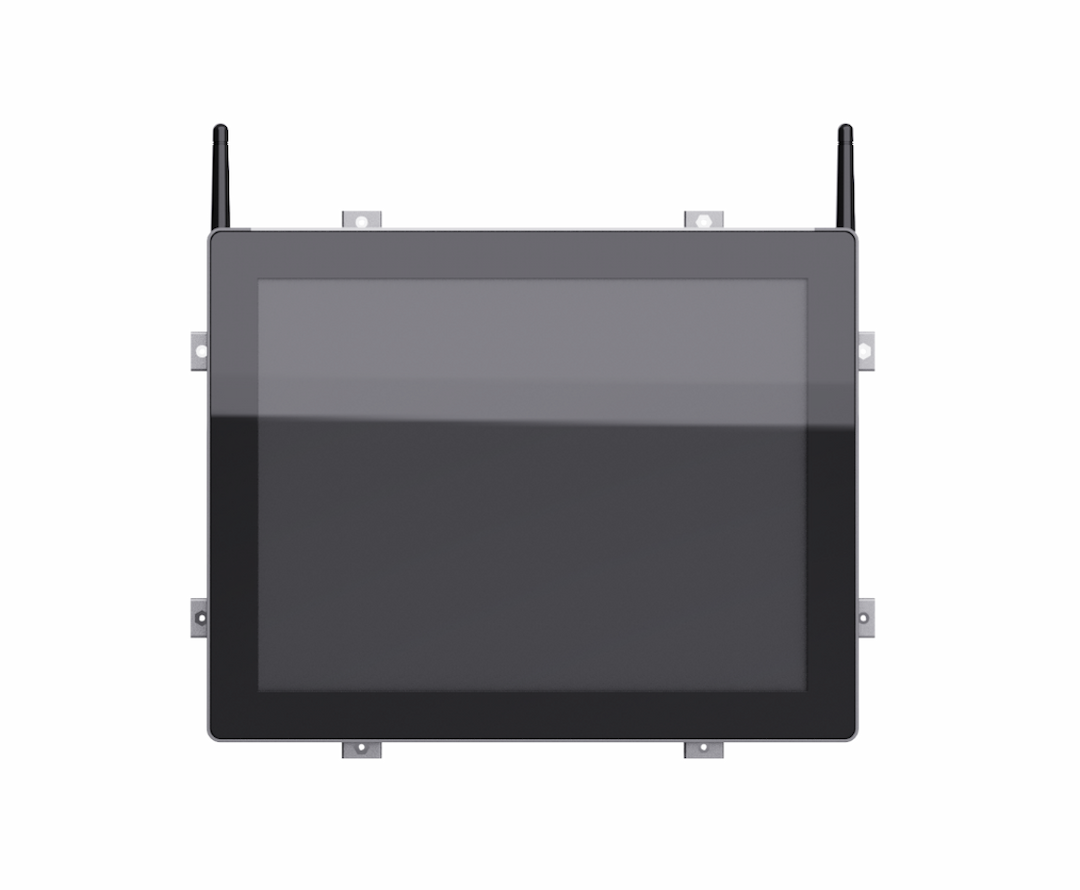

TPC150-3568 15" Android/Linux All-in-one Panel PC

TPC150-3568 15" Android/Linux All-in-one Panel PC

• Quad-core high-performance processor
• 15" XGA TFT LCD, 300 nits
• 10-point PCAP touchscreen, gloves compatible
• Android 11 system, optional Ubuntu 20.04
• Ethernet, Wi-Fi, Bluetooth, optional 4G LTE
• Rich I/Os, including RS232, RS485, CAN, USB
• Front panel IP65 rated
• Fanless design
• Panel mount, VESA mount

Description

Specifications

Resources

Vantron TPC150-3568 is a 15" panel mount all-in-one panel PC. It is powered by a quad-core high-performance processor that offers rich interfaces such as RS232, RS485, CAN, and USB to enable seamless connection with diverse peripherals.

TPC150-3568 features a 10-point PCAP touchscreen monitor with an XGA resolution and a 4:3 aspect ratio. It offers multiple connectivity options, including dual Ethernet, Wi-Fi, Bluetooth, and optional 4G LTE. The front panel is IP65 rated, making it ideal for industrial control applications when panel mounted with the provided clamps. In addition, the 75mm x 75mm VESA pattern provides it with flexibility for installation in various settings.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC150-3568 15" Android/Linux ARM-based AIO Panel PC

CPU

Quad-core ARM Cortex A55 processor, 2.0GHz (Max.)

Memory

4GB

Storage

32GB

Ethernet

2 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

4G LTE

Optional: CAT 4

Display

15-inch TFT LCD

Contrast ratio

800:1

Resolution

1024 x 768 @60Hz

Aspect ratio

4:3

Brightness

300 nits (Typical)

Viewing angle

80/80/85/85 (U/D/L/R)

Extended display

1 x HDMI, up to 4K @30Hz

10-point PCAP touchscreen

Surface hardness

Surface treatment

Anti-fingerprint (Optional: Anti-glare, anti-reflection)

Cover lens

IK07 rated

Light transmittance ratio

> 85%

Touch input

Finger, stylus, gloves (Conductive or ≤1mm thick non-conductive)

Audio

1 x 3.5mm combo audio jack (CTIA standard)

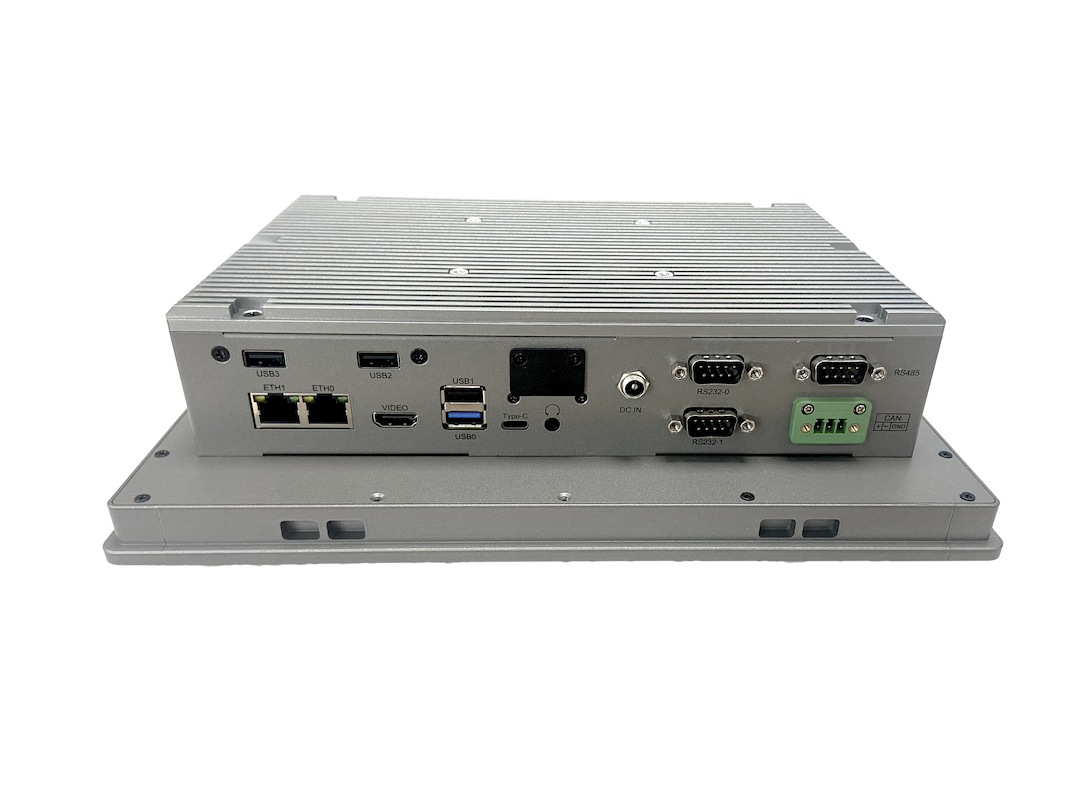

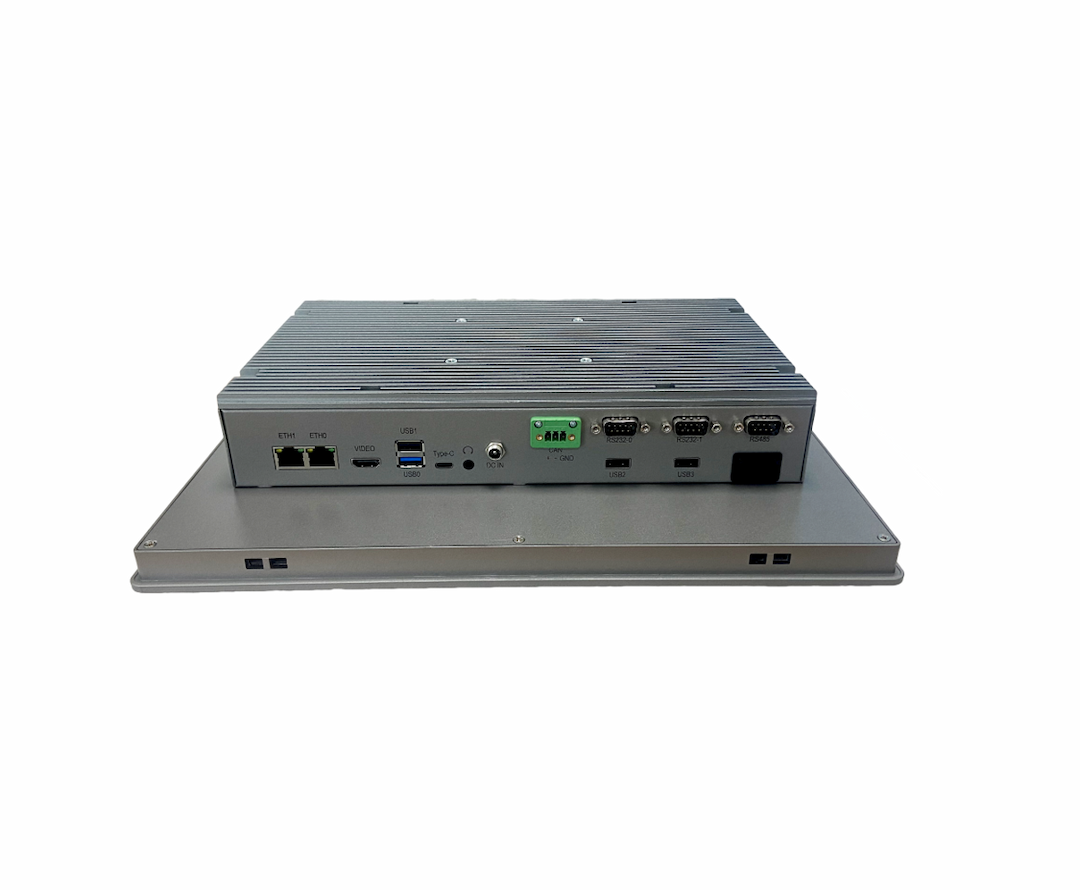

USB

3 x USB 2.0 Type-A, 1 x USB 3.0 Type-A, 1 x USB 2.0 Type-C(OTG)

Serial port

2 x RS232, DB9 (9600, 8N1); 1 x RS485, DB9 (9600, 8N1)

CAN

1 x CAN, with transmitter (Default bitrate: 20kHz)

Antenna

RF0: Wi-Fi & Bluetooth antenna, RF1 and RF2: 4G LTE antenna

SIM slot

1 x Micro SIM slot

RTC

Supported

WDT

Supported

Button

1 x Power button

LED indicator

1 x LED indicator (Green: Normal operation, Red: Standby)

Android 11 (Optional: Ubuntu 20.04)

Time calibration

NTP server

Display orientation

Landscape mode by default (Portrait mode supported)

Device management

BlueSphere MDM (Optional for Android version)

Power input

12V DC, 1 x Power jack

Consumption

Typical: 16.5W, Max.: 27W

Dimensions

361.65mm x 285.65mm x72.7mm

Installation

VESA mounting (75mm x 75mm, M4 x 6mm), panel mounting

Weight

4.2kg

IP rating

Front panel IP65 rated

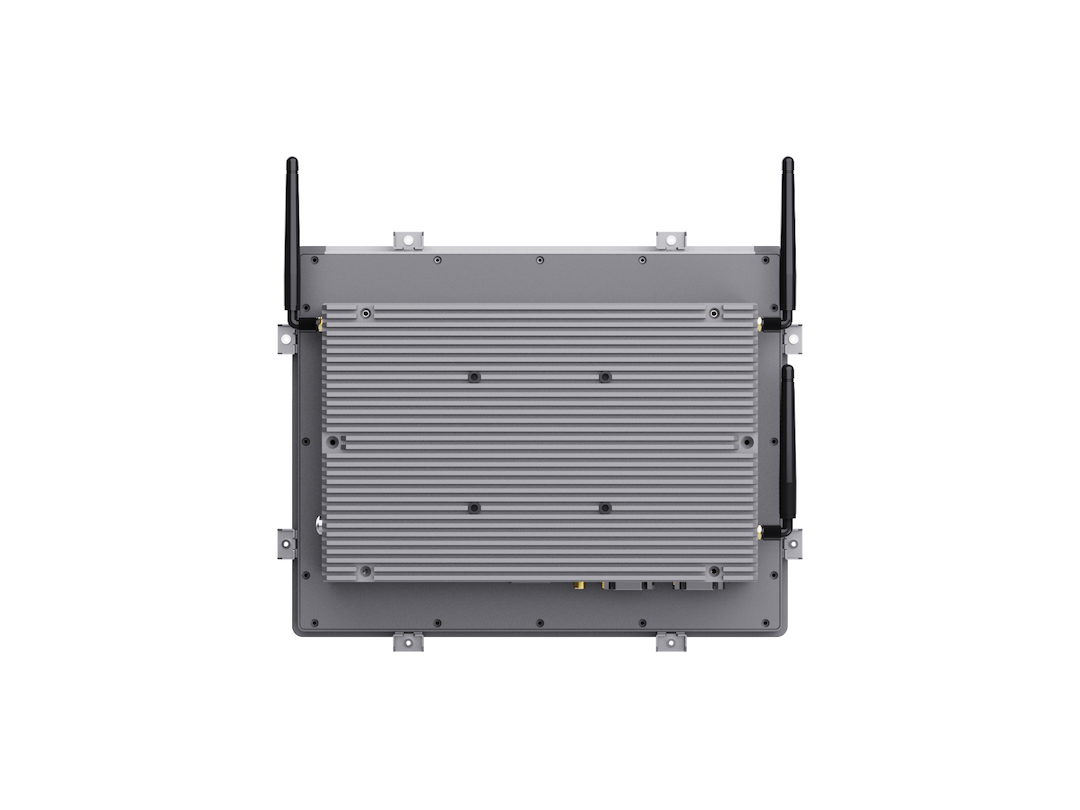

Heat dissipation

Fanless

Temperature

Operating: 0°C~+60°C, storage: -20°C~+80°C

Humidity

Operating: 5%-95% RH (Non-condensing), storage: 10%~90% RH (Non-condensing)

Certification

FCC, CE, ESD: ±4KV (Contact), ±8KV (Air)

MTBF

50,000 hours

Warranty

2 years
