Vantron TPC121-RK3568 12.1” All-in-one Panel PC Datasheet

• RK3568 quad-core high-performance processor • 12.1” XGA TFT LCD, 300 nits • 10-point PCAP touch screen, gloves compatible • Android 11 system, optional Ubuntu 20.04 • Ethernet, Wi-F, Bluetooth, optional 4G LTE • Rich I/Os, including RS232, RS485, CAN, USB • Front panel IP65 rated • Fanless design • Panel mount, VESA mount

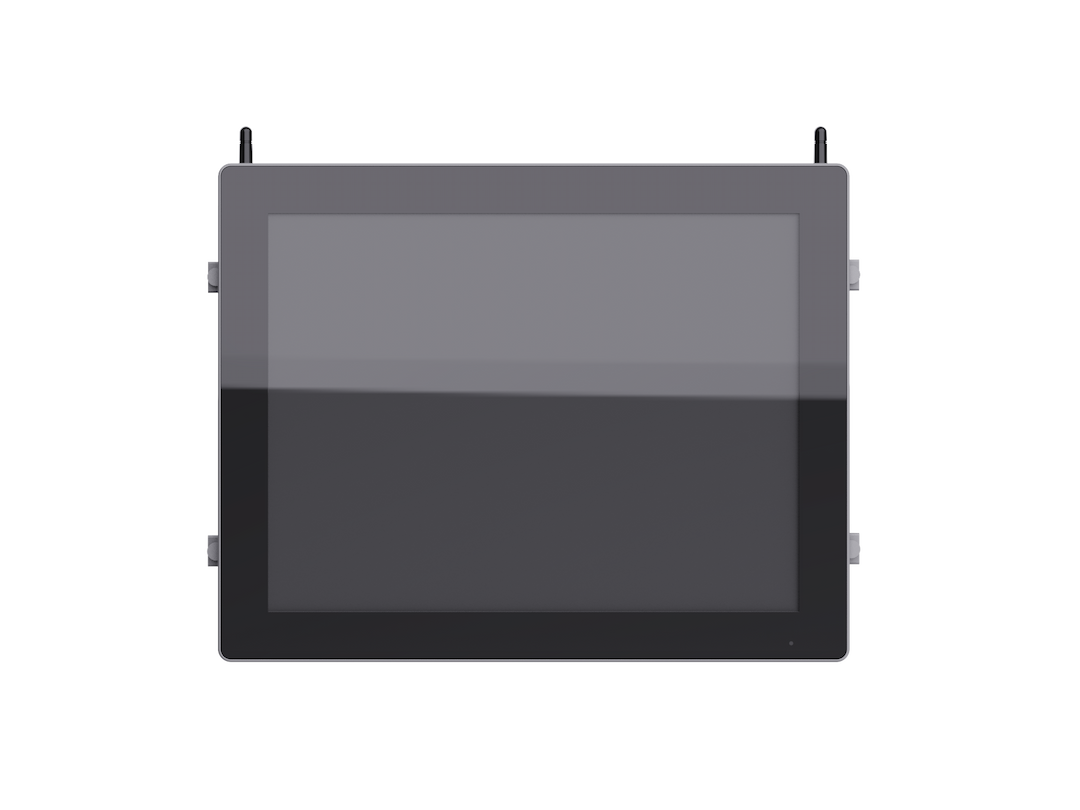

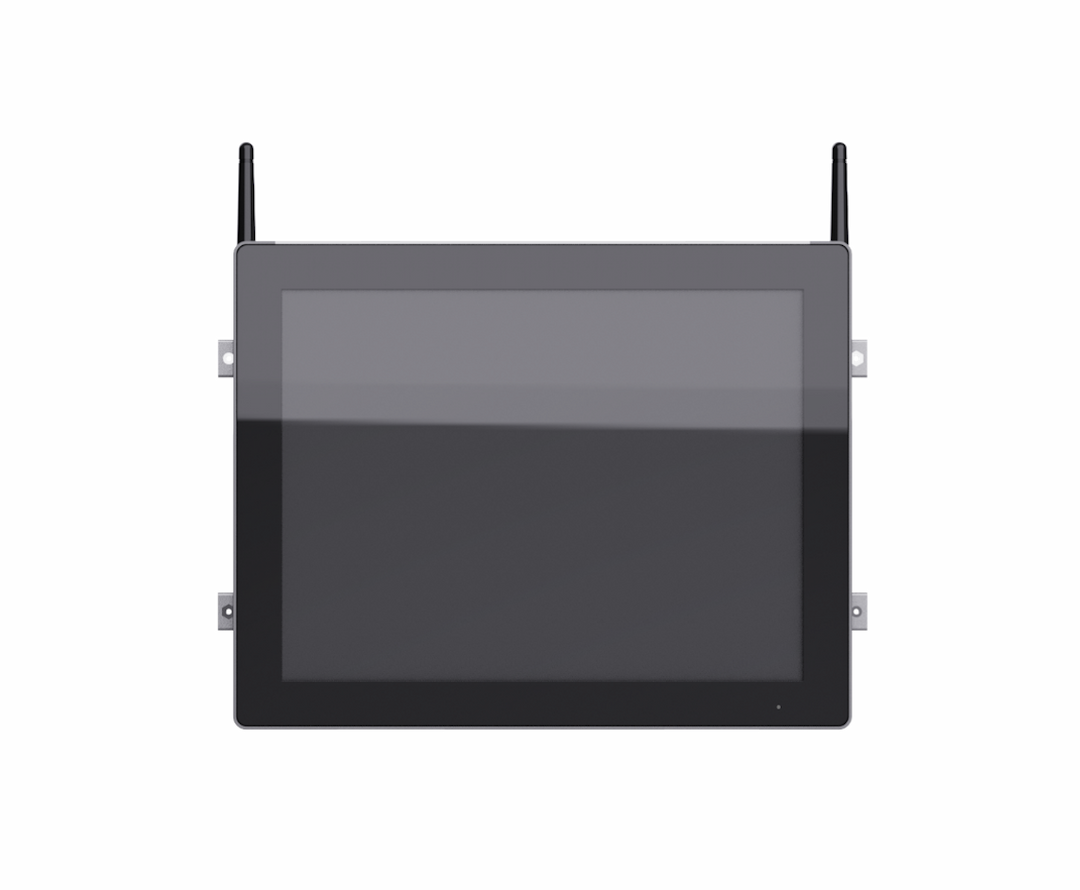

TPC121-RK3568 12.1" Android/Linux  All-in-one Panel PC front.png

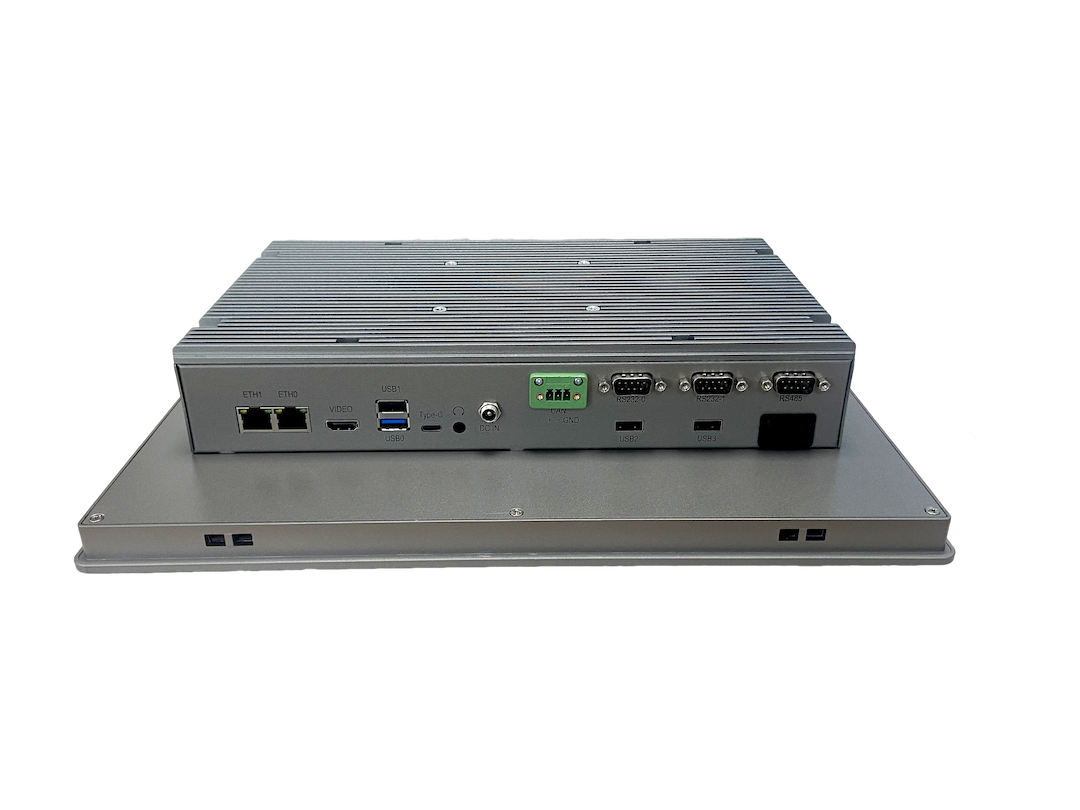

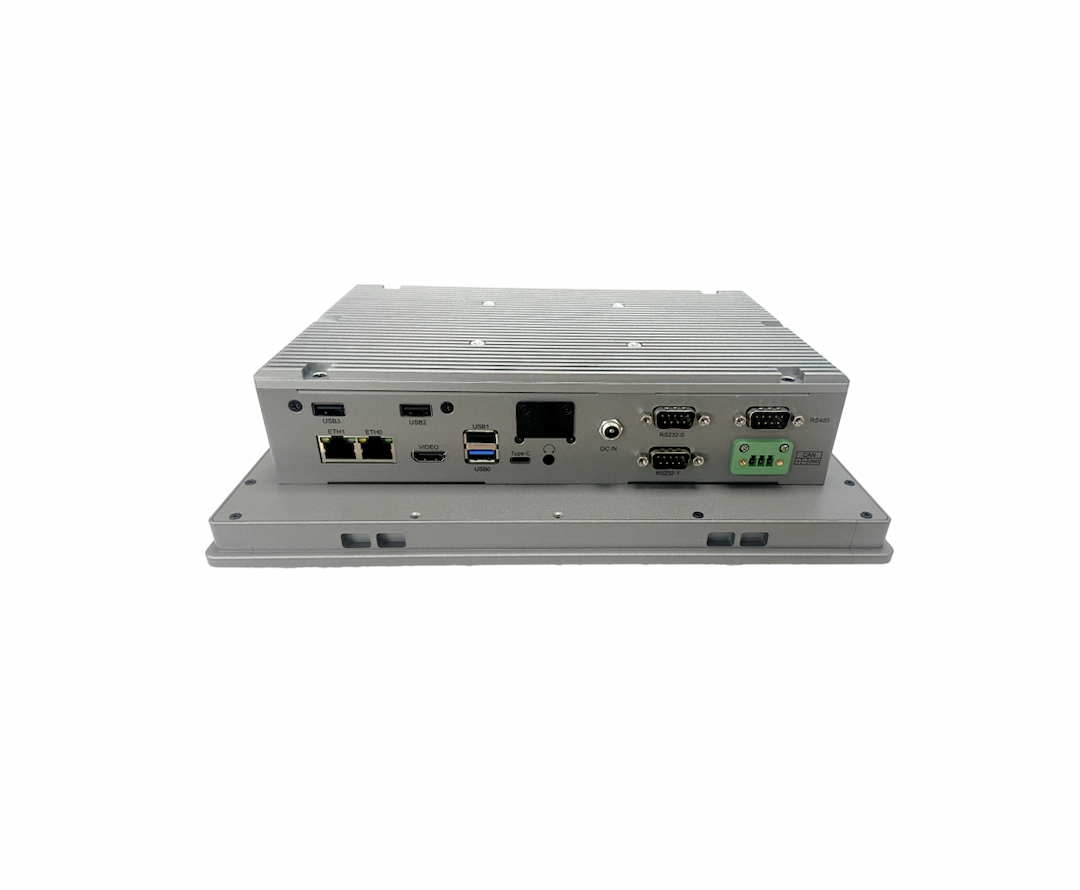

TPC121-RK3568 12.1" Android/Linux  All-in-one Panel PC back.png

TPC121-RK3568 12.1" Android/Linux  All-in-one Panel PC

Rockchip RK3568, Quad-core ARM Cortex A55 processor, 2.0GHz (Max.)

12.1-inch TFT LCD; Contrast ratio: 800:1; Resolution: 1024x768 @60Hz; Aspect ratio: 4:3; Brightness: 300nits; Viewing angle: 80/80/85/85(U/D/L/R)

10-point PCAP touch screen; Surface hardness: 6H; Surface treatment: Anti-fingerprint (AF); Cover lens: At least IK07rated; Optional: Anti-glare (AG), anti-reflection (AR); Light transmittance ratio: > 85%

3x USB 2.0 Type-A; 1x USB 3.0 Type-A; 1 x USB 2.0 Type-C(OTG)

2 x RS232, DB9 (9600, 8N1); 1 x RS485, DB9 (9600, 8N1)

1 x CAN, with transmitter (default bitrate: 20kHz)

RF0: Wi-Fi & Bluetooth antenna; RF1, RF2: 4G LTE antenna

1 x LED indicator (Green: device running; Red: device standby)

Landscape mode by default (Portrait mode supported)

BlueSphere MDM (Optional for Android version)

Android: Max.: 11.5W; Idle: 10W;
Ubuntu: Max.: 14W; Idle: 10.5W

VESA mount (75mm x 75mm, M4 x 6mm); Panel mount

Operating:0°C~+60°C; Storage: -20°C~+80°C

Operating: 5%-95% RH (Non-condensing); Storage: 10%~90% RH(Non-condensing)

CCC, FCC, CE; ESD: ±4KV (Contact), ±8KV (Air)
