TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor
TMR320 32" Curved Touchscreen Monitor

TMR320 32" Curved Touchscreen Monitor

• QHD display with expansive visual
• PCAP technology, gloved touch compatible
• 1500R curvature, 300 nits brightness
• C-shaped, landscape & portrait modes supported
• Ergonomics design with improved ease of use
• VESA mount, allowing for flexible installation
• Excellent longevity (50,000H MTBF)
• Three-year warranty

Description
Specifications
Documentation

Vantron offers a variety of open-frame and closed-frame curved touchscreen monitors. Unlike flat touchscreen monitors, curved models provide a stylish aesthetic that enhances the visual appeal of devices. The gentle curvature of these monitors creates a more immersive viewing experience by extending into the viewer’s peripheral vision. Additionally, curved touchscreen monitors help reduce glare and reflections from ambient light, improving visibility across different lighting conditions.

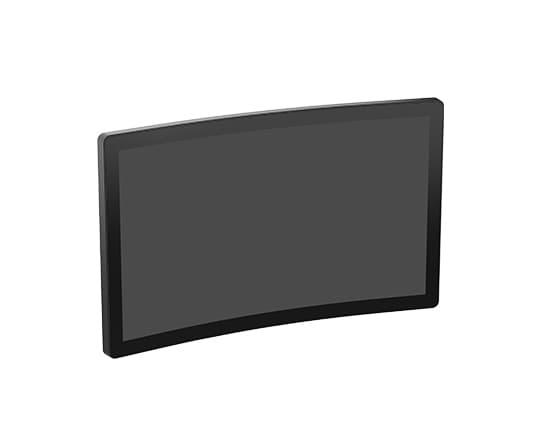

TMR320 is an integrated 32-inch curved touchscreen monitor that delivers optimal visual effects and seamless touch experience. It features a 1500R curvature, a 16:9 aspect ratio, and 300 nits of brightness, with a resolution up to 2560 x 1440 at 60Hz.  Its C-shaped design prioritizes user-centered ergonomics, minimizing fatigue during human-machine interaction and providing exceptional viewing experience.

For specific application scenarios, the open-frame design is an excellent choice for achieving a sleek appearance when installed in cabinets. The closed-frame option allows the monitor to float above the cabinet surface through VESA mounting, enhancing  the overall  appearance. TMR320 is particularly well-suited for  applications such as gaming and entertainment, self-service terminals, and digital signage.

Specifications
Product Name
TMR320 32" Curved Touchscreen Monitor
Diagonal size
32" (LED-backlit LCD monitor)
Active area
698.4mm x 392.9mm
Aspect ratio
16:9
Curvature
1500R
Resolution
2560 x 1440 @60Hz
Brightness
300 nits
Contrast ratio
3000:1
Number of colors
16.7M
Response time
20ms
Viewing angle
89/89/89/89 (U/D/L/R)
Touch point
10-point PCAP touch screen
Touch control
Finger, stylus pen, touchwith gloves
Cover lens
IK07 rated
Surface treatment
Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection); Hardness: 6H
Touch communication interface
USB Type-A
Video interface
1 x DP; 2 x HDMI
Audio interface
1 x3.5mmLine in (Optional); 2 x Speaker (Optional)
Dimensions
765.34mm x 459mm x 60mm
Gross weight
18kg
Installation
VESA mount (300mm x 200mm)
Display rotation
OSD lockout / OSD rotation
OSD
Keys: Menu, Up, Down, Auto, Power; Options: brightness, contrast, language, color temp., video interface...
Indicator
1 x RGB indicator (Red: standby; Green: working)
Power input
12V 5A DC
Power consumption
Typical: 40W
Temperature
Operating: 0°C~+40°C; Storage: -20°C~+60°C
Humidity
20%~80% RH (non-condensing)
MTBF
50,000 hours
Warranty
3 years
ESD
±4KV (contact) and ±8KV (air)
Certification
CCC, FCC, CE
Documentation
Vantron TMR320 32“ Curved Touchscreen Monitor Datasheet - V1.5.pdf
Vantron TMR320 32“ Curved Touchscreen Monitor Datasheet
