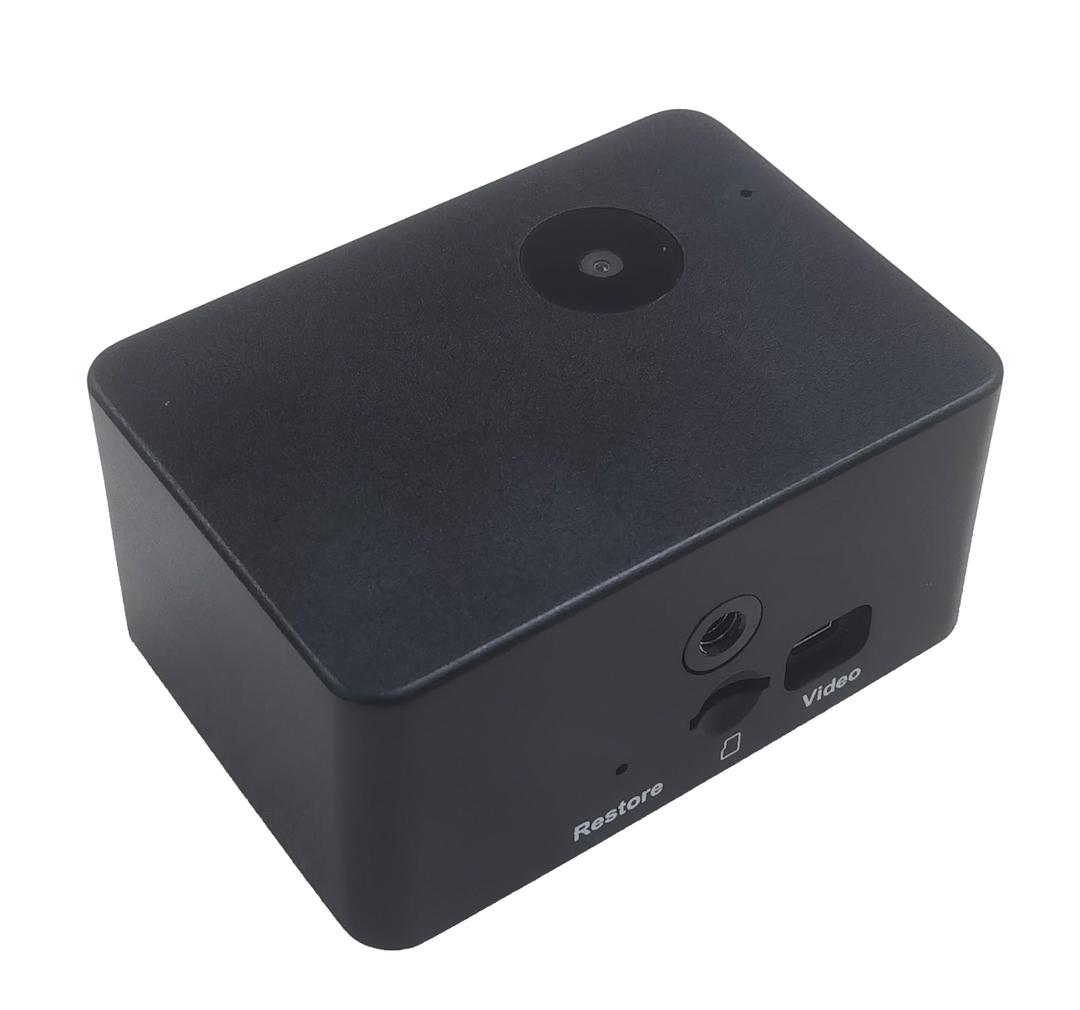

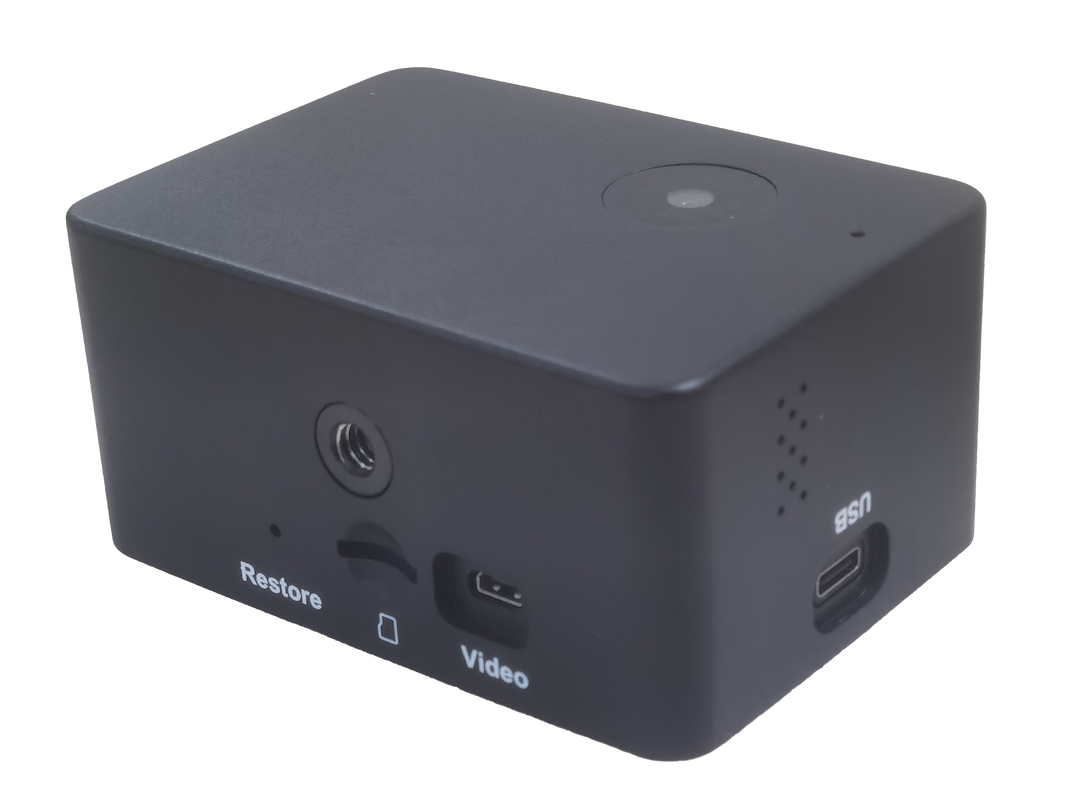

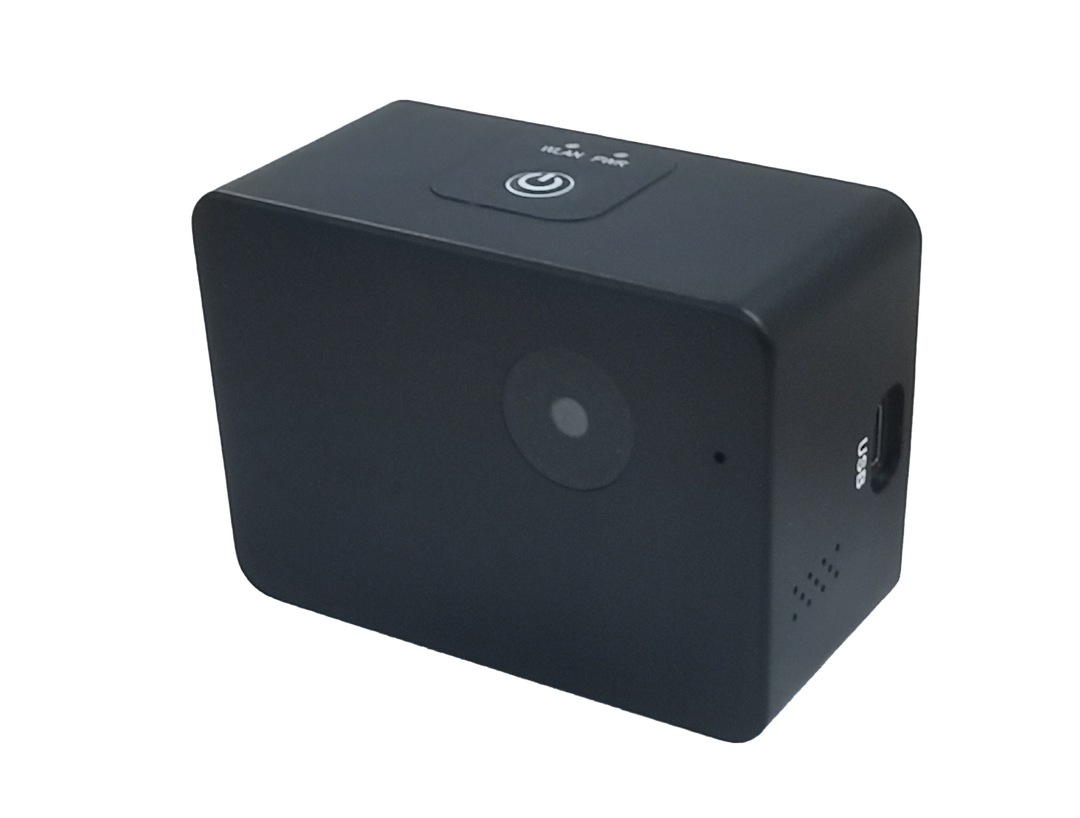

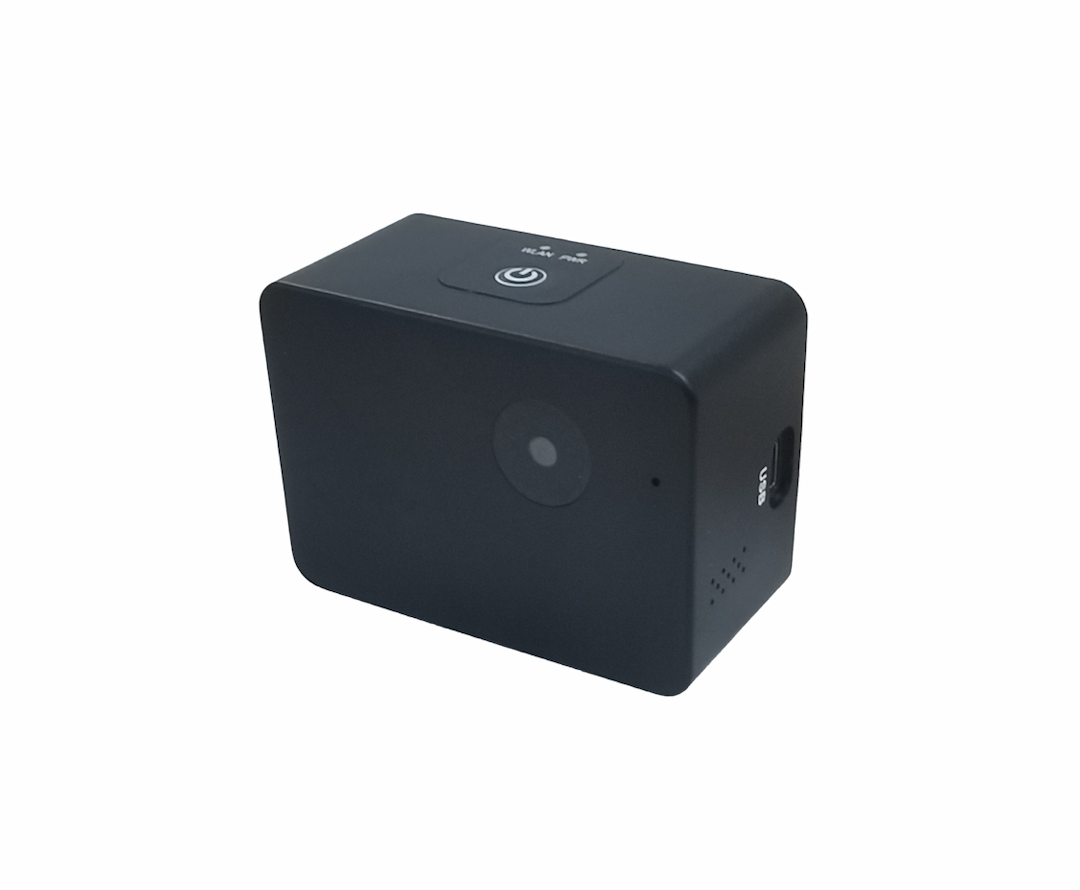

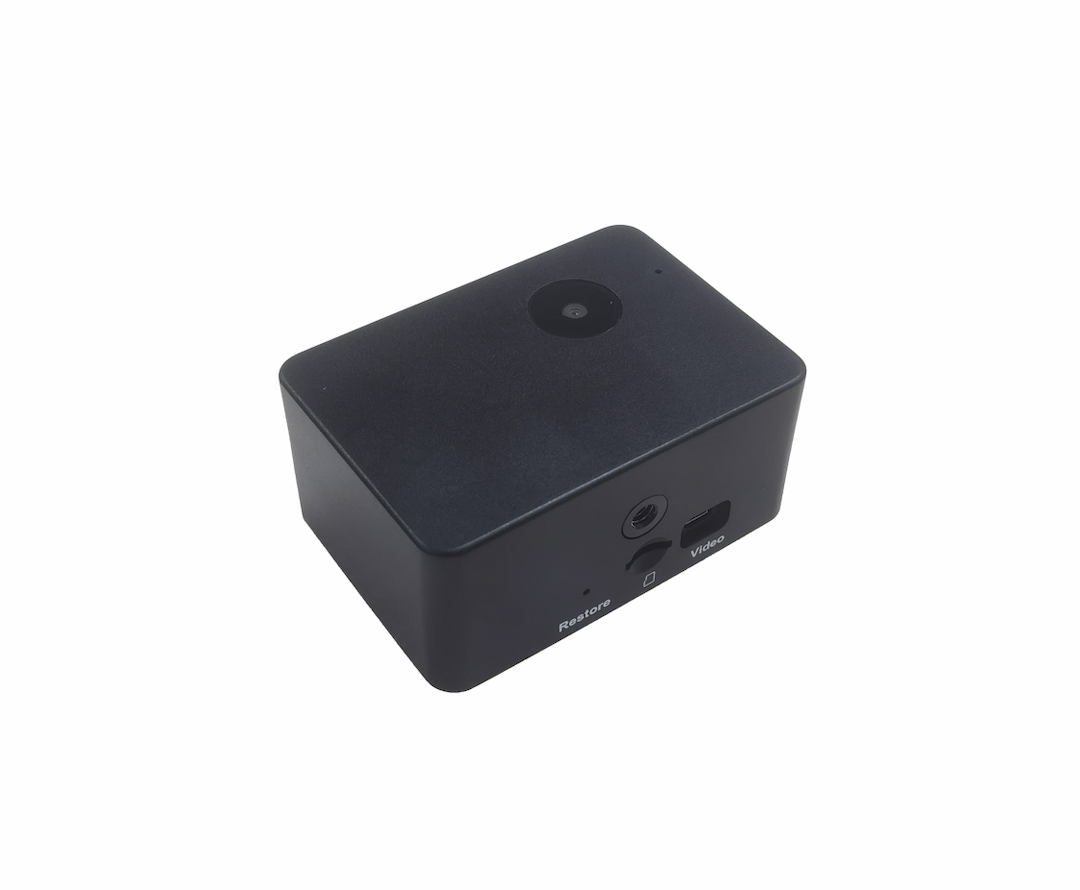

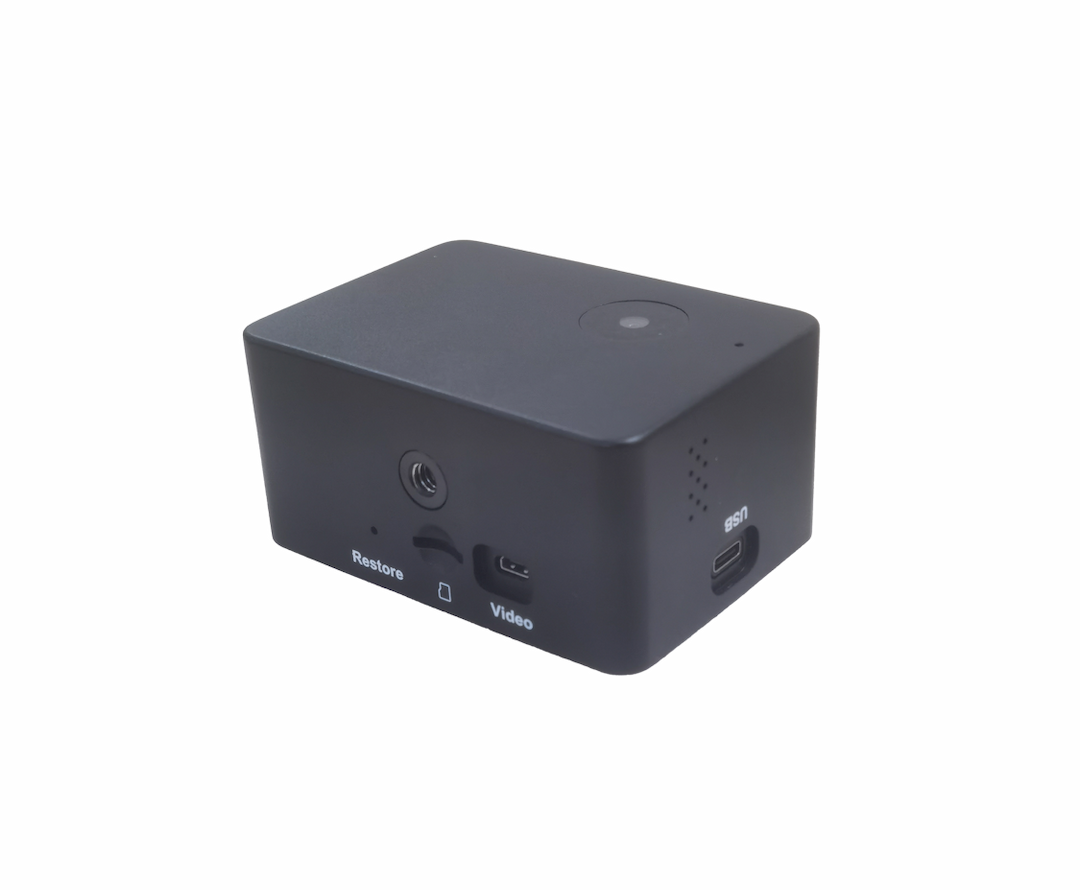

HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera
HCAM26 Wi-Fi HaLow IP Camera

HCAM26 Wi-Fi HaLow IP Camera

◆ Sub-1 GHz frequency bands
◆ Up to 1km transmission distance
◆ 4K and 5.0 Megapixel resolution
◆ Two-way audio
◆ Ultra-low power consumption
◆ Better penetration through walls and obstacles
◆ Local storage expansion supported
◆ 2600mAh Li-ion battery
◆ Screw hole for tripod connection

Description
Specifications
Documentation

Vantron HCAM26 Wi-Fi HaLow IP camera is designed for building security or public surveillance applications. It integrates VT-MOB-AH-L, a self-developed Wi-Fi HaLow module that complies with the prominent sub-1GHz IEEE 802.11ah (Wi-Fi HaLow) standard. It is designed to operate in station mode when paired with a Wi-Fi HaLow access point such as Vantron HCAM26 or HAP103 to ensure long-distance, reliable Wi-Fi HaLow connectivity.


HCAM26 delivers perfect output capturing 4K full high-definition and 5.0 Megapixel high-resolution images for optimal visual quality. Its two-way audio capability allows seamless remote communication with its built-in microphone and speaker. The Micro SD slot supports local storage expansion, allowing for video playback of the monitoring videos for extended time period. Moreover, the camera supports up to 1km transmission distance while demonstrating unparalleled wall penetration capabilities. In general, HCAM26 offers an ideal low-power security camera solution for remote areas, isolated plants, smart home systems, and other environments.

Specifications
Product Name
HCAM26 Wi-Fi HaLow IP Camera
CPU
Quad-core ARM Cortex-A7 32-bit vision processor
MCU
RISC-V MCU
NPU
2.0 Tops, support INT8/ INT16
Memory
1GB DDR4
Storage
8GB eMMC ; 1 x SD slot
Image sensor
5 MP 1/4” CMOS image sensor
Resolution
2592 x 1944 (QSXGA)
Output format
8-/10-bit RGB RAW output
Frame rate
VGA: 30fps ; QVGA, QQVGA, CIF: 60fps ; QCIF, QQCIF: 120fps
Pixel size
1.4μm x 1.4μm
Focal length
EFL: 1.785mm ; BFL: 0.934mm
FOV
73.9° (V), 92.4° (H), 119.9° (D)
Object distance
20cm~180cm
Aperture
F2.4
Lens construction
6P
Power requirement
Active: 198mW; Standby: 35μW
ISP
Max. 14MP
CODEC
H.265/H.264
Frame rate
3840 x 2160 @30 fps + 1080p @30 fps encoding supported ; 3840 x 2160 @30 fps encoding + 3840 x 2160 @30 fps decoding supported
Wi-Fi standard
IEEE 802. 11ah
Wi-Fi mode
Station
Frequency range
US: 902MHz ~ 928MHz ; JP: 916.5MHz ~ 927.5MHz
Security
WPA3, AES, SHA1, SHA2
USB
1 x USB Type-C, image flashing supported
Micro HDMI
1 x Micro HDMI, up to 4K @30Hz resolution, no sound output
Audio
1 x Mic in ; 1 x 1W Speaker
Tripod connection
Supported
Watchdog timer
Supported
LED indicators
1 x Power indicator ; 1 x Wi-Fi HaLow connectivity indicator
Button
1 x Power button ; 1 x Restore button (reboot/factory reset)
Dimensions
91.6mm x 65mm x 47.2mm
Battery
2600mAh, up to 4H operation
Input
5V/2A DC via the USB Type-C
Consumption
< 3W (average)
Operating system
Linux Yocto (Support by request)
Remote view
Mobile App
Temperature
Operating: -10℃ ~ +50℃ ; Storage: -20℃ ~ +70℃
Humidity
Humidity
Certification
FCC, TELEC
Documentation
Vantron HCAM26 Wi-Fi HaLow IP Camera Datasheet-V1.5.pdf
