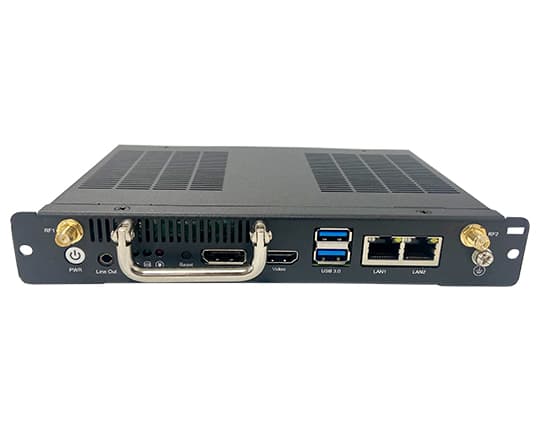

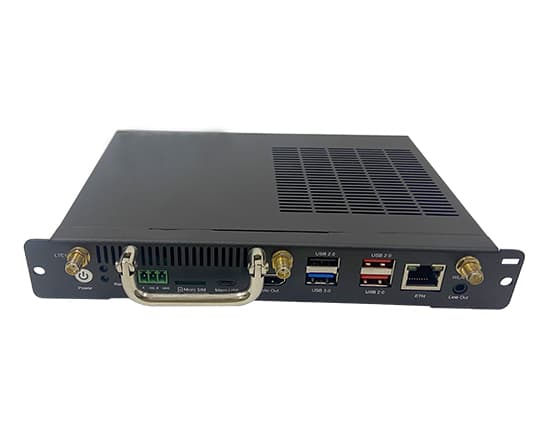

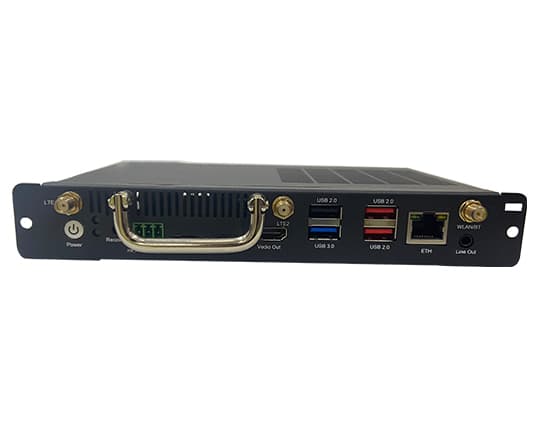

Oplayer3399 RK3399 Android OPS player

◆ Rockchip RK3399 hex-core processor
◆ Intel OPS compliant for flexible installation
◆ 4K UHD output
◆ Rich interfaces for expansion
◆ Wi-Fi/BT/4G/ETH for communication
◆ Android 10 system, Linux available
◆ Micro USB, USB 2.0, USB 3.0

Description

Specifications

Documentation

Conforming to Intel Open Pluggable Specification (OPS), Vantron Oplayer3399 OPS Player is powered by Rockchip RK3399 hex-core high-performance processor. Vantron Oplayer3399 offers a choice between 2GB memory and 4GB memory. Despite its energy efficiency, Oplayer3399 boasts rich interfaces, including HDMI with 4K UHD output, 3.5mm line out jack, USB 2.0 & 3.0 ports, RS232/RS485 and Ethernet jack, allowing for flexible connectivity with different peripherals.

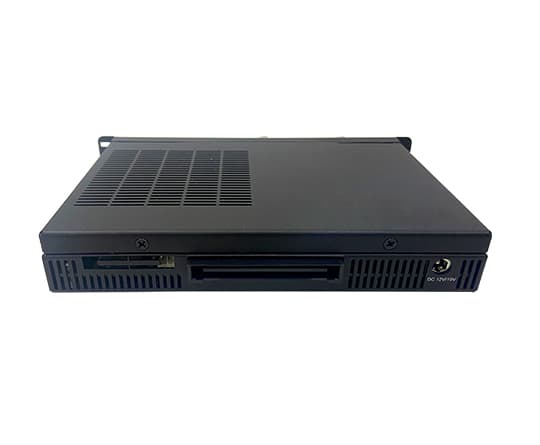

Oplayer3399 can be easily connected to an OPS compliant display via the JAE TX25 plug connector which offers DisplayPort, HDMI, USB 2.0, USB 3.0, audio (Line-out), power input and UART signals. Such design greatly reduces space requirements and lowers deployment and maintenance costs.

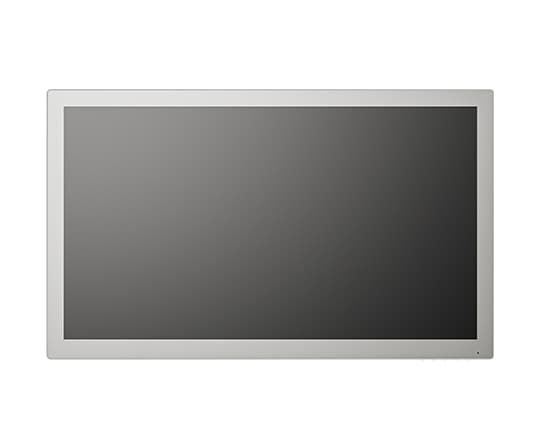

Oplayer3399 is designed to be seamlessly installed on Vantron TMC series large-screen touch monitors to offer an overall digital signage solution, significantly saving customers’ efforts and expenditures.

Specifications

Product Name

Oplayer3399 RK3399 Android OPS Player

CPU

Rockchip RK3399, dual-core ARM Cortex-A72 and quad-core ARM Cortex-A53 processor, 1.8GHz (Max.)

GPU

Mali-G52

Memory

2GB LPDDR4 (Optional: 4GB)

Storage

16GB eMMC (Optional: 64GB)

Ethernet

1 x RJ45, 100/1000Mbps

Cellular

4G LTE (Optional)

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Media

1 x HDMI 2.0 (4K @60Hz supported) 1 x 3.5mm Line out jack

USB

1 x USB 3.0 Type-A 3 x USB 2.0 Type-A 1 x Micro USB 2.0 (USB 2.0 OTG supported)

Serial port

1 x RS232

SIM slot

1 x Micro SIM slot

Antenna

2 x 4G LTE SMA connector 1 x Wi-Fi & BT SMA connector

RTC

Supported

Watchdog timer

Supported

JAE TX25

Display

1 x DP (4K @60Hz supported) 1 x HDMI (4K @60Hz supported)

USB

1 x USB 3.0 2 x USB 2.0

Audio

1 x Line out

UART

1 x 3.3V UART

Power

12V ~ 19V power input

Button

1 x ON/OFF button 1 x Recovery button

LED indicator

1 x Power indicator 1 x Wi-Fi indicator

Android 10 (Optional: Linux)

Input

Power via the DC jack (12V ~ 24V) Power via the OPS monitor (12V ~ 19V)

Dimensions

200mm x 120mm x 30mm

Heat dissipation

Heat sink

Temperature

Operating: -10℃ ~ +60℃ Storage: -20℃ ~ +70℃

Humidity

Operating: RH 10%~85% (non-condensing) Storage: RH 5%~95% (non-condensing)

Certification

CE, FCC, CCC

Documentation

Oplayer3399 OPS Player Datasheet

Oplayer3399 OPS Player User Manual
