TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor
TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor
TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor
TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor
TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor
TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor

TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor

Features
◆ 21.5” TFT LCD, 10-point PCAP touchscreen

◆ Sleek appearance

◆ AR/AG touchscreen available

◆ Flexible installation

◆ Excellent longevity (50,000H MTBF)

◆ Compact design, easy integration

Description
Specifications
Documentation

Vantron Technology offers desktop/wall-mountable touchscreen monitors that vary in screen size from 15.6 inches to 27 inches and resolution from 1280 x 1024 to 1920 x 1080. When used with Vantron embedded computers, such touchscreen monitors will offer more flexible solutions for customers to meet the requirements of application in different scenarios, in particular in the medical health area.

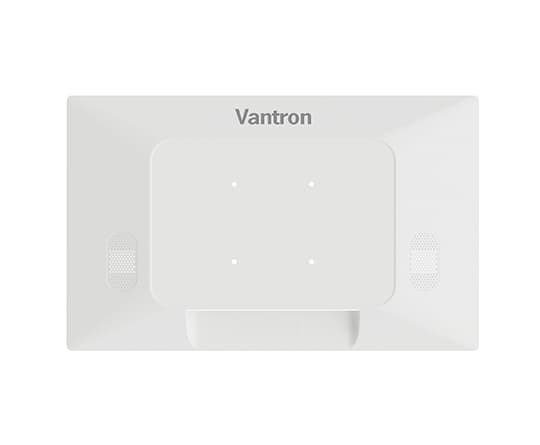

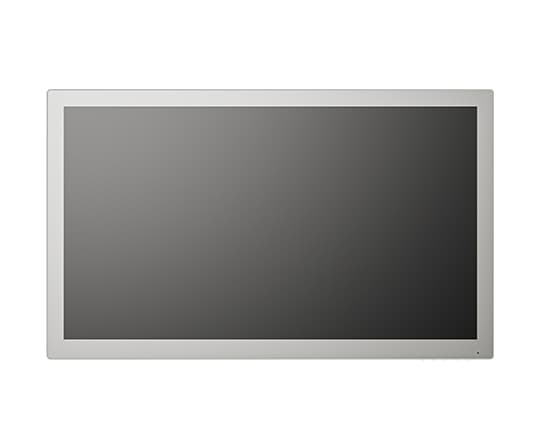

TMC215 applies a 21.5-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The screen is designed to be anti-fingerprint, and users have the option to equip the touchscreen with anti-glare and anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMC215 is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts. The OSD controls allow users to change settings of the display in a more convenient manner to enhance user experience.

Specifications
Diagonal size
21.5" TFT LCD with LED backlight
Aspect ratio
16:9
Resolution
1920 x 1080
Brightness
250 nits
Active area
476.64mm × 268.11mm
Contrast ratio
1000:1
Number of colors
16.7 M
Response time
14ms
Viewing angle
Horizontal: 178° Vertical: 178°
Touch point
10-point PCAP touch screen
Touch control
Finger, stylus pen
Cover lens thickness
3mm
Surface treatment
Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection)
Light transmittance ratio
>85%
Touch communication interface
USB 2.0
Video interface
1 x VGA 1 x DP 1 x HDMI
Audio interface
1 x Line in (Optional)
Dimensions
532.6mm x 330mm x 53mm
Weight
6.0 kg
Installation
VESA mount (100mm x 100mm)
OSD
Built-in OSD (set up with OSD keys) Controls: Menu, Up, Down, Select, Power
Power input
12V DC
Power consumption
<18W
Adjustment of brightness, contrast ratio and color temperature
Supported
Temperature
Operating: 0℃~+40℃ Storage: -20℃~+60℃
Humidity
RH 10%~90% (non-condensing)
MTBF
50,000 hours
Warranty
3 years
Certificate
CCC, FCC, CE, UL
Product Name
TMC215 21.5” Desktop/Wall-mountable Touchscreen Monitor
Documentation
Vantron TMC215 21.5“ Desktop/ Wall-mountable Touchscreen Monitor Datasheet - V1.8.pdf
TMC215 21.5” Desktop/ Wall-mountable Touchscreen Monitor Datasheet
Vantron TMC Series Desktop/ Wall-mountable Touchscreen Monitors User Manual -V1.2.pdf
TMC Series Desktop/Wall-mountable Touchscreen Monitors UM
Vantron TMC Series Desktop/Wall-mountable Touchscreen Monitors QIG -V1.3.pdf
Vantron TMC Series Desktop/Wall-mountable Touchscreen Monitors QIG
