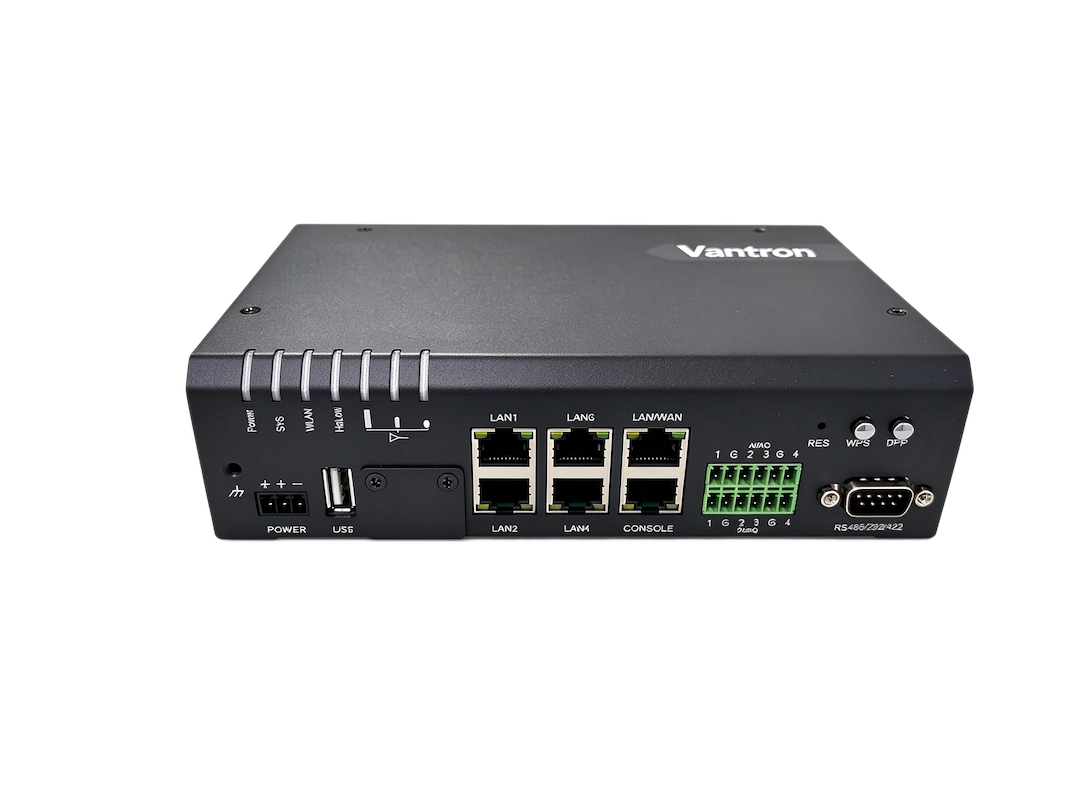

RAH305 Wi-Fi HaLow Router

● Both Wi-Fi HaLow and Wi-Fi 6 supported
● 4 × LAN, 1 × WAN, 4G/5G, BT 5.3, GNSS
● Sub-1 GHz HaLow operating bands
● Extended communication coverage up to 1km
● Improved penetration through walls and obstacles
● AI/AO, DI/DO, USB, serial port for edge data transmission
● WPS & DPP support for quick Wi-Fi 6 & HaLow pairing
● Static routing, port mapping, QoS, and ACL support
● Optional BlueSphere GWM support for remote control

Beschreibung

Spezifikationen

Dokumentation

Powered by the advanced MM8108 Wi-Fi HaLow chipset, Vantron RAH305 redefines the long-range connectivity. Complying with the IEEE 802.11ah (Wi-Fi HaLow) standard and the latest WPA3 security protocol, it delivers exceptional kilometer-range wireless coverage with superior penetration through obstacles. This enables secure, massive connectivity for thousands of IoT devices across vast areas. It also supports traditional Wi-Fi 6, providing unparalleled deployment flexibility for large-scale industrial, agricultural, and smart city applications.

RAH305 ensures always-on connectivity with integrated cellular backup, precise GNSS location tracking, and Bluetooth 5.3 support. Its wired connectivity includes five Gigabit Ethernet ports—one configurable WAN/LAN and four LAN—delivering robust network infrastructure. A comprehensive suite of industrial interfaces, including a USB 2.0 port, a DB9 serial port (configurable for RS232/422/485),and 4 × DI/DO and 4 × AI/AO channels, allows for seamless integration with a wide array of machinery, sensors, and legacy systems.

RAH305 features WPS and DPP buttons for quick Wi-Fi 6 and Wi-Fi HaLow pairing. It supports AP mode for both Wi-Fi 6 and Wi-Fi HaLow, with the latter also supporting Mesh functionalities, facilitating resilient, scalable, and future-proof IoT network deployment.

Spezifikationen

Product Name

RAH305 Wi-Fi HaLow Router (Wi-Fi HaLow Device)

CPU

Ti AM64 64-bit Arm® Cortex®-A53 microprocessor, up to 1GHz

Wi-Fi HaLow SoC

Morse Micro MM8108

Memory

512MB DDR4

Storage

8GB eMMC

Wi-Fi 6

Standard: IEE 802.11ax/ac/a/b/g/n; Frequency range: 2.400GHz~2.835GHz, 5.150GHz~5.850GHz (Subject to local regulations); Channel bandwidth: 20/40/80MHz ; Data rate: up to 1200Mbps @80MHz; Quick pairing: WPS quick pairing supported; Working mode: AP

Wi-Fi HaLow

Standard: IEE 802.11 ah; Frequency range: 903.5MHz~926.5MHz (US); Channel bandwidth: 1/2/4/8MHz, dynamic channel selection (DCS) supported; Max. transmit power: 28.5 dBm (700 mW); Data rate: up to 43.3 Mbps @8MHz; Application mode: Mesh, Bridge WAN; Quick pairing: DPP quick pairing supported; Working mode: AP, Mesh

Bluetooth

BT 5.3

Cellular modem

4G/5G

GNSS

Satellite support: GPS, BeiDou, GLONASS, GALILEO, QZSS (A-GNSS supported); Positioning precision: 2.5m (CEP50)

Ethernet

5 x RJ45, 10/100/1000Mbps (1 x WAN/LAN, 4 x LAN)

Console

1 x RS232-to-RJ45 port

USB

1 x USB 2.0 Type-A

Serial port

1 x RS485/232/422 (DB9)

DI/DO

4 x DI/DO (Software switchable, measurement: DI: 0-VIN, DO: 0-VIN)

AI/AO

4 x AI/AO (Software switchable, measurement: AI: 0-10V, AO: 4-20mA)

SIM slot

2 x Micro SIM slot

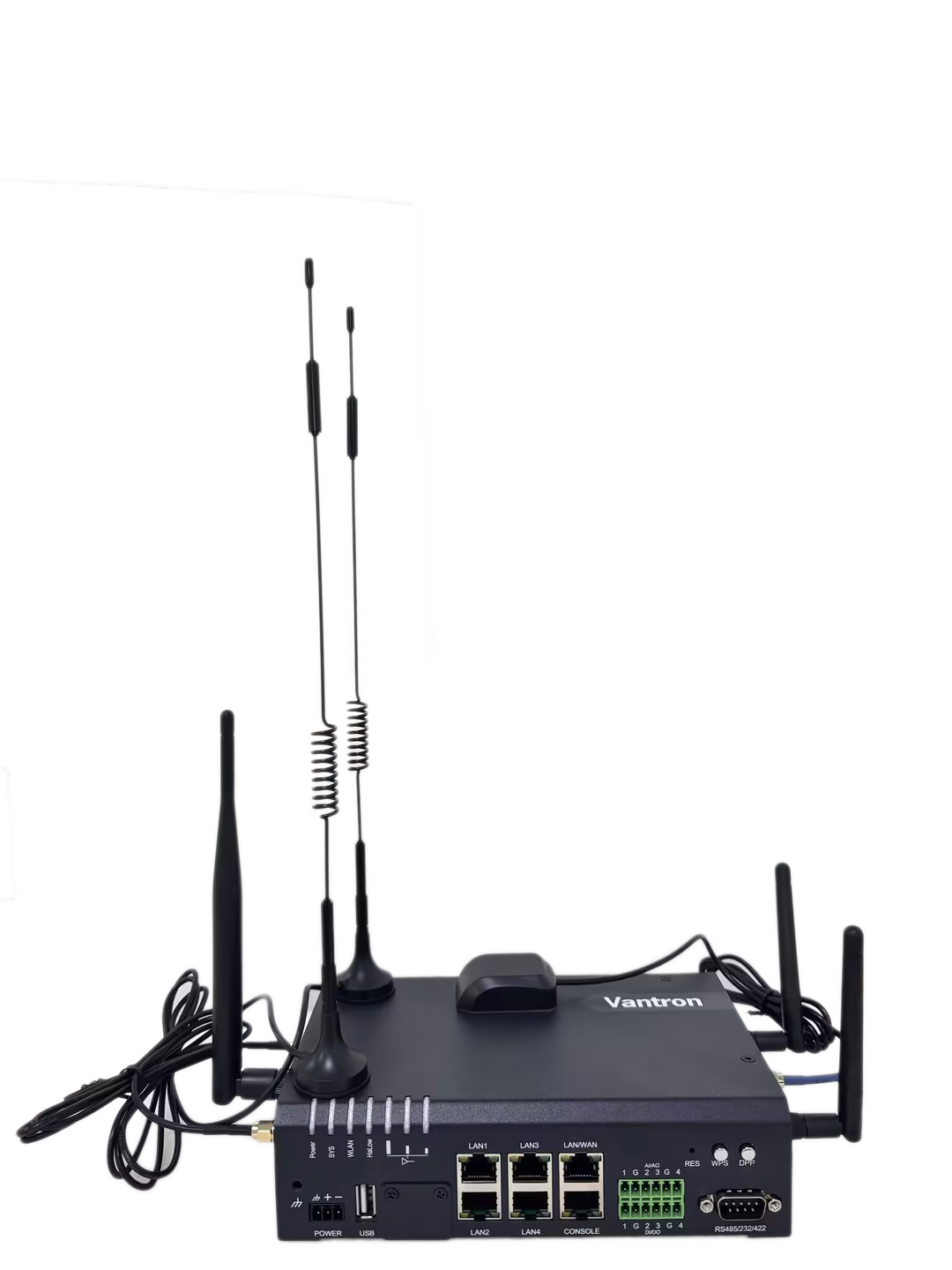

Antenna

1 x Wi-Fi HaLow antenna, 2 x Wi-Fi (6) antenna, 2 x 4G LTE antenna, 1 x GNSS antenna

LED indicators

1 x Power indicator, 1 x Wi-Fi HaLow activity indicator, 1 x System indicator, 1 x WLAN (Wi-Fi 6) activity indicator, 3 x LTE signal strength indicator

Button

1 x Restore button (pinhole), 1 x WPS button (For Wi-Fi quick pairing), 1 x DPP button (For HaLow quick pairing)

RTC & WDT

Supported

Enclosure material

SGCC (Steel Galvanized Cold Commercial )

Dimensions

224mm x 134mm x 56mm

Installation

Wall mounting, DIN rail mounting

Power input

9V ~ 36V DC

Power port

3-Pin x 3.81mm terminal (Over-current protection, reverse polarity protection)

Temperature

Operating: -20℃~+60℃, Storage: -40℃~+70℃

Humidity

Storage: 5%~95% RH (Non-condensing)

Compliance

FCC, ISED, PTCRB (In progress)

Carrier certification

AT&T, Verizon, T-Mobile

Operating system

Web-based VantronOS

Configuration

VantronOS, SSH, console, cloud-based BlueSphere GWM (Optional)

Remote management

BlueSphere GWM (Optional)

Network protocol

IPV4, HTTPS, TCP & UPD, NTP client and server, ARP, TLS

Link detection & report

Address: IP, URL; Protocol: ICMP, TCP, HTTP

Failover

Auto routing; Network priority: Ethernet > Wi-Fi client > LTE/5G (Def.)

Dual SIM

Dual SIM failover, automatic switch

NAT

Network address translation Supported

WAN protocol

DHCP client, PPPoE, Static IP

IP application

Ping, Traceroute, DHCP Server/Client, DDNS

IP routing

Static routing

Network diagnostics

Statistics: Traffic data and up time at Ethernet WAN, Wi-Fi client WAN, cellular WAN; Cellular and Wi-Fi signal strength; SIM card switch frequency. Health check: Usage of CPU, memory, disk; service running status; Alarm on Ethernet/Wi-Fi/cellular hardware abnormality. Log: System log, diagnostic log; log export supported.

Security

Firewall: Stateful, whitelist control, ingress/egress filtering. Access control MAC address filtering, IP address filtering. VPN: OpenVPN, PPTP*, L2TP*, GRE*, IPSec*. Firmware validation: SHA256 checksum
