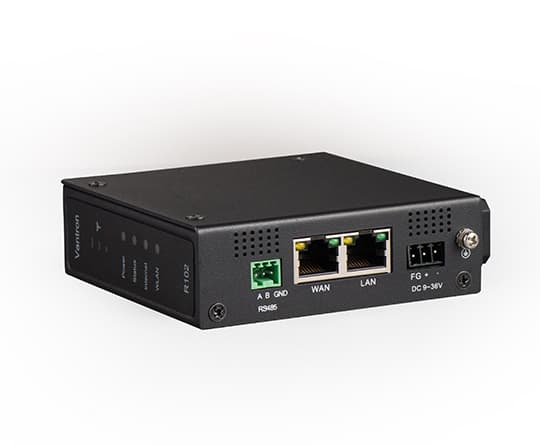

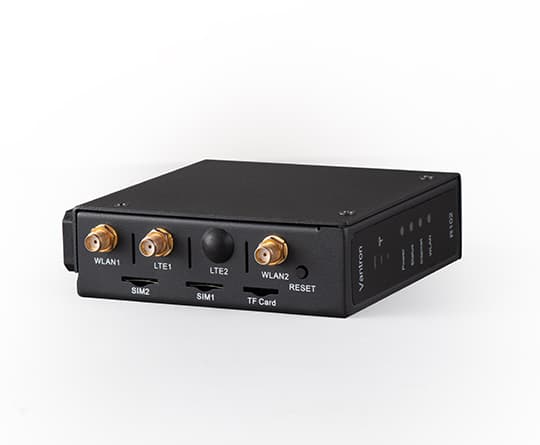

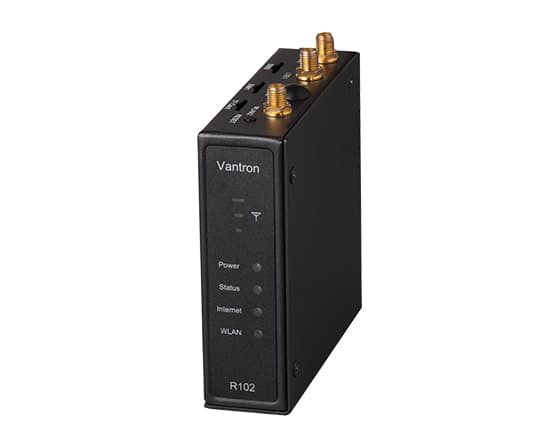

R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router
R102 Entry-level Dual-Ethernet 4G Industrial Router

R102 Entry-level Dual-Ethernet 4G Industrial Router

Features

LTE CAT M/1 /4 supported
Two Ethernet interfaces rating 10/100Mbps
Industrial design to adapt to rugged conditions
Compact size and flexible installation for varying sites
◆ BlueSphere cloud platform supported for unified management
◆ Dual SIM hot spot, multi-channel failover to keep communication uninterrupted
Multiple VPN functions


Description
Specifications
Documentation

Vantron R102 industrial wireless router is designed for industrial IoT that combines dual SIM LTE, Wi-Fi, Ethernet, and virtual private network to meet diversified networking requirements. R102 industrial router applies a communication tactic that uses multiple channels with failover protocol, which together with the high-reliability watchdog maintains a secure and stable network access. As is compact in size, R102 supports panel mount, DIN rail mount, and wall mount to meet the requirements of varying sites. Meanwhile it provides access to Vantron BlueSphere cloud platform for unified management to ease the efforts of users by real-time monitoring and tracking, remote maintenance and OTA updates, task assignment and follow-up.


Featuring high stability and reliability, excellent cost performance, and convenient networking deployment, Vantron R102 industrial router is especially suitable for large-scale distributed networking in the following scenarios:


Intelligent business: parcel lockers, meal delivery cabinets, charging piles, ATM machines, digital signages, etc.;
Smart city: supply of heat, water, gas, oil etc.;
Intelligent security and intelligent transportation;
Monitoring of cranes and other devices on construction sites;
Monitoring of environmental protection devices, water conservancy devices etc.



Specifications
Memory
128MB
Storage
32MB
Ethernet
2 x RJ45, 10/100Mbps
Wi-Fi
2.4GHz, IEEE 802.11 b/g/n, 300Mbps, AP&Client
4 G LTE CAT
CAT M/1/4
WAN protoco
PPP, PPPoE, DHCP
Serial port
1 x RS485
SIM slot
2 x Drawer-type SIM slot
Antenna
2 x LTE antenna, 2 x Wi-Fi antenna
Ground terminal
Enclosure & PCB
Dimensions
93.8 x 93.3 x 29mm
Enclosure
Metal
Installation
Panel mounting/DIN rail mounting/Wall mounting
IP rating
IP30
Cooling mode
Fanless
OS
Vantron OS
Network management
SNMP v1/v2c/v3
Device management
Vantron BlueSphere
Input
9-36V DC, over-current protection, reverse polarity protection
Firewall
Supported
Data security
PPTP, L2TP, GRE, Ipsec, OpenVPN
Link detection
Heartbeat detection, automatic reconnection
Network reliability
Failover supported, link backup between Ethernet, Wi-Fi, 4G LTE
Dual SIM switch
Dual SIM failover, automatic switch
IP application
Ping, Traceroute, DHCP Server/Client, DDNS
IP Routing
Static routing
Temperature
Operating: -20℃~+60℃ Storage: -40℃~+70℃
Humidity
Storage: RH 5%~95% (non-condensing)
Certification
CCC, CE, FCC, PTCRB
Documentation
Vantron R102 Industrial Router User Manual-V1.5.pdf
R102 Industrial Router User Manual
Vantron R102 Industrial Router Datasheet - V2.3.pdf
R102 Industrial Router Datasheet
