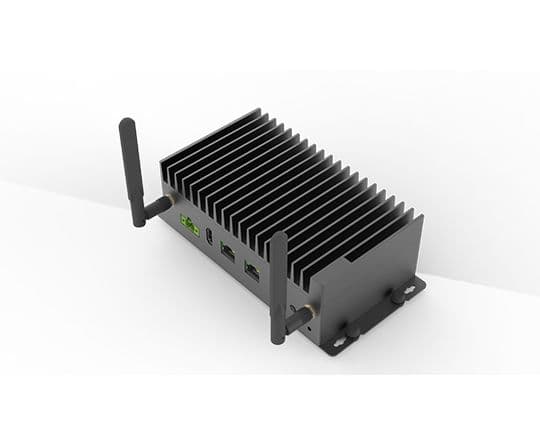

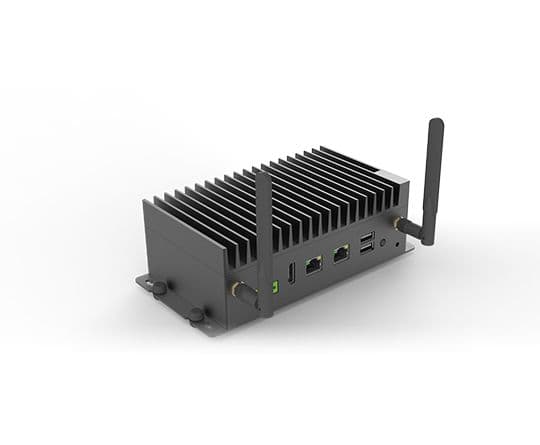

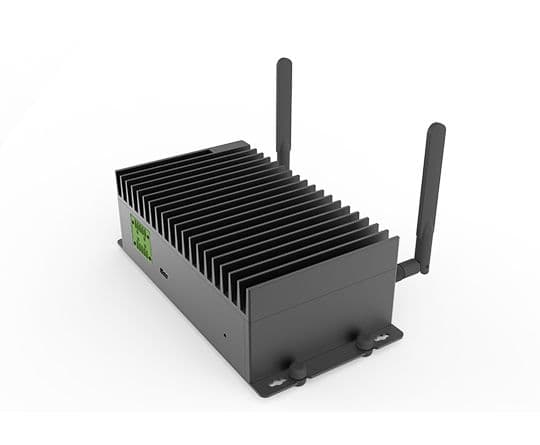

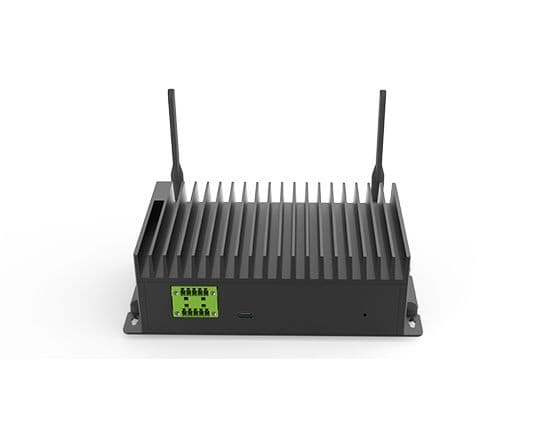

Nvidia Jetson GB200 Edge AI Gateway

Features

◆ NVIDIA Jetson TX2 NX

◆ Heat map analysis

◆ Facial recognition, behavior recognition

◆ Long lifetime

◆ Compact structure, easy to deploy

◆ IP50 protection against vibration

◆ Fanless embedded design, strong anti-interference performance

◆ NVIDIA NGC open eco-system

◆ Local reasoning, excellent computing power

◆ Flexible expansion

◆ Easy to maintain

◆ Quick upgrade

Description

Specifications

Documentation

The GB200 industrial gateway is equipped with NVIDIA Jetson™ TX2 NX core module. NVIDIA Jetson™ TX2 NX provides a new generation of embedded edge computing products for entry-level AI performance. It adopts Jetson Nano and Jetson Xavier™NX pin to pin design so that its performance is 2.5 times that of Jetson Nano. Moreover, it features small size, flexible installation, rich interfaces, and flexible expansion capabilities.

The GB200 industrial gateway can be widely used in manufacturing, logistics and transportation, retail, services, agriculture, smart cities, healthcare and life sciences, smart machines, and industrial monitoring. At the same time, it could build, deploy and manage pre-trained AI models from NVIDIA NGC™ with local cloud technology

Specifications

Processor

NVIDIA Jetson TX2 NX

AI performance

1.33 TFLOPS

CPU

Dual-core NVIDIA Denver 1.5 64-bit CPU,Quad-Core ARM Cortex-A57 MPCore processor complex

GPU

NVIDIA Pascal™ architecture with 256 NVIDIA® CUDA cores

Memory

4GB 128-bit LPDDR4 x 51.2GB/s

Storage

16GB eMMC 5.1 1 x TF slot

Ethernet

2 x Gigabit Ethernet

CAN

1 x CAN

Video encode

1 x 4K @ 60 (HEVC) 4 x 1080p @ 60 (HEVC) 8 x 1080p @ 30 (HEVC) 7 x 1080p @30 (HEVC)

USB

2 x USB3.0

Display

1 x HDMI Type A

Media

2 x MIPI (CSI)

Button

1 x Power button, 1 x Recovery button

Serial

1 x RS232/422/485

GPIO

4 x GPIO

BUS

1 x 30-pin I/O (GPIO/I2S/I2C/Audio/SPI/UART)

User expansion

① 1 x Mini-PCIe, ② 1 x M.2 E-Key 2230 for Wi-Fi (Alternatively optional) M.2 M key 2280 NVME (PCIE） M.2 B-KEY for LTE/5G 1 x Nano SIM Socket

Dimensions

189 x 96.7 x 57.5 mm

IP rating

IP50

Net weight

1.1 kg

Input

12-24V DC, 2-pin terminal

Temperature

Operating: -20°C ~ 60°C CPU/GPU Full Loaded Operation - 20°C ~ 75°C Frequency Reduction Operation Storage: -40°C ~ 75°C

Humidity

RH 5%~90% @ 40°C (Non-condensing)

Operation vibration

3 Grms 5~500Hz

Certification

CCC, RoHS, SRRC

Product Name

Nvidia Jetson Edge AI Gateway GB200

Documentation

GB200 Edge Computing Gateway Datasheet
