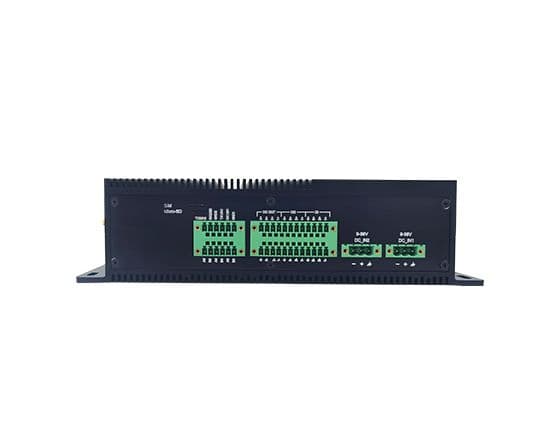

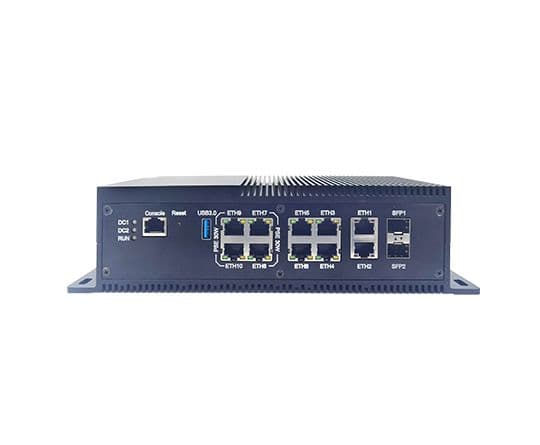

G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway

G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway

Features

◆  Quad-core ARM Cortex-A53, 1.6GHz

◆  2 x SFP, 10 x RJ45

◆  Sufficient interfaces

◆  Local edge computing supported

◆  Wide input voltage range

◆  Industrial-grade design

Description
Specifications
Documentation

Vantron G43A industrial edge computing gateway is an industry-specific high-performance gateway launched by Vantron to meet the needs of intelligent street lighting that adapts to movement by pedestrians, cyclists and cars in a smart city. It supports 4G/NB-IoT, Ethernet, Wi-Fi, and Bluetooth to live up to diversified networking requirements. Its edge computing functionality helps to achieve data optimization at IoT edge nodes, which reduces the data volume accumulated in the field and the central console.


As part of its industrial-grade design, the gateway supports 9V-36V wide input voltage. Customers also have the option to enable the PoE function that delivers electrical power to devices through the Ethernet cable.

Specifications
CPU
Quad-core ARM Cortex-A53, 1.6GHz
Memory
4GB DDR4 (Optional: 2GB)
Storage
32GB eMMC 1 x Micro SD card
Ethernet
8 x RJ45, 100Mbps (including 4 that support PoE) 2 x RJ45, 1000Mbps 2 x SFP (Ethernet ring protection protocol supported)
Wi-Fi &BT
Wi-Fi 2.4GHz/5GHz + BT5.0
Serial port
3 x RS485 2 x RS232/RS485
DI/DO
8 x DI/DO
USB
1 x USB 3.0
SIM slot
1 x SIM slot
Grounding
Enclosure & PCB
Mini-PCIe
1 x Built-in mini-PCIe, for 4G/NB-IoT
Button
1 x Reset pin button
LED
2 x Power indicator 1 x System running indicator
Dimensions
286mm x 130mm x 68mm (with brackets)
OS
Linux (CentOS or Debian 10)
Power
9V-36V, 2 x power terminal, redundant power supply
Temperature
Operating: -40℃~+80℃
Product Name
G43A Intelligent Street Lighting Low-consumption Edge Computing Gateway
Documentation
Vantron G43A Industrial Edge Computing Gateway Datasheet-V1.5.pdf
G43A Edge Computing Gateway Datasheet
