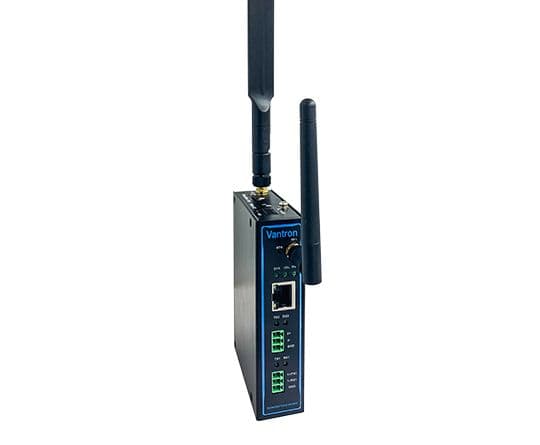

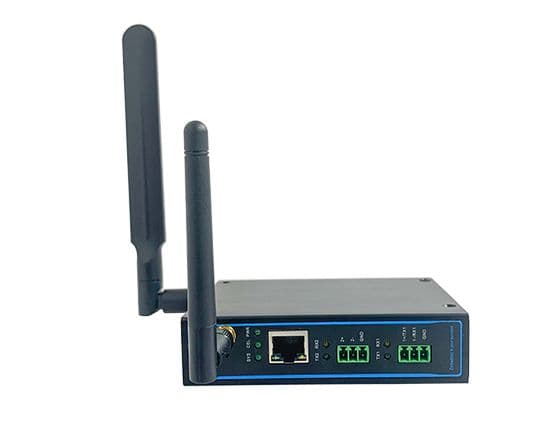

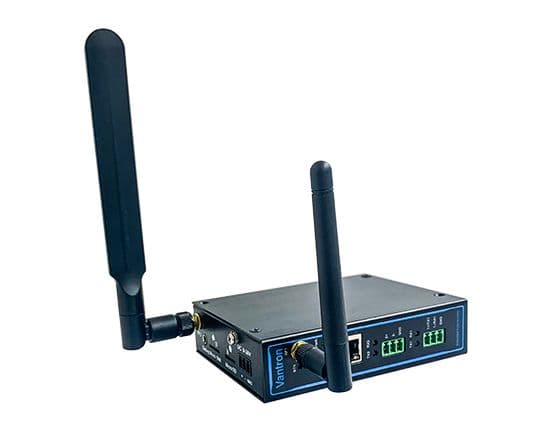

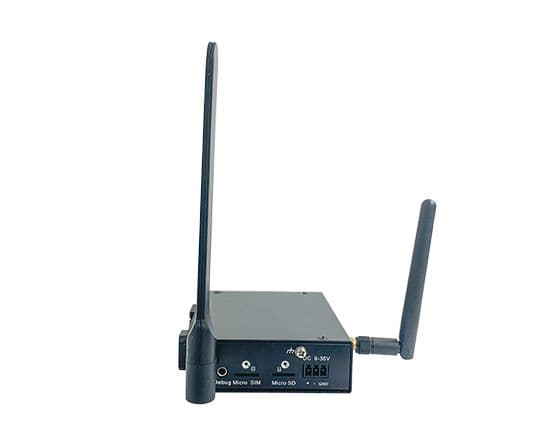

C335L 1 ETH 2 COM Low-consumption Edge Computing Gateway

Features

◆ Low-consumption, high-performance ARM processor
◆ Sufficient industrial interfaces
◆ Wired and wireless network accesses
◆ Multiple industrial protocols supported for communication with field PLCs, etc.
◆ MQTT protocol supported to provide broad access to cloud platforms
◆ Local edge computing
◆ C/C++/Python/Node-js/Node-Red supported
◆ Complete industrial design
◆ Compact size and flexible installation to meet requirements of varying sites

Description
Specifications
Documentation

Vantron C335 series industrial edge computing gateways were launched to meet the needs of IIoT applications in various industrial scenarios. This series supports a variety of industrial protocols to allow access by field industrial devices such as PLCs, HMIs, sensors, etc. The edge computing functionality helps to achieve data optimization at IoT edge nodes, which reduces the data volume accumulated in the field and the central console. With standard MQTT protocol, the series provides a broad access to industrial data platforms to facilitate the digital transformation of factories.


This series adopts industrial design with guaranteed quality and reliability to offer an ideal solution for your IoT application. Meanwhile it provides access to Vantron BlueSphere cloud platform for unified management to ease the efforts of users by real-time monitoring and tracking, OTA updates, remote maintenance, task assignment and follow-up.

Specifications
CPU
TI, AM335x, ARM Cortex-A8, 600MHz
Memory
512MB
Storage
8GB, up to 64GB 、1 x Micro SD card
Ethernet
1 x RJ45, 10/100Mbps
LTE & Wi-Fi & Bluetooth
Mini PCIe for LTE CAT 1/ CAT 4/ CAT M (AT&T, Verizon) On-board Wi-Fi 802.11 a/b/g/n/ac & BT 5.0
Ethernet port protocol
PPP, PPPoE, DHCP, ARP
Serial port
1 x RS485, 1 x RS232/RS485 (Default)
SIM slot
1 x Drawer-type SIM slot
Grounding
Enclosure & PCB
RTC
Separate RTC chip, powered by button cell
GPIO
4 x GPIO (Optional)
Button
1 x Reset button
LED indicator
1 x Power indicator 1 x System status indicator 4 x Serial port status indicator
Dimensions
113.5mm x 82mm x 28.5mm
Enclosure
Metal
Installation
DIN rail mounting/Wall mounting/Panel mounting
IP rating
IP30
Cooling mode
Fanless
Terminal
3-pin 3.81mm terminal
OS
Vantron OS
SDK
Available
Network management
SNMP v1/v2c/v3
Device management platform
Vantron BlueSphere
Third-party platform
MQTT/ HTTPS
IPK import
Supported
Interface language
Chinese and English (Default) Other languages (Optional)
NTP
Supported
Log
Supported
Firewall
SYN-flood protection, port forwarding, custom rules
Data security
OpenVPN, L2TP, PPTP, IPSec
Link detection
Heartbeat detection, automatic reconnection
Network reliability
Failover supported, link backup between Ethernet, Wi-Fi and 4G/LTE
Multi-level permission
Supported
Configuration mode
Local, remote
Upgrade
Local, OTA update
Networking guide
One-key configuration of LTE, Wi-Fi, and Ethernet
Traffic statistics
Per month/week/day
IP application
Ping, Traceroute, Nslookup
IP Routing
Static routing
NAT
Supported
Industrial protocol
Modbus TCP, Modbus RTU, EtherNet/IP, ISO-on-TCP, CC-link, etc.
Edge computing
JavaScript, MicroPython
Development language
C/ C++/ Python/ Lua/ Node.js/Java/ Node-Red (Optional)
Temperature
Operating: -20℃ ~ +70℃ Storage: -30℃~+85℃
Certification
CE, FCC, PTCRB
