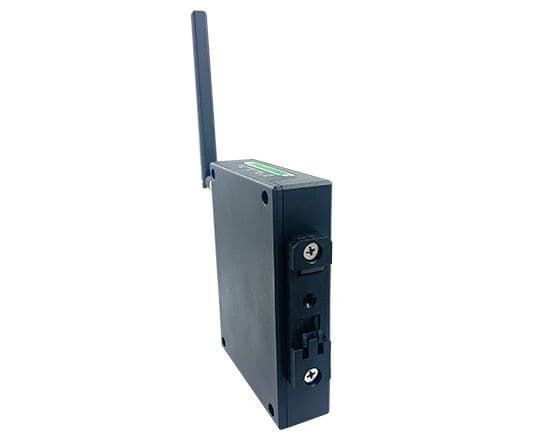

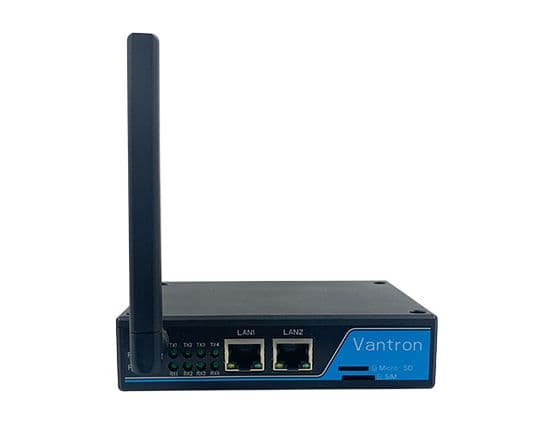

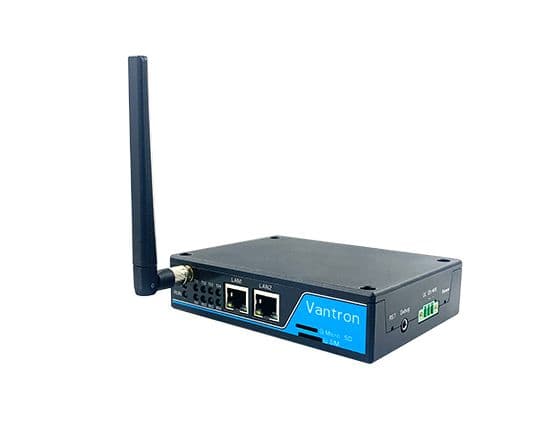

C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway
C335 2 ETH 4 COM Low-consumption Edge Computing Gateway

C335 2 ETH 4 COM Low-consumption Edge Computing Gateway

Features

◆ Low-consumption, high-performance ARM processor
◆ Sufficient industrial interfaces
◆ Wired and wireless network accesses
◆ Multiple industrial protocols supported for communication with field PLCs, etc.
◆ MQTT protocol supported to provide broad access to cloud platforms
◆ Local edge computing
◆ C/C++/Python/Node-js/Node-Red supported
◆ Complete industrial design
◆ Compact size and flexible installation to meet requirements of varying sites

Description
Specifications
Resources

Vantron C335 series industrial edge computing gateways were launched to meet the needs of IIoT applications in various industrial scenarios. This series supports a variety of industrial protocols to allow access by field industrial devices such as PLCs, HMIs, sensors, etc. The edge computing functionality helps to achieve data optimization at IoT edge nodes, which reduces the data volume accumulated in the field and the central console. With standard MQTT protocol, the series provides a broad access to industrial data platforms to facilitate the digital transformation of factories.


This series adopts industrial design with guaranteed quality and reliability to offer an ideal solution for your IoT application. Meanwhile it provides access to Vantron BlueSphere cloud platform for unified management to ease the efforts of users by real-time monitoring and tracking, OTA updates, remote maintenance, task assignment and follow-up.

Specifications
Southbound protocol
Modbus TCP, Modbus RTU, EtherNet/IP, ISO-on-TCP, CC-link, etc
CPU
TI, AM335x, ARM Cortex-A8, 600MHz
Memory
1GB
Firewall
SYN-flood protection, port forwarding, custom rules
Storage
8GB, up to 64GB, 1 x Micro SD card
Ethernet
2 x RJ45, 10/100Mbps
LTE & Wi-Fi & Bluetooth
Mini PCIe for either LTE CAT 4/ CAT M (AT&T, Verizon) or Wi-Fi 802.11 a/b/g/n & BT 4.0
Serial port
3 x RS485, 1 x RS232/RS485
SIM slot
1 x Drawer-type SIM slot
Grounding
Enclosure & PCB
RTC
Separate RTC chip, powered by button cell
GPIO
4 x GPIO (Optional)
Button
1 x Reset button, 1 x Renew button
LED indicator
1 x Power indicator, 1 x System status indicator, 8 x Serial port status indicator
Dimensions
125mm x 110mm x 30mm
Enclosure
Metal
Installation
DIN rail mounting
IP rating
IP30
Heat dissipation
Fanless
Power input
12-48V DC, over-current protection, reverse polarity protection
Power terminal
3-pin 3.81mm power terminal
OS
Vantron OS
Ethernet port protocol
PPP, PPPoE, DHCP, ARP
Custom development
SDK available, C/ C++/ Python/ Lua/ Node.js/Java/ Node-Red supported
Device management platform
Vantron BlueSphere GWM
Northbound protocol
MQTT/ HTTPS
Edge computing script
JavaScript, MicroPython
IPK import
Supported
Log
Supported
Configuration mode
Local, remote
Upgrade
Local, OTA update
NAT
Supported
Network management
SNMP v1/v2c/v3
NTP
Supported
IP application
Ping, Traceroute, Nslookup
Routing
Static routing
VPN
OpenVPN, L2TP, PPTP, IPSec
Link detection
Heartbeat detection, automatic reconnection
Network reliability
Failover supported, link backup between Ethernet, Wi-Fi and 4G/LTE
Multi-level permission
Supported
Temperature
Operating: -20℃ ~ +70℃, Storage: -30℃~+85℃
Humidity
RH 5%-95% (Non-condensing)
Certification
CE, FCC, PTCRB
