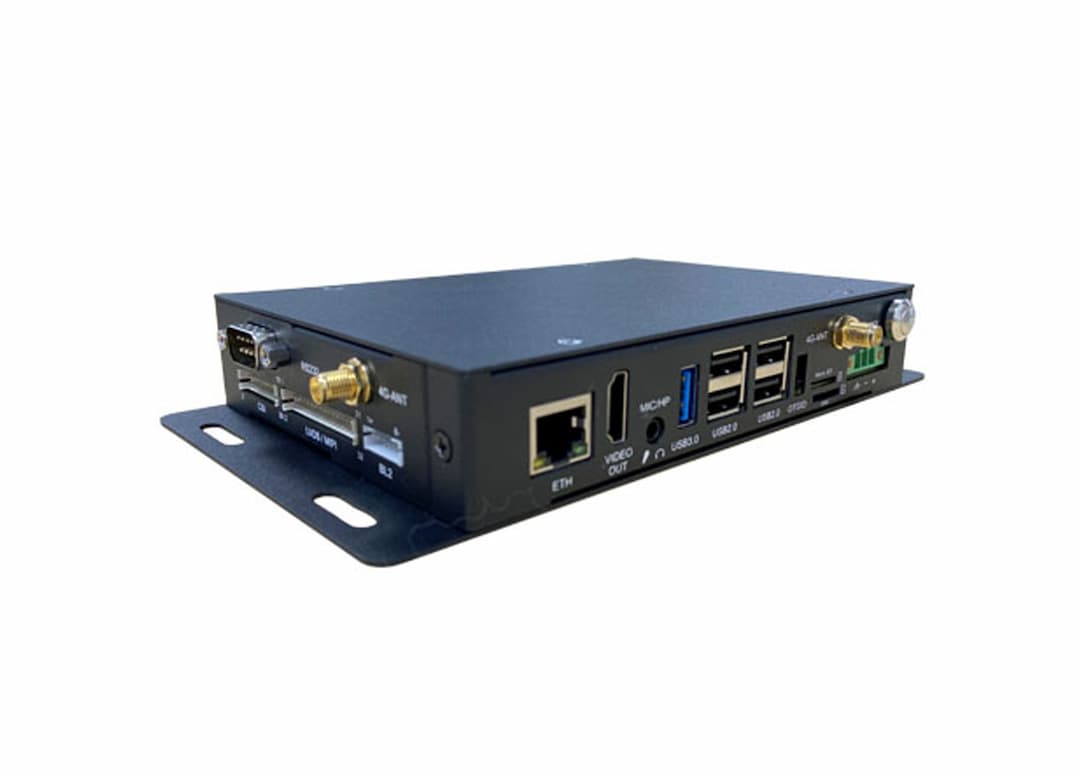

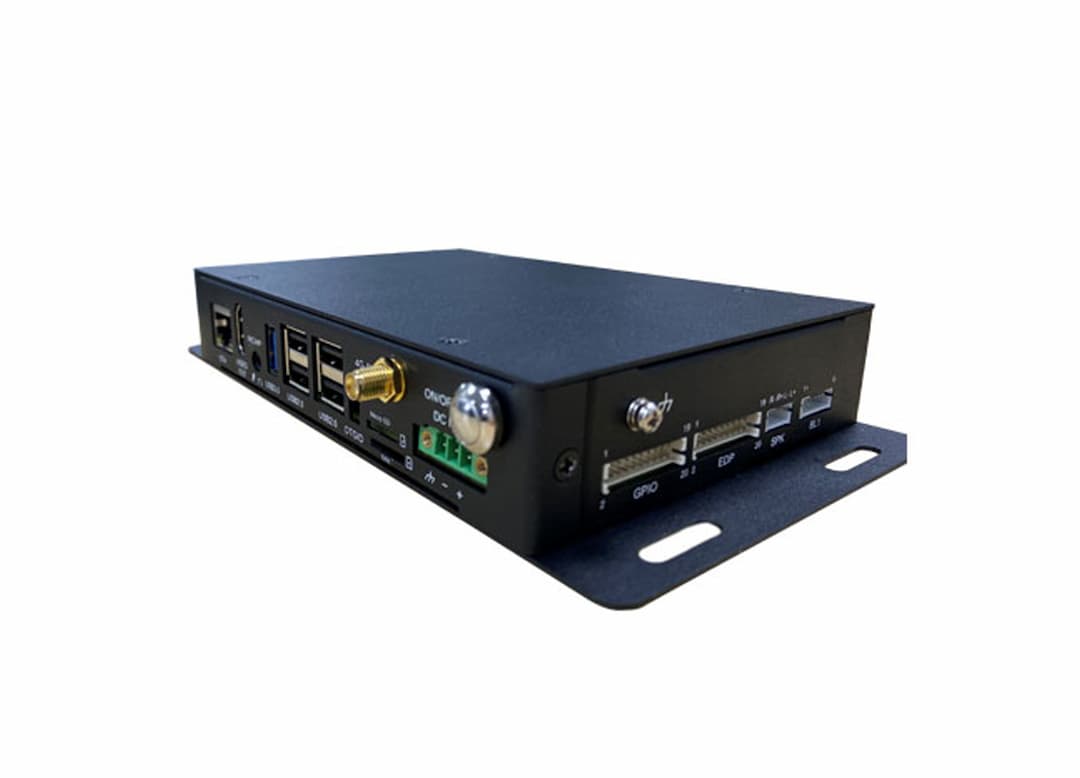

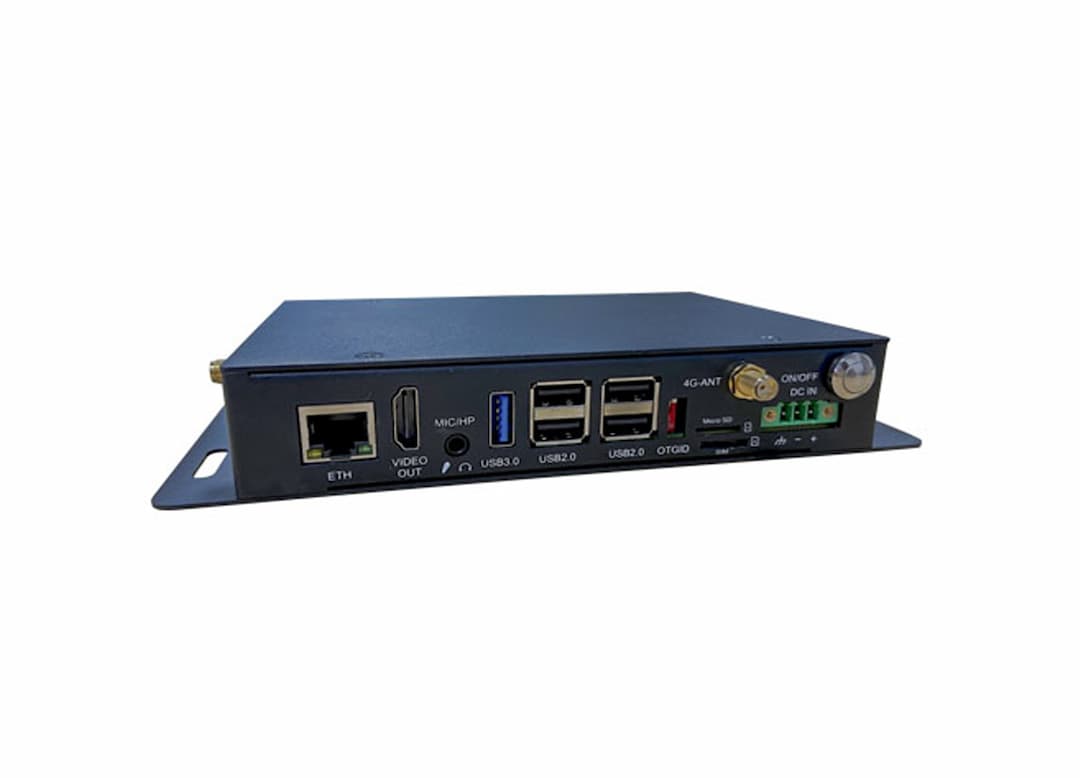

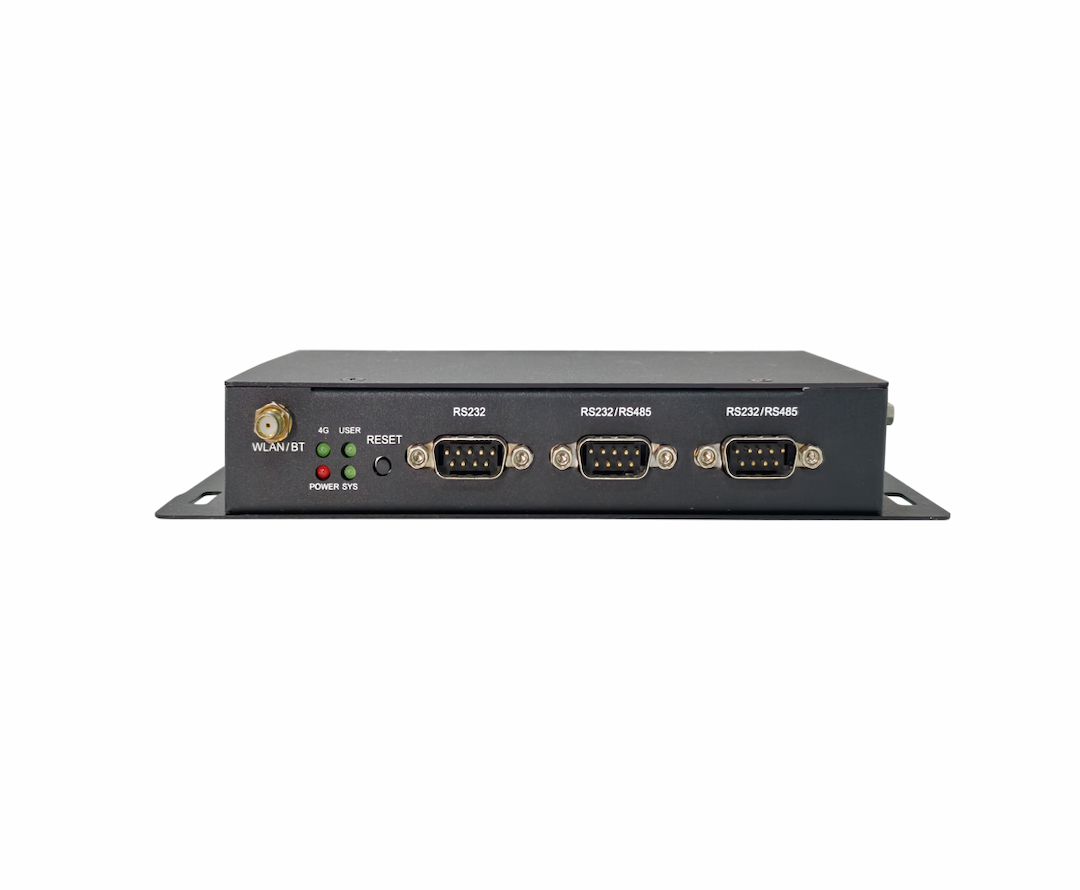

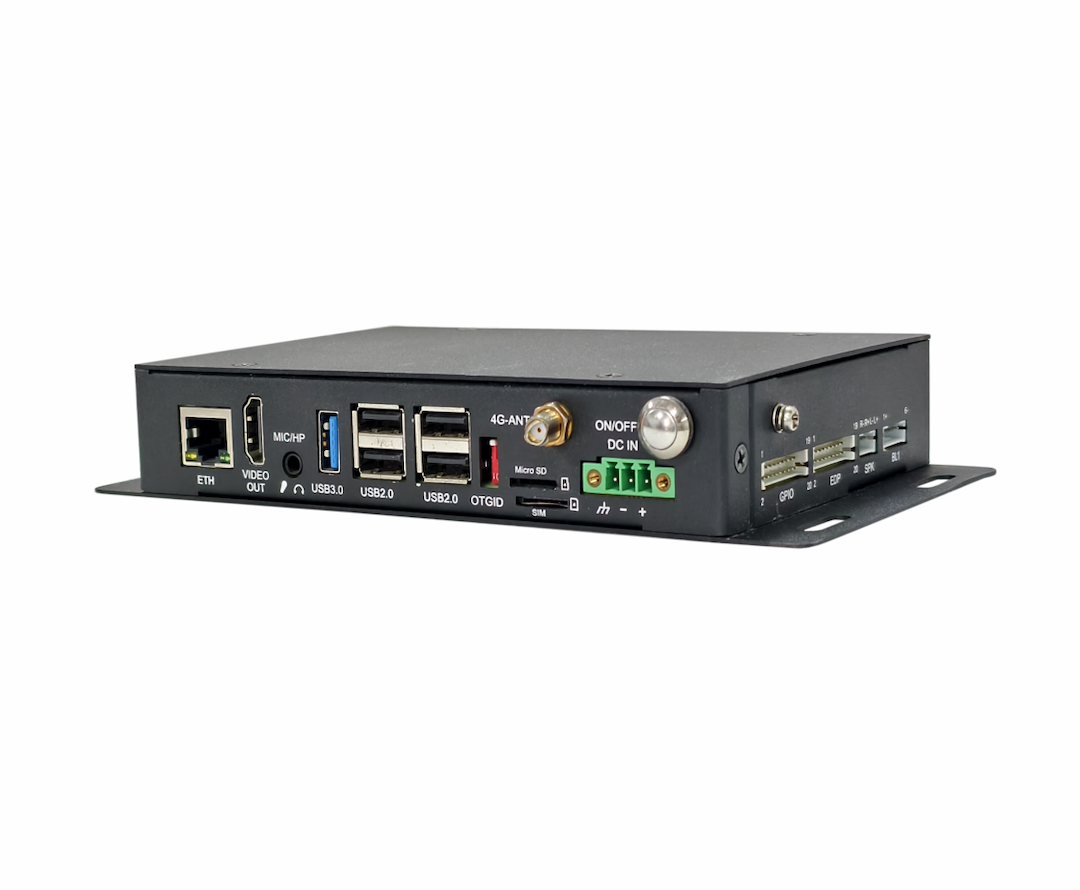

IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer
IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer

IBOX66 RK3566 ARM-based Multi-media Embedded Industrial Computer

Features

◆ RK3566, Rockchip new generation processor

◆ 4GB Memory and 32GB Storage

◆ Android 11, GMS certified

◆ eDP/LVDS/MIPI interface for display

◆ 5 x USB, 2 x RS485, 2 x RS232/485

◆ Wi-Fi/BT/4G/ETH for communication

◆ Connectivity to Vantron Bluesphere for real-time tracking

Description
Specifications
Documentation

Vantron IBOX66 is a multi-functional embedded industrial computer designed for smart businesses. Running the Android 11 operating system, the high-performance industrial computer is GMS certified to enable customers to have unimpeded access to Google mobile services.


IBOX66 is powered by RK3566, a cost-effective multi-core processor developed by Rockchip. With 4GB memory and 32GB eMMC storage, it features quick access to data and ultra large capacity. As such, it is capable of dealing with huge volume of data in a timely manner.


As IBOX66 provides rich interfaces, a wide choice of peripherals can be connected for extended applications, including barcode scanners, cameras, barcode printers and keyboard plates. It also supports ultra-high-definition video outputs thanks to the high-performance video engine coupled with H.265 (HEVC) hardware decoding and 1080p/4K video decoding. Moreover, display interfaces of different specifications allow flexible application of the device in intelligent retailing, new retailing, financial self-service terminals, and other scenarios.

Specifications
CPU
Rockchip RK3566, Quad core, ARM Cortex-A55, 1.8GHz (Max)
Memory
4GB (up to 8GB)
Storage
32GB (up to 128GB) 1 x Micro-SD (up to 128GB)
Ethernet
1 x RJ45, 10M/100M/1000Mbps
4G LTE (AT&T, Verizon)
Optional
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Display
1 x HDMI, Type-A 1 x 4-lane eDP, 2560 x 1600 @60Hz 1 x 8-lane MIPI DSI (including 4 lanes multiplexed as LVDS), single-channel MIPI DSI: 1920 x 1080 @60Hz, LVDS: 720P @60Hz; dual-channel MIPI DSI: 2560 x 1440 @60Hz
Audio
1 x 3.5mm Combo audio jack
Speaker
1 x Speaker connector
Camera
1 x MIPI CSI-2, 2 x 10 x 2.0mm
Serial port
2 x RS232, DB9 Connector 2 x RS232/RS485, DB9 Connector
USB
4 x USB 2.0 Type-A (USB OTG supported) 1 x USB 3.0
SIM slot
1 x SIM card slot
GPIO
8 x GPIO, 3.3V
Watchdog
Supported
RTC
Supported
Mini-PCIe
1 x Mini-PCIe for 4G LTE module
Button
1 x ON/OFF button 1 x Reset button
LED
1 x Power LED (Red) 1 x System LED (Green) 1 x 4G LED (Green) 1 x User defined (Green)
OS
Android 11, GMS certified (Optional: Linux OS)
Device management platform
BlueSphere MDM
Input
12V/24V 3A DC (±5%), 1 x 3 x 3.81mm
Consumption
15W
Dimensions
160mm x 110mm x 30mm (Enclosure only) 195mm x 110mm x 30mm (With mounting bracket)
Weight
680g
Temperature
Operating: 0℃~+60℃ Storage: -40℃~+85℃
Humidity
Operating: RH 5%~95% Storage: RH 5%~95%
Certification
FCC ESD: ±4KV (contact) and ±8KV (air)
Product Name
IBOX66 RK3566 ARM-based Embedded Industrial Computer
Documentation
Vantron IBOX66 Embedded Industrial Computer Datasheet -V2.9.pdf
IBOX66 Embedded Industrial Computer Datasheet
IBOX66 Embedded Industrial Computer User Manual -V1.7.pdf
IBOX66 Embedded Industrial Computer User Manual
