Features

◆ Quad-core ARM Cortex-A17 processor

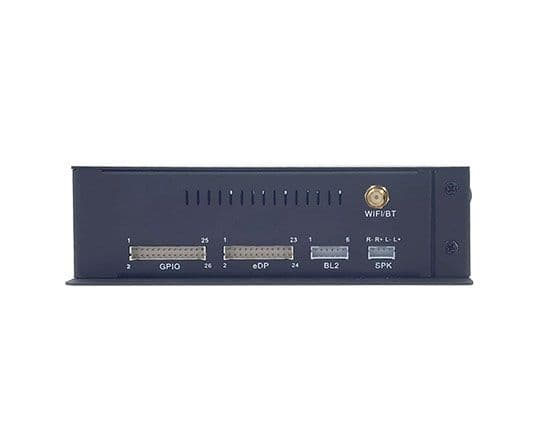

◆ eDP/LVDS/VDD interface for display

◆ 6 x USB Type-A, 1 x USB Type-C, 6 x COM port

◆ Wi-Fi/BT/4G/ETH for communication

◆ Industrial-grade wide temperature design

◆ Ability to withstand harsh environments

◆ Industrial longevity

Description
Specifications
Documentation

Vantron IBOX88 Embedded Industrial Computer is a low-power industrial computer independently developed by Chengdu Vantron Technology Co., Ltd. to meet the challenges of today’s IIOT application scenarios. While combining wireless cellular network, routing technology and industrial computer technology, the industrial computer is powered by 1.8 GHz Rockchip RK3288 ARM-A17 highperformance processor to ensure high computing power for various applications including intelligent retailing, new retailing, financial selfservice terminals, and other scenarios. It also supports ultra-high-definition video outputs as it offers a high-performance video engine coupled with hardware decoding of H.265 (HEVC) and 1080p video resolution.



As it provides rich peripheral interfaces, a wide range of peripheral devices can be connected for extended applications, including barcode scanners, cameras, barcode printers and keyboard plates. Above all, its rich and strong performance, ultra-low power consumption, reliable and stable quality and excellent cost performance are second to none for smart business applications. When teaming IBOX88 with Vantron BlueSphere, a self-developed device management platform, users will have better experience in remote upgrade, real-time data monitoring, reporting and analysis, remote operation and maintenance of field devices.

Specifications
CPU
RK3288W, Quad core, ARM Cortex-A17, 1.6GHz (Max)
Memory
2GB (Optional: 4 GB)
Storage
16GB (up to 64GB) 1 x Micro-SD (up to 128GB)
Ethernet
1 x RJ45, 10M/100M/1000Mbps
4G LTE (AT&T, Verizon)
Optional
Wi-Fi & Bluetooth
Wi-Fi 802.11 b/g/n + BT 4.0
Display

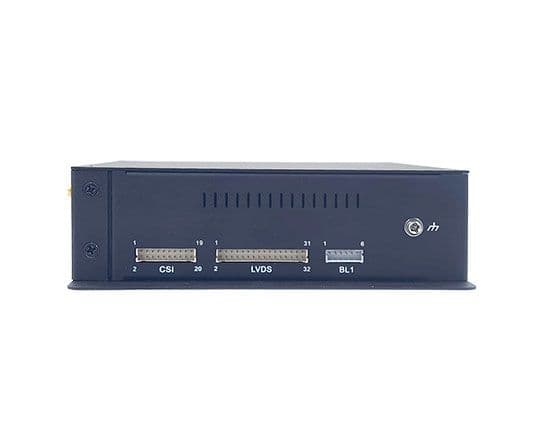

1 x HDMI, Type-A 1 x 4-lane eDP, 4K@30Hz, with LCD backlight connector 1 x 8-lane LVDS, 1080P@60Hz, with LCD backlight connector
Audio
1 x Headphone jack 1 x Mic jack 1 x Speaker connector
Camera
1 x MIPI CSI-2, 2 x 10 x 2.0mm
Serial port

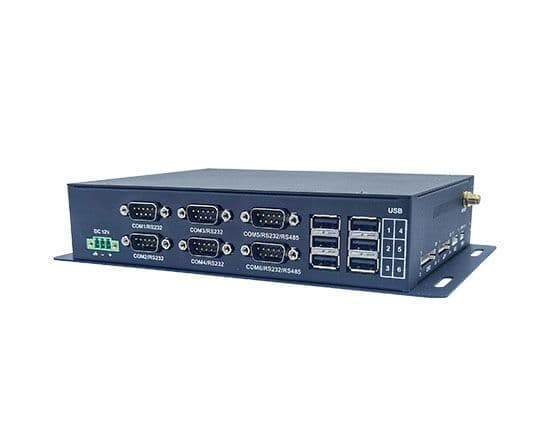

2 x RS485/RS232, DB9 connector 4 x RS232, DB9 connector
USB
6 x USB 2.0 Type-A 1 x USB 2.0 Type-C (USB OTG supported)
SIM slot
1 x SIM card slot
GPIO
8 x GPIO, 3.3V
RTC
Supported
Watchdog
Supported
Mini-PCIe
1 x Mini-PCIe for LTE module
Button
1 x ON/OFF button 1 x Reset button
LED indicator
1 x Power indicator 1 x System indicator 1 x 4G indicator 1 x User defined indicator
OS
Android 10, Linux + QT
Device management platform
BlueSphere MDM (Android devices only)
Input
12V/24V 3A DC (±5%), 3-pin 3.81mm power connector
Consumption
15W
Dimensions
187.4 x 145 x 42mm (Enclosure only) 220 x 145 x 42mm (With brackets)
Weight
1kg
Temperature
Operating: -20℃~+70℃ Storage: -40℃~+85℃
Humidity
Operating: RH 5%~95% Storage: RH 5%~95%
Certification
FCC ESD: ±4KV (contact) and ±8KV (air)
Product Name
IBOX88 RK3288 ARM-based Embedded Industrial Computer
Documentation
Vantron IBOX88 Embedded Industrial Computer Datasheet - V2.4.pdf
IBOX88 Embedded Industrial Computer Datasheet
