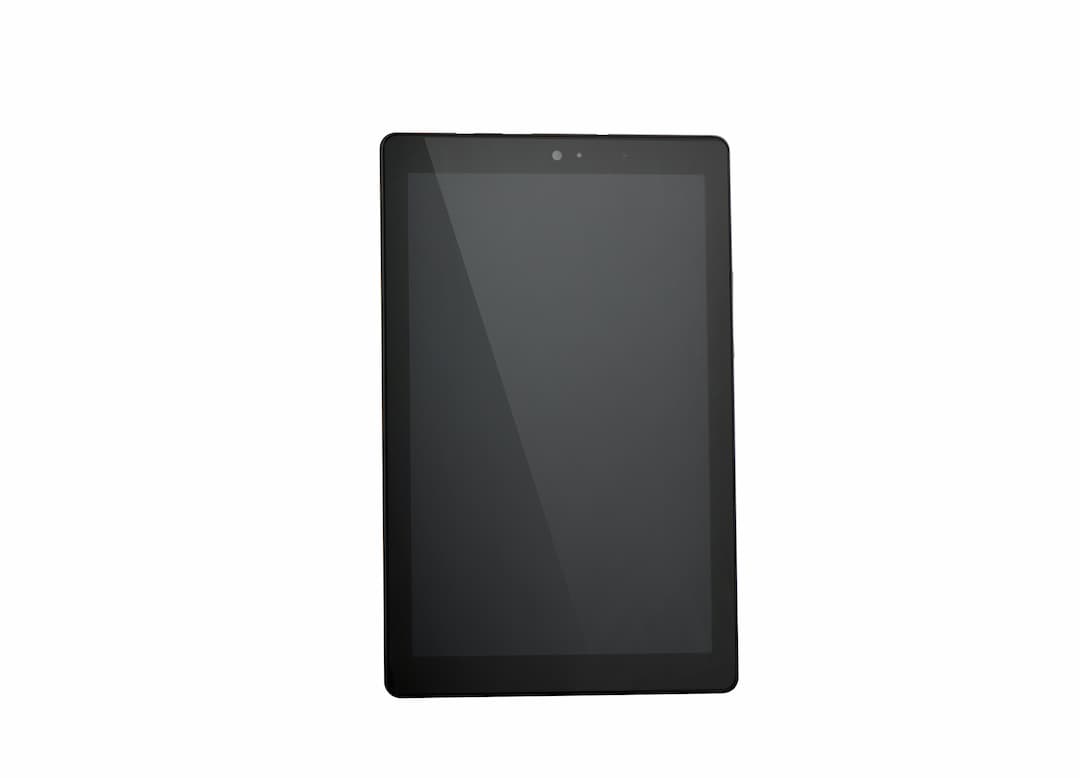

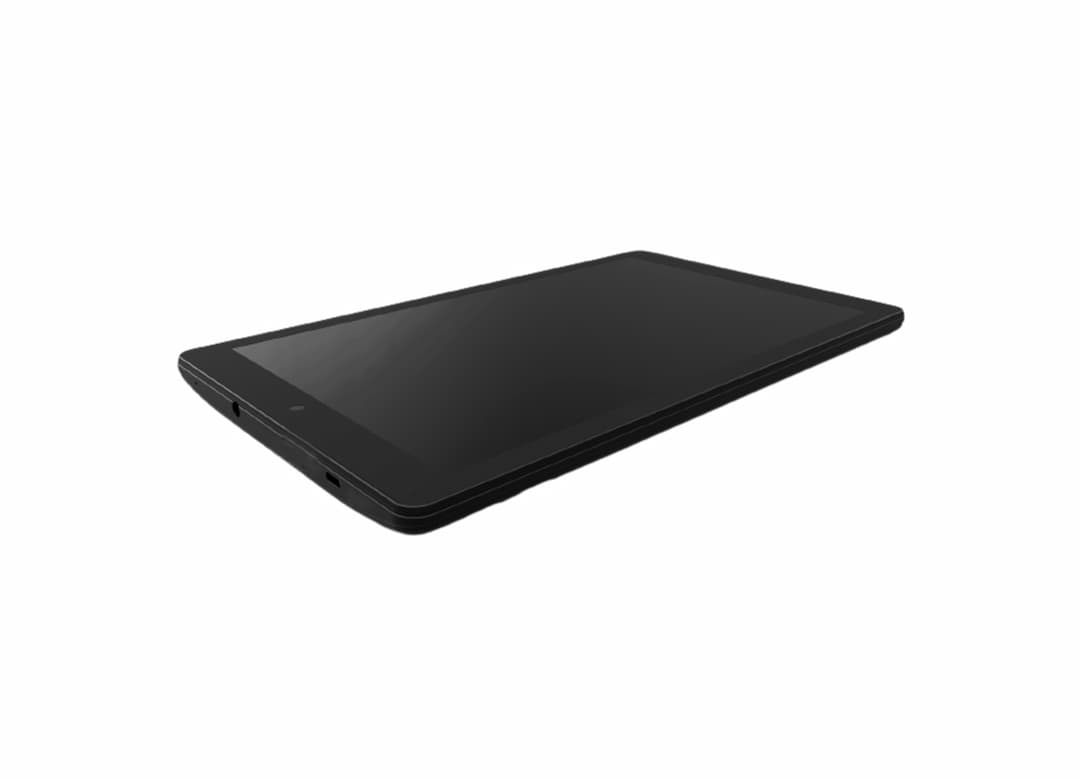

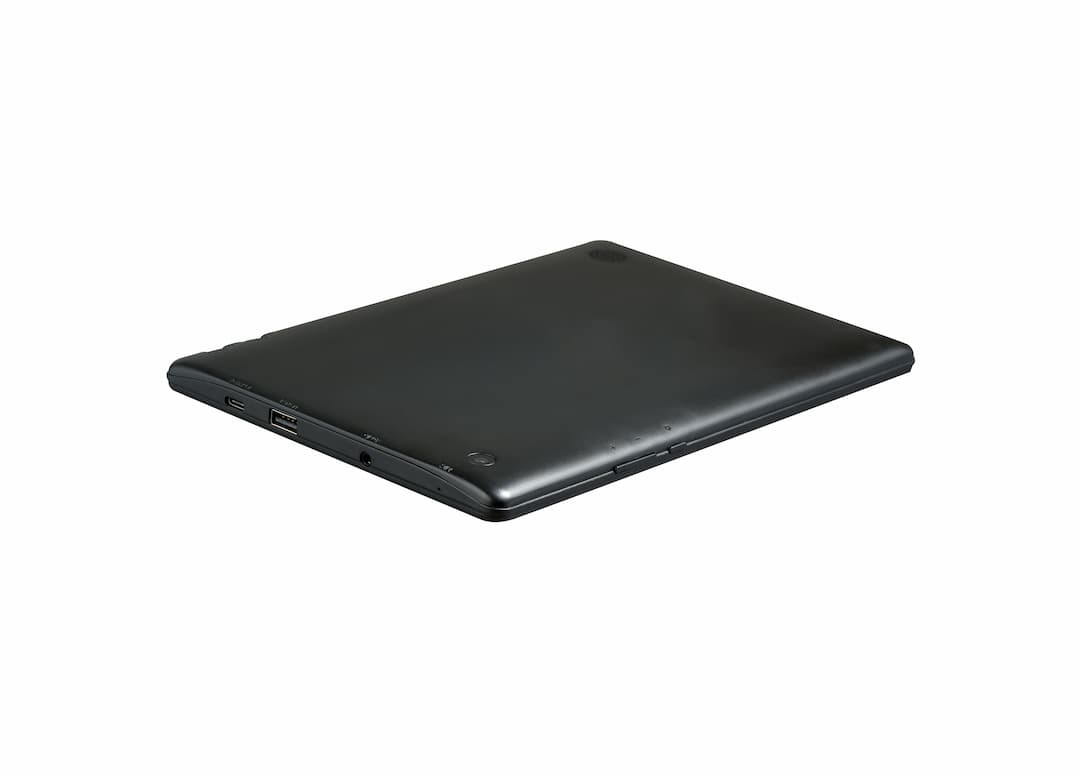

M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)
M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)

M10 Pro 10" Android General-purpose Industrial Tablet (Advanced edition)

Features

◆ Android 11, GMS certified

◆ 4GB Memory and 32GB Storage

◆ Front camera: 5MP, fixed focusRear camera: 8MP, auto focus

◆ 8000mAH Battery with charging indicator

◆ 10.1" IPS TFT LCD , Resolution: 1280 x 800, Brightness: 280cd/m2

◆ Dual band Wi-Fi 802.11 ac/a/b/g/n + BT5.0

◆ USB Type-C ,9V/2A fast charging & data transmission supported

◆ 4G, AT&T and Verizon certified

◆ NFC supported

◆ Light sensor and proximity sensor supported

Description
Specifications
Documentation

Vantron M10 series high-performance Android tablets are independently developed by Vantron Technology Co., Ltd. for industrial applications. The tablets run on Rockchip multi-core processor with a 10-inch capacitive touch screen to offer excellent human-machine interactive experience. While featuring flexible specification options, large battery capacity, and outperforming power management system,the tablets provide both wired and wireless connectivity to meet different requirements for application in retail businesses, multi-media education, transportation, laboratories, and libraries.

Models available under this series are M10 Lite and M10 Pro. M10 Lite is a compact edition which retains the most basic features of industrial tablets and provides a low-cost solution for clients with performance guarantee. While M10 Pro is an advanced edition that enhances CPU performance and upgrades certain specifications. Moreover, it is equipped with functions such as 4G, NFC, larger battery capacity and LED indicators to respond to the needs of more industrial scenarios in a more flexible manner.

Specifications
CPU
Rockchip RK3566, Quad core, ARM Cortex-A55, 1.8GHz (Max)
GPU
Mali-G52
Memory
2GB (Optional:4GB)
Storage
16GB (Optional: 32GB), 1 x Micro-SD Slot, up to 128GB
Wi-Fi & Bluetooth
Wi-Fi 802.11 ac/a/b/g/n + BT 5.0
4G LTE
LTE CAT 4 (Optional)
NFC
Optional
Display
10.1" IPS TFT LCD, Resolution: 1280 x 800, Brightness: 280cd/m2
TP
10-point capacitive touch screen
Camera
Rear camera: 8MP, auto focus
Audio
1 x 3.5mm combo audio jack, 1 x 1W/8Ω Speaker, 1 x Mic
USB
1 x USB 2.0 Type-A, 1 x USB 2.0 Type-C (USB OTG supported)
SIM slot
1 x Micro-SIM slot
RTC
Supported
Light sensor
Optional
Proximity sensor
Optional
G-Sensor
Supported
OS
Android 11, GMS certified
Input
Type-C USB power input, 5V/2A DC (Default) (9V/2A DC fast charge supported)
Battery
Single Li-ion battery: 8000mAh/3.8V
Dimensions
255mm x 161.5mm x 13.2mm
Temperature
Operating: 0℃~+45℃, Storage: -20℃~+45℃
Humidity
Operating: RH 20%-80%, Storage: RH 20%-80%
Product Name
M10 Pro 10" Android General-purpose Industrial Tablet
Documentation
Vantron M10 Series 10“ General-purpose Industrial Tablet Datasheet-V2.2.pdf
M10 Series Industrial Tablet Datasheet
Vantron M10 Pro Industrial Tablet User Manual -V1.2.pdf
Vantron M10 Pro Industrial Tablet User Manual
