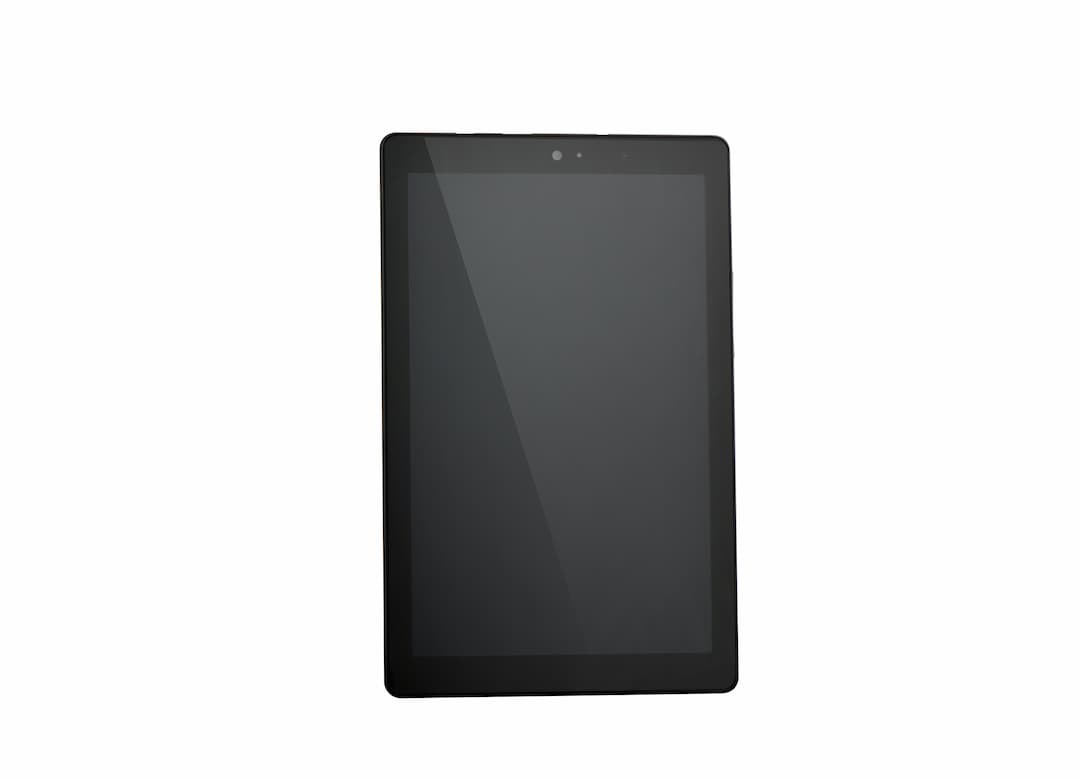

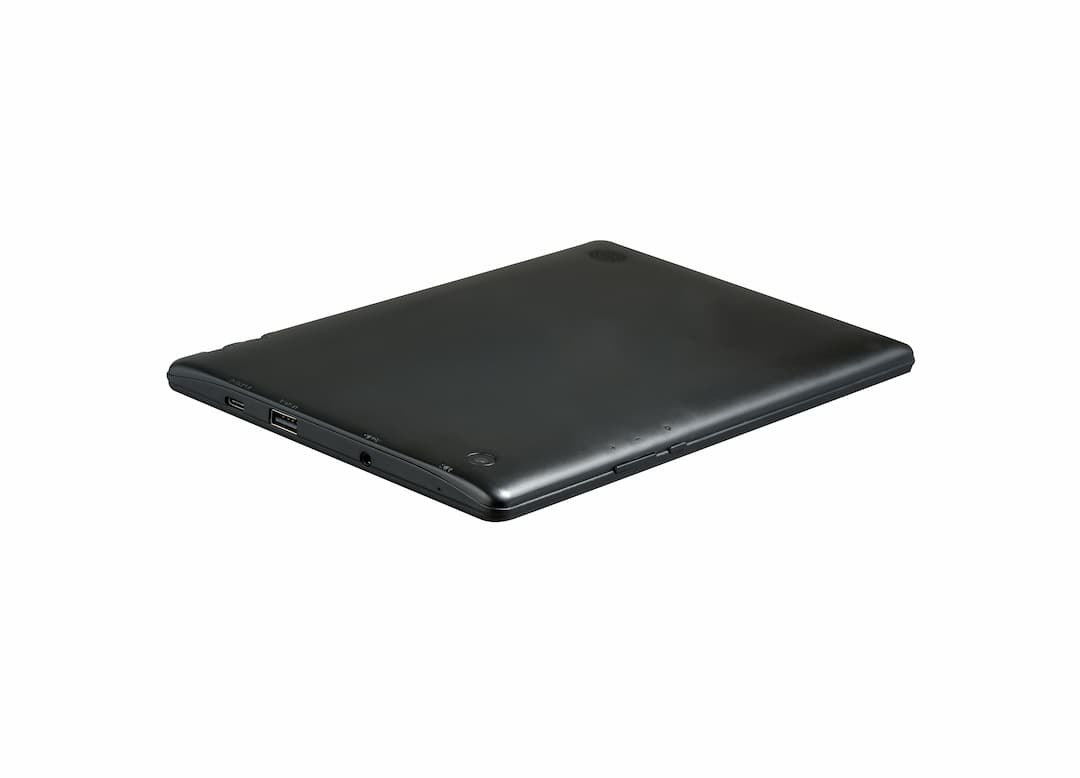

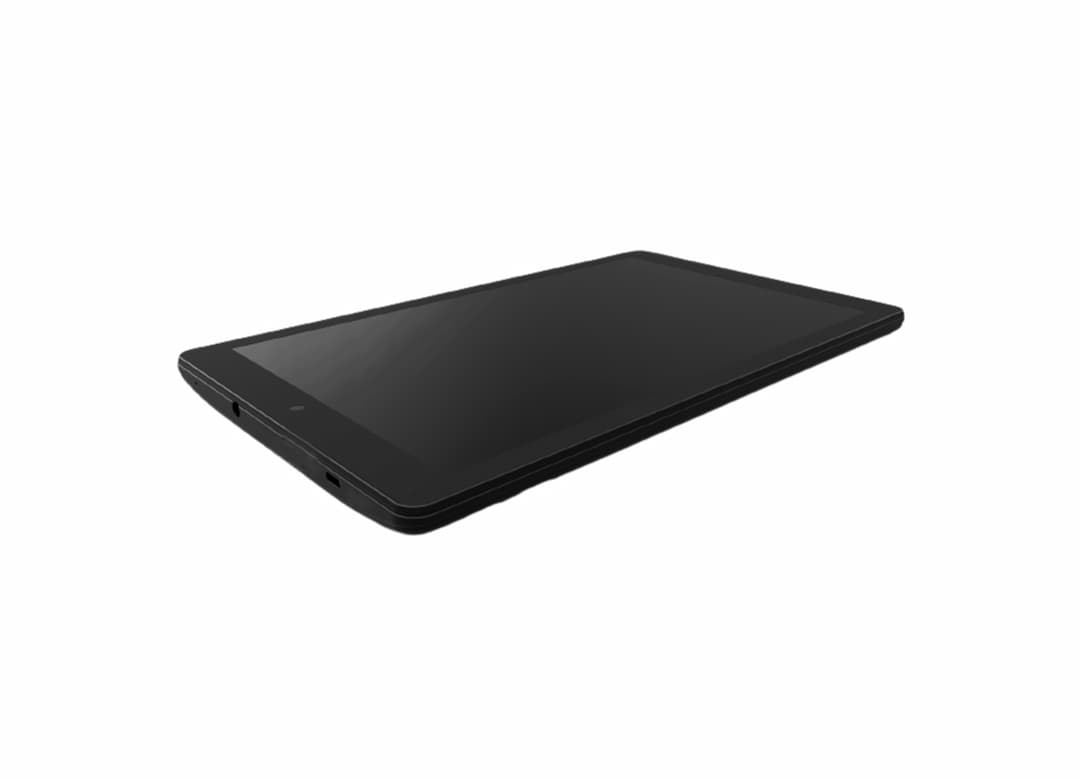

M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)
M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)

M10 Lite 10" Android General-purpose Industrial Tablet (Compact edition)

Features

◆ Android 10
◆ 2GB Memory and 16GB Storage
◆ Front camera: 2MP, Rear camera: 2MP
◆ 4000mAH Battery (up to 8000mAH)
◆ 10.1" IPS TFT LCD Resolution:1280x800 Brightness: 280cd/m2
◆ Wi-Fi 802.11 b/g/n + BT4.0 (expandable)
◆ USB Type-C Charging & data transmission supported

Description
Specifications
Documentation

Vantron M10 series 10” general-purpose industrial tablets are powered by Rockchip multi-core processor with a 10-inch capacitive touchscreen to offer excellent human-machine interactive experience. This series supports cloud connectivity to Vantron BlueSphere device management platform for centralized management. The devices feature flexible specification options, large battery capacity, and out-performing power management system to meet different requirements for application in retail businesses, multi-media education, transportation, laboratories, and libraries.


Models available under this series are M10 Lite and M10 Pro. M10 Lite is a compact edition which retains the most basic features of industrial tablets and provides a low-cost solution for clients with performance guarantee. While M10 Pro is an advanced edition that enhances CPU performance and upgrades certain specifications. Moreover, it is superior in functions such as 4G, NFC, larger battery capacity and LED indicators to respond to the needs of more industrial scenarios in a more flexible manner.

Specifications
CPU
Rockchip RK3326, Quad core, ARM Cortex-A35, 1.3GHz (Max)
Memory
2GB (Optional: 1GB)
GPU
Dvalin
Storage
16 GB 1 x Micro-SD slot, up to 128GB
Wi-Fi & Bluetooth
Wi-Fi 802.11 b/g/n + BT 4.0 (Optional: Wi-Fi 802.11 ac/a/b/g/n + BT 5.0)
4G LTE
NA
NFC
NA
Display
10.1" IPS TFT LCD, Resolution: 1280x800, Brightness: 280 cd/m2
TP
5-point capacitive touch screen
Camera
Front camera: 2MP, fixed focus; Rear camera: 2MP, fixed focus
Audio
1 x 3.5mm combo audio jack 1 x 0.8W/8Ω speaker 1 x Mic
USB
1 x USB 2.0 Type-C (USB OTG supported)
Button
1 x Power on/off, 1 x Volume -/+
SIM slot
NA
Light sensor
NA
Proximity sensor
NA
G-Sensor
Supported
RTC
Supported
OS
Android 10
Input
Type-C USB power input, 5V/2A DC
Battery
Single Li-ion battery: 4000mAh/3.7V (Optional: 8000mAh/3.8V)
LED
NA
Dimensions
255mm x 161.5mm x 13.2mm
Temperature
Operating: 0℃~+45℃, Storage: -20℃~+45℃
Humidity
Operating: RH 20%-80%, Storage: RH 20%-80%
Certification
FCC (Part 15 class B), ESD (contact: ±4KV and air: ±8KV)
Product Name
M10 Lite 10" Android General-purpose Industrial Tablet
Documentation
Vantron M10 Series 10“ General-purpose Industrial Tablet Datasheet-V2.2.pdf
M10 Series Industrial Tablet Datasheet
