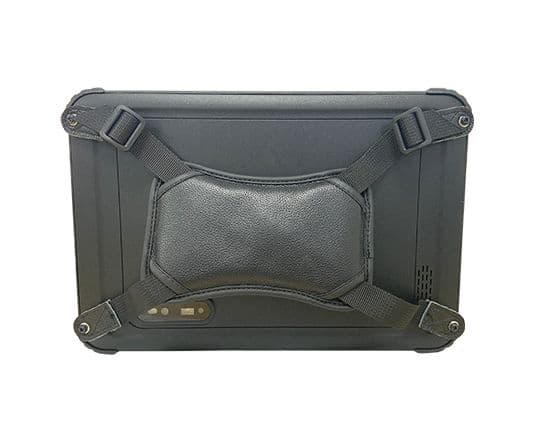

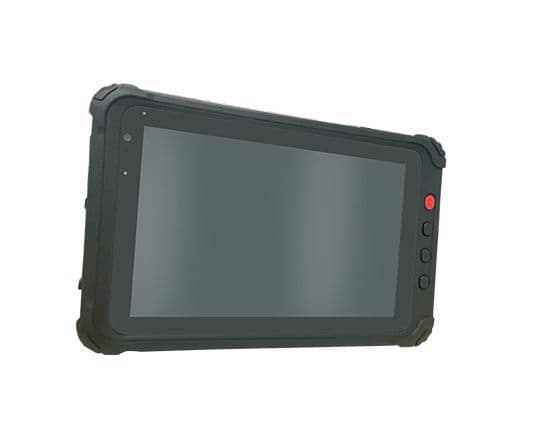

M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet
M10R1 10" Windows Rugged Indutrial Tablet

M10R1 10" Windows Rugged Indutrial Tablet

Features

◆ Automotive-grade chip
◆ Front & rear cameras, and built-in barcode scanner
◆ IPS panel, Resolution: 1920 x 1200, Brightness: 600 nits
◆ 6000mAh Battery, lasting for 8 hours
◆ IP65, 1.5m drop test to concrete on 6 sides

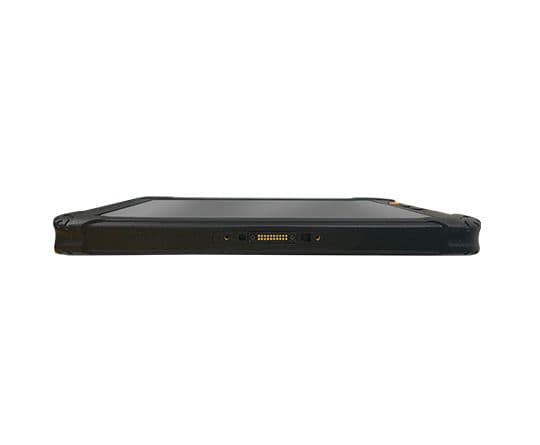

◆ Pogo pin for flexible expansion
◆ USB Type-C, 65W PD supported

Description
Specifications
Documentation

Vantron M10R1 high-performance rugged industrial tablet was designed for industrial applications, especially in healthcare, plant walk-down, law enforcement patrol, and prison automation. The device is powered by Intel® ATOM multi-core processor with a 10-inch full HD capacitive touch screen to offer excellent human-machine interaction experience.


While featuring flexible specification options, large capacity battery, and out-performing power management system, it is fully rugged with IP65 water resistance and 1.5m drop resistance design to protect the device from damage in the event of fluid spill or accident drop. Its high-brightness display ensures optimal outdoor performance and the large capacity battery is more than enough to get through a day of work.

Specifications
CPU
Intel® ATOM x5-E3940
Memory
8GB, LPDDR4
Storage
64GB, Optional: 128GB
Wi-Fi & Bluetooth
Wi-Fi 802.11 b/g/n/a/ac + BT 5.1
GNSS
GPS + BeiDou + GLONASS + Galileo, AGPS supported, built-in antenna
Display
Resolution: 1920 x 1200, Brightness: 600 nits, Contrast Ratio: 1000:1, Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
TP
10-point G + G PCAP touch screen, Finishing process: Toughening,Surface hardness: 6H,
Camera
Front camera 2MP, fixed focus, with working indicator, Rear camera 8MP, auto focus, with flash
USB
1 x USB Type-A 3.0, 1 x USB Type-C
Built-in barcode scanner
Bar width > 8Mil Pixel > 640 x 480
Extended display
1 x Mini HDMI
Pogo pin
2 x 20 pin, supporting CAN J1939, USB 3.0, 100Mbs Ethernet RJ45, Audio Jack, RS232/RS485 Combo, TJA1100HN 100Base-T1 PHY
SIM card
1 x Nano SIM card slot
Security
1 x TPM 2.0
Light sensor
1 x Light sensor
Gyro-sensor
1 x Gyro-sensor
G-Sensor
1 x G-sensor
Button
1 x Power button 3 x Function button
LED
1 x System status / Battery condition
OS
Windows 10 ITSC 2019, Linux
Input
USB Type-C power input (20V adapter required)
Battery
6000mAh/7.6V, 8 hours working time*
Material
PC, ABS
Dimensions
294mm x 192mm x 30mm
Net weight
850g
IP rating
IP65
Drop test
MIL-STD-810H, drop from 1.5m onto a plywood surface over concrete on 6 sides
Vibration
MIL-STD-810H: Method 516.8, Procedure I Operating: 20G, Idle: 40G
Thermal shock
MIL-STD-810H: Method 503.7 Operating: -20°C ~+60°C, Idle: -30°C ~+70°C
Solar radiation
MIL-STD-810H: Method 505.7
Liquid pollution
MIL-STD-810H: Method 504.3
Temperature
Operating: -20°C ~+60°C Storage: -30°C ~+70°C
Humidity
RH 5%-95% (Non-condensing)
Certification
MIL-STD-810H FCC (FCC Part 15 Class B) ISED ESD (Contact: ±4KV, Air: ±8KV)
Product Name
M10R1 10" Automotive-grade Rugged Industrial Tablet
Documentation
Vantron M10R1 10“ Rugged Industrial Tablet Datasheet - V2.4.pdf
M10R1 Industrial Tablet Datasheet
Vantron M10R1-RK35 10“ Rugged Industrial Tablet Datasheet - V1.5.pdf
Vantron M10R1-RK35 10“ Rugged Industrial Tablet Datasheet
