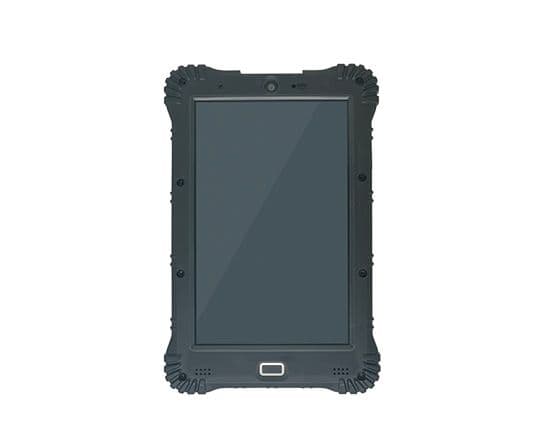

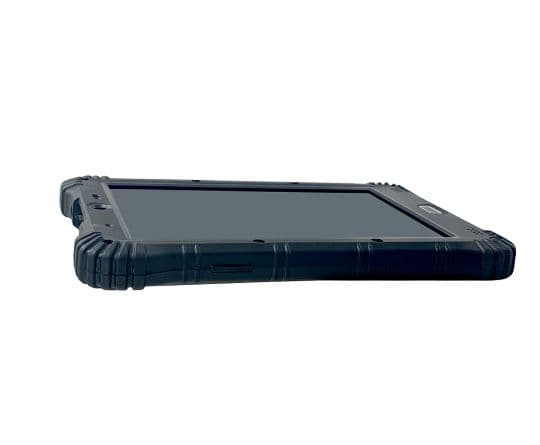

M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet
M081 8” Anrdoid Rugged Industrial Tablet

M081 8” Anrdoid Rugged Industrial Tablet

Features

◆ Android 10
◆ 2GB Memory and 16GB Storage, expandable
◆ Front camera, 5MP, fixed focus
◆ 8000mAh Battery
◆ 8" IPS TFT LCD with 2mm toughened glass Resolution: 1280 x 800, Brightness: 250cd/m2
◆ Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
◆ USB Type-C, Charging & data transmission supported
◆ Double security protection: password & fingerprint recognition
◆ Fast and convenient wireless charging

Description
Specifications
Documentation

Vantron M081 high-performance rugged industrial tablet was designed for industrial applications, especially in healthcare, plant walkdown, law enforcement patrol, and prison automation. The device is Android-based, powered by Rockchip multi-core processor with an 8-inch capacitive touchscreen to offer excellent human-machine interaction experience.


While featuring flexible specification options, excellent cost performance, and out-performing power management system, it is fully rugged for water, dust and vibration resistance so as to protect the screen from damage in extreme conditions. It provides different wireless accesses for communication in a safe and secure manner. The large-capacity battery is more than enough to get through a day of work. Better yet, it supports wireless charging to ensure the device holder misses nothing in the hectic schedule.

Specifications
CPU
RK3288W, Quad core, ARM Cortex-A17, 1.6GHz (Max)
GPU
Mail-T764
Memory
2GB (Optional: 4GB)
Storage
16 GB, up to 64 GB
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
FM
Optional
NFC
Optional
Display
8" IPS TFT LCD, Resolution: 1280 x 800, Brightness: 250 cd/m2
TP
5-point capacitive touch screen
Camera
Front camera: 5MP, Fixed focus
Audio
1 x 3.5mm combo audio jack, 2 x 0.8W/8Ω speaker, 1 x Mic
USB
1 x USB 2.0 Type-C (USB OTG supported)
RTC
Supported
Light sensor
Supported
Proximity sensor
Supported
G-Sensor
Supported
Fingerprint sensor
Optional
Button
1 x Power on/off, 1 x Volume -/+
LED
Red: Low power, Green: Fully charged
OS
Android 10
Battery
Single-cell Li-ion battery: 8000mAh/3.7V
Wireless charging
Optional
Dimensions
235mm x 153mm x 21mm
Temperature
Operating: -10℃~+60℃, Storage: -20℃~+70℃
Humidity
Operating: RH 20%-80%, Storage: RH 20%-80%
Certification
FCC (Part 15 class B), ESD (Contact: ±4KV and Air: ±8KV)
Product Name
M081 8" Industrial-grade Rugged Industrial Tablet
OTA tool
BlueSphere OTA
Device management platform
BlueSphere MDM
Documentation
Vantron M081 8“Rugged Industrial Tablet Datasheet - V2.4.pdf
M081 Industrial Tablet Datasheet
