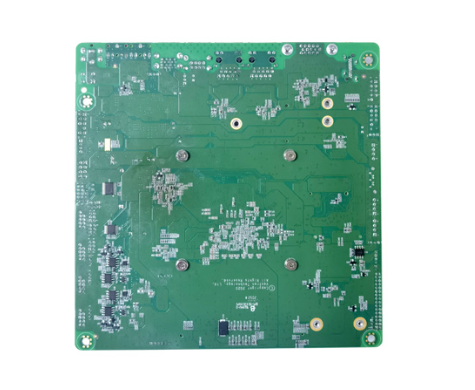

VT-MITX-APL ApolloLake X86-based Single Board Computer
VT-MITX-APL ApolloLake X86-based Single Board Computer
VT-MITX-APL ApolloLake X86-based Single Board Computer
VT-MITX-APL ApolloLake X86-based Single Board Computer
VT-MITX-APL ApolloLake X86-based Single Board Computer
VT-MITX-APL ApolloLake X86-based Single Board Computer

VT-MITX-APL ApolloLake X86-based Single Board Computer

Features

◆ Windows 10 operating system
◆ Supporting up to 8GB DDR3L, 1866 MHz
◆ Rich interfaces, flexible expansion
◆ High-definition video encoding and decoding
◆ TPM module
◆ RTC supported
◆ USB 2.0 & USB 3.0
◆ Wide temperature range supported

Description
Specifications
Documentation

VT-MITX-APL Single Board Computer is in line with international industry size standards. It is powered by Intel® Celeron® APL-N3350 quad core processor, and customers have the choice between Windows 10 and Linux operating systems. The board supports multi-channel display outputs and high-definition video encoding and decoding technology to provide outstanding visual experience. Better yet, it provides rich on-board interfaces and customer expansion options to meet different application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.


Featuring high flexibility and high performance, the board could work under extreme environments with extended temperatures ranging from -20℃ to +60℃, making it a reliable industrial IoT solution.

Specifications
CPU
Intel® CoreTM, APL-N3350, Quad core, 2.4GHz (Max) (Optional: N4200)
Memory
DDR3L SO-DIMM socket, 1866 MHz, up to 8GB
Storage
1 x SATA 3.0
Display
1 x HDMI 1.4b, 3840 x 2160 @30Hz 1 x Dual-channel LVDS, 1920 x 1200 @30Hz 1 x VGA, 1920 x 1200 @60Hz
Audio
1 x 3.5mm Audio jack, 1 x 3.5mm Mic jack, 1 x Audio connector, 2 x Speaker connector,
Serial
2 x RS232, 2 x RS232/RS422/RS485
USB
2 x USB 2.0 Type-A, 2 x USB 3.0 Type-A, 4 x Built-in USB 2.0 ,
GPIO
1 x 8-bit GPIO
RTC
Supported
Slot
1 x Full Mini-PCIe for 4G with SIM slot 1 x M.2 B-key, 2242 for SATA SSD or 3052 for 5G 1 x M.2 E-key 2230, for Wi-Fi & BT
TPM
1 x TPM
Button
1 x Standard power/reset button
Indicator
1 x Status LED
Input
12V DC
Consumption
10W+
Operating system
Windows 10, Linux
Dimensions
MITX standard board, 170mm x 170mm
Cooling mode
Fan, heat sink
Temperature
Operating: -20℃~+60℃
Humidity
RH 10%-85% (Non-condensing)
Certification
RoHS
Product Name
VT-MITX-APL X86-based Single Board Computer
Documentation
VT-MITX-APL Single Board Computer Datasheet - V2.0.pdf
VT-MITX-APL Industrial Motherboard DataSheet
VT-MITX-APL Single Board Computer User Manual- V1.3.pdf
VT-MITX-APL Single Board Computer User Manual
