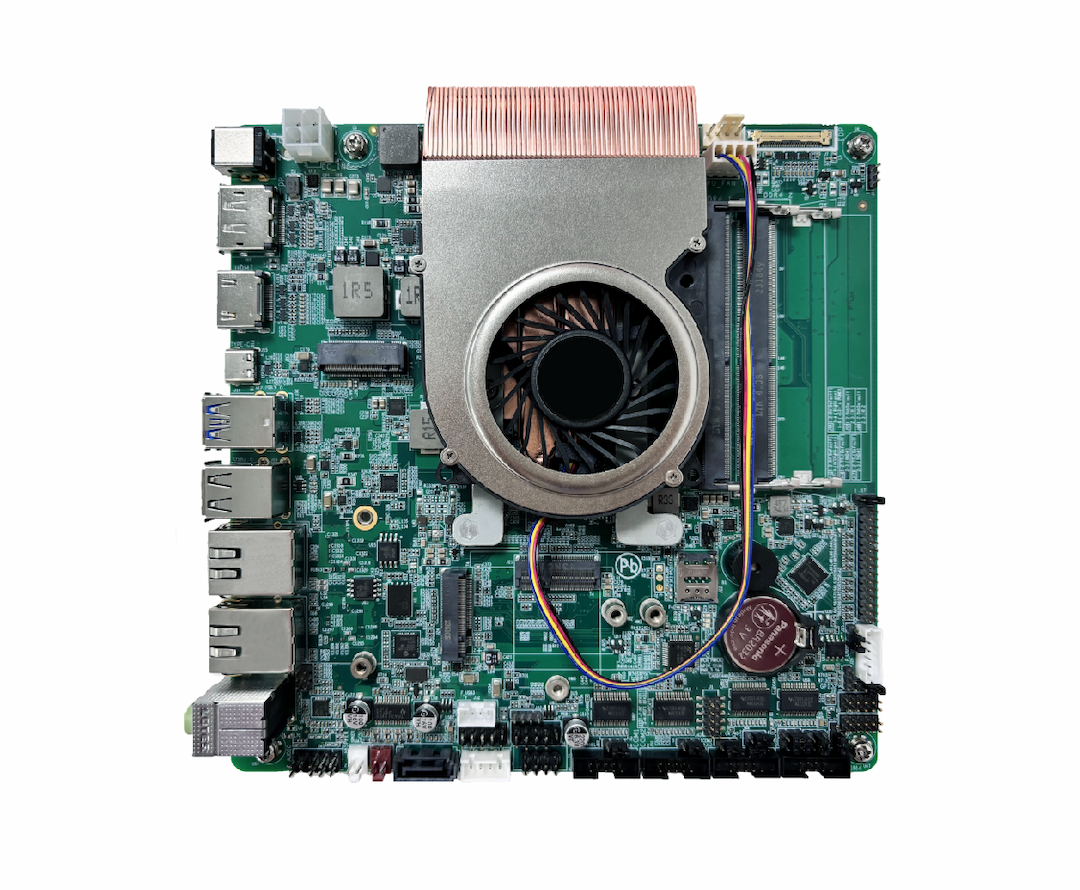

VT-MITX-TGL TigerLake X86-based Single Board Computer
VT-MITX-TGL TigerLake X86-based Single Board Computer
VT-MITX-TGL TigerLake X86-based Single Board Computer
VT-MITX-TGL TigerLake X86-based Single Board Computer

VT-MITX-TGL TigerLake X86-based Single Board Computer

Features

◆ 11th Gen Intel® Core™ U-Series i3-1115G4 processor

◆ Windows 10/Linux operating system

◆ 2 x DDR4 SO-DIMM, up to 64 GB

◆ Rich interfaces, flexible expansion

◆ High-definition video encoding and decoding

◆ PoE optional

◆ RTC + Watchdog

◆ USB 3.1 & USB 2.0

◆ Wide temperature range supported

Description
Specifications
Documentation

VT-MITX-TGL Single Board Computer is in line with international industry size standards. It runs Windows 10 with the latest 11th Gen Intel® Core™ processor that combines best-in-class technologies to offer the best user experience. It supports high-definition video encoding and decoding to provide outstanding visual experience. Better yet, it provides rich interfaces and customer expansion options to meet varying application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.


Featuring high flexibility and high performance, the board could work under extreme environments with extended temperatures ranging from -40℃ to +85℃, making it a reliable solution for industrial applications.

Specifications
CPU
11th Gen Intel® Core™ U-Series i3-1115G4/ i5-1155G7/ i7-1195G7
Memory
2 x DDR4 SO-DIMM socket, 3200MHz, up to 64GB
Storage
1 x SATA 3.0 Expandable by an M.2 M-Key slot
Ethernet
2 x RJ45, 10M/100M/1000M Base-T (2 x Microchip® 1Gbps PCIe controller)
Graphics
Intel® Iris® Xe Graphics
Display
1 x HDMI: Resolution up to 4096 x 2160@24Hz 1 x DP: Resolution up to 4096 x 2160@24Hz 1 x eDP: Resolution up to 4096 x 2160@60Hz 1 x LVDS/eDP with backlight control: LVDS, resolution up to 1920 x 1200@60Hz eDP, resolution up to 4096 x 2160@60Hz
Audio CODEC
Realtek® 5.1 channel HDA Codec
Audio interface
1 x Mic/Line-out 2 x Speaker connector 1 x Headphone jack 1 x Microphone jack
Serial
2 x RS232 2 x RS232/RS422/RS485
USB
USB 2 x USB 2.0 Type-A 2 x USB 3.0 Type-A 1 x USB 3.0 Type-C 3 x Built-in USB 2.0
GPIO
16 x GPIO
SMBUS
1 x SMBUS header
M.2
1 x M.2 B-Key (3042/3052, PCIe x 1 / USB 3.1 for 4G/5G) 1 x M.2 M-Key (2242/2280, PCIe x 4 / SATA/NVMe) 1 x M.2 E-Key (2230, PCIe x 1 / USB 2.0/CNVi)
SIM
1 x SIM card holder (connected to M.2 B-Key)
BIOS
AMI UEFI BIOS with 256 Mb SPI Flash
H/W monitor
Voltages & temperatures
RTC
Processor integrated RTC
Watchdog
Programmable WDT to generate system reset events
Security (optional)
TPM 2.0 supported (Infineon SLB 9670)
Front panel header
1 x Reset Button, HDD LED & External Speaker 1 x Power Button, Power LED & SMBUS 1 x M.2 B-Key activity LED 1 x M.2 E-Key activity LED
Indicator
1 x Standby LED (Yellow, onboard) 1 x Power LED (Green, onboard)
Fan/fanless
2 x Standard fan connector; 1 x Heat sink
Input
12V~36V DC (1 x 4-pin power header, 1 x Power jack)
Operating system
Windows 10, Linux
Dimensions
170 x 170mm
Temperature
Operating: 0℃~+60℃ (Optional: -40℃~+85℃) Storage: -20℃~+75℃ (Optional: -55℃~+85℃)
Certification
CCC, UL, FCC (Part 15 class B), ESD (contact: ±8KV and air: ±12KV)
Product Name
VT-MITX-TGL X86-based Single Board Computer
Documentation
VT-MITX-TGL Single Board Computer Datasheet - V2.4.pdf
VT-MITX-TGL Industrial Motherboard Datasheet
VT-MITX-TGL Single Board Computer User Manual- V1.3.pdf
VT-MITX-TGL Industrial Motherboard User Manual
