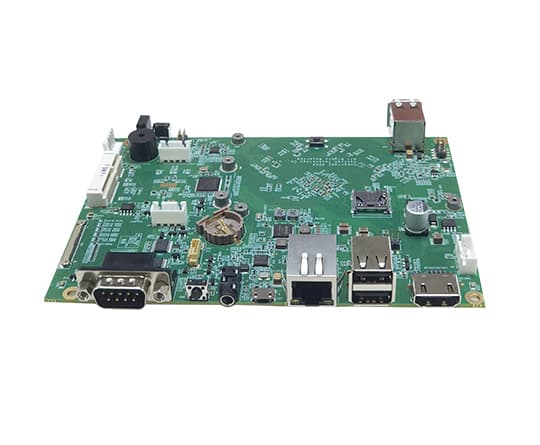

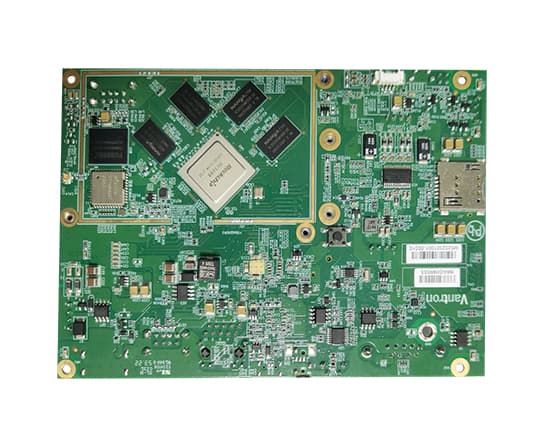

VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer
VT-SBC-RK35M RK3288 ARM-based Single Board Computer

VT-SBC-RK35M RK3288 ARM-based Single Board Computer

Features

◆ Rockchip RK3288 processor

◆ 2GB DDR

◆ Rich interfaces, flexible expansion

◆ High-definition video encoding and decoding

◆ Ethernet/Wi-Fi & BT

◆ RTC supported

◆ USB 2.0

◆ Wide temperature range supported

Description
Specifications
Documentation

VT-SBC-RK35M Single Board Computer is 3.5” in size, powered by Rockchip RK3288 processor that provides optimized performance with lowest power consumption. It supports high-quality video encoding and decoding to maximize display performance. With both wired and wireless network accesses available, user data is kept safe and secure in transmission. Meanwhile, the single board computer provides a complete set of on-board interfaces and customer expansion options to meet different application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.


Featuring high flexibility and high performance, the single board computer could work under extreme environments with extended temperatures ranging from -20℃ to +60℃, making it a reliable industrial IoT solution.

Specifications
Product Name
VT-SBC-RK35M ARM-based Single Board Computer
CPU
Rockchip RK3288W, Quad-core ARM Cortex-A17, 1.6GHz (Max.)
GPU
Mali-T764, up to 500MHz
Memory
2GB DDR
Storage
32GB 1 x Micro SD slot
Ethernet
1 x RJ45, 1000 Mbps
Wi-Fi & BT
Wi-Fi 802.11a/b/g/n/ac + BT 5.0
4G
Optional, Expansion by the mini PCIe slot
Display
1 x HDMI 2.0 Type-A 1 x 4-lane eDP/Dual LVDS
Audio
1 x Audio connector 2 x 3W/8R Speaker connector
Serial
1 x RS232 (DB9) 1 x RS232/RS485/RS422 1 x RS232 for debugging (3.5mm audio jack)
USB
4 x USB 2.0 Type-A 3 x USB 2.0 Host connector 1 x Micro USB (OTG supported)
Sensor
1 x 3-axis accelerometer
RTC
Supported
Mini PCIe
1 x Mini PCIe for 4G
Button
1 x Power button 1 x Recovery/Volume + button 1 x Reset button
Indicator
2 x Status LED
Input
9-36V DC (1 x 4 x 2.54mm terminal)
Operating system
Android, Linux
SDK
Available
Dimensions
146mm x 102mm
Cooling mode
Fanless, Heat sink
Temperature
Operating: 0℃~+50℃ (25℃ recommended) Storage: -20℃~+60℃ (25℃ recommended)
Humidity
Operating: RH 20%-80% (Non-condensing) Storage: RH 10%-90% (Non-condensing)
Documentation
VT-SBC-RK35M Single Board Computer Datasheet - V1.9.pdf
VT-SBC-RK35M Single Board Computer Datasheet
VT-SBC-RK35M Single Board Computer User Manual - V1.2.pdf
VT-SBC-RK35M Single Board Computer User Manual
