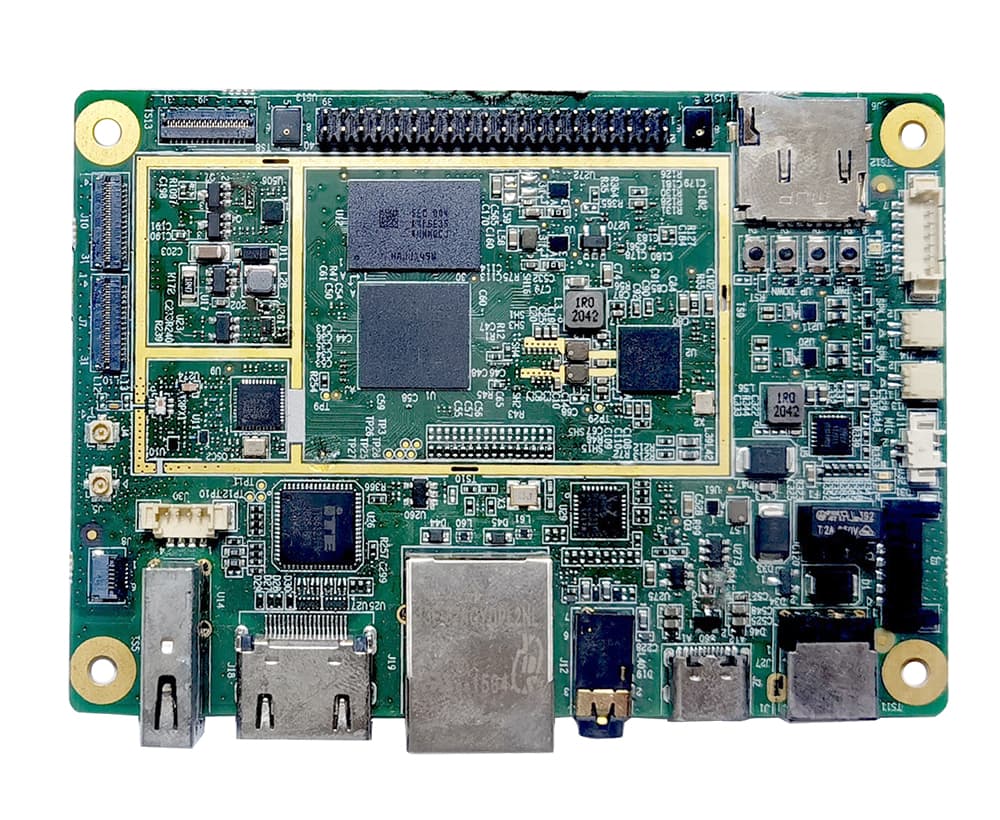

VT-SBC-I350 MT8365 ARM-based Single Board Computer
VT-SBC-I350 MT8365 ARM-based Single Board Computer
VT-SBC-I350 MT8365 ARM-based Single Board Computer
VT-SBC-I350 MT8365 ARM-based Single Board Computer

VT-SBC-I350 MT8365 ARM-based Single Board Computer

Features

◆ Android 10 operating system

◆ Up to 4GB LPDDR4-3200

◆ Rich interfaces, flexible expansion

◆ Wi-Fi & BT/ETH/GNSS for communication

◆ High-definition video encoding and decoding

◆ G sensor

◆ RTC & watchdog

◆ USB 2.0 & USB 3.0

◆ Wide temperature range supported

Description
Specifications
Documentation

VT-SBC-I350 Single Board Computer features a thinner and smaller form factor that is easy to integrate. It is powered by MTK® MT8365 (I350) processor, which integrates a fast 2GHz quad-core Arm Cortex-53 CPU and a high-performance Arm Mali-G52 GPU to deliver powerful Edge AI processing with extremely low power consumption. The board supports up to 13MP high-definition camera, which, combined with the high-definition video encoding and decoding technology, provides outstanding visual experience. Better yet, it provides rich on-board interfaces and customer expansion options to meet different application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.


Featuring high flexibility and high performance, the board could work under extreme environments with extended temperatures ranging from -20℃ to +60℃, making it a reliable industrial IoT solution.

Specifications
CPU
MTK MT8365 (I350), ARM Cortex-A53, Quad core 2.0GHz (Max)
GPU
Mali-G52, 3D graphic accelerator, capable of processing 57.6 GFLOPS and 1600M pixel/s, 800MHz
Memory
2GB LPDDR4-3200, up to 4GB
Storage
16GB eMMC 5.1, up to 64GB 1 x Micro SD slot (SDIO 3.0) 2Kb EEPROM
PMIC
MT6390
Ethernet
1 x RJ45, 10M/100Mbps, RTL8201 (Ethernet PHY)
Wi-Fi & BT
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
GNSS
GPS + Glonass + Beidou/Galileo
Display
1 x 4-lane MIPI DSI, 1920 x 1080 1 x HDMI (Type-A), up to 1920 x 1080
Camera
2 x 4-Lane MIPI CSI, 13MP, 1080P/60fps video decoder
Audio
1 x A-Mic to PMIC, 2 x D-Mic to AP (CPU), noise reduction 1 x 3.5mm combo audio jack 2 x Speaker connector
Serial
2 x UART for communication, 1x UART for debugging
USB
1 x USB 2.0 Type-C 1 x USB 2.0 Type-A (1A output)
GPIO
4 x GPIO
RTC
Powered by PMIC MT6390
Watchdog
Supported by CPU+PMIC
Debug
2 x 5 x 1.25mm JTAG
Bus
1 x I2 C for TP 1 x I2 C for external communication
Button
1 x Reset button 1 x ON/OFF button 2 x Volume -/+ button
G-sensor
3-Axis G-sensor
Input
12V DC
Operating system
Android 10
Dimensions
100mm x 75mm
Cooling mode
Fanless
Temperature
Operating: -20℃~+60℃ Storage: -40℃~+85℃
Humidity
RH 5%-95%
Certification
FCC (part 15 class B) ESD (contact: ±4KV and air: ±8KV)
Product Name
VT-SBC-I350 ARM-based Single Board Computer
Documentation
VT-SBC-I350 Single Board Computer Datasheet - V2.1.pdf
VT-SBC-I350 Single Board Computer Datasheet
VT-SBC-I350 Single Board Computer User Manual - V1.2 (1).pdf
VT-SBC-I350 Single Board Computer User Manual
