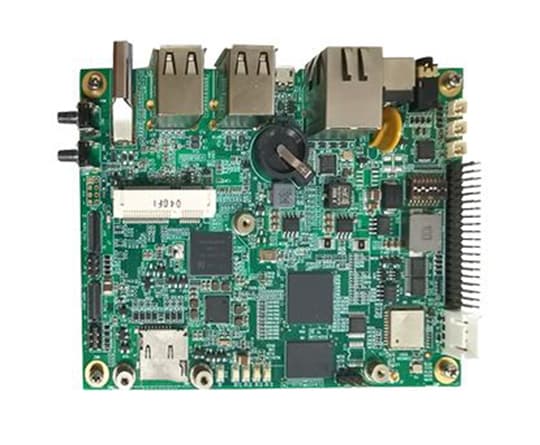

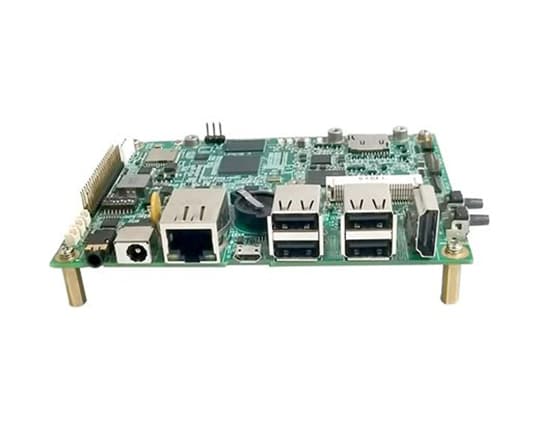

VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer
VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer
VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer
VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer
VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer
VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer

VT-SBC-IMX8MMN i.MX8M Mini/Nano ARM-based Single Board Computer

Features

◆ NXP i.MX 8M Mini processor

◆ 3GB LPDDR4

◆ Rich interfaces, flexible expansion

◆ High-definition video encoding and decoding

◆ Ethernet/Wi-Fi & BT

◆ RTC supported

◆ Multiple USB 2.0

◆ Wide temperature range supported

Description
Specifications
Documentation

VT-SBC-IMX8MMN Single Board Computer features a thinner and smaller form factor that is easy to integrate. It is powered by NXP i.MX 8M Mini processor that represents NXP’s latest video and audio experience combining state-of-the-art media-specific features, and therefore delivers outstanding system performance with lowest power consumption. While both wired and wireless network accesses are available, user data is kept safe and secure. Better yet, the single board computer provides rich on-board interfaces and customer expansion options to meet different application scenarios including smart retail, self-service terminals, industrial automation, intelligent medical health, and digital media.


Featuring high flexibility and high performance, the single board computer could work under extreme environments with extended temperatures ranging from -20℃ to +75℃, making it a reliable industrial IoT solution.

Specifications
CPU
i.MX 8M Mini, Quad-core ARM Cortex-A53, up to 1.8GHz
Memory
3GB DDR
Storage
16GB eMMC 5.1 1 x Micro SD slot
Ethernet
1 x RJ45, 10/100/1000Mbps Base-T
Wi-Fi & BT
Wi-Fi 802.11a/b/g/n/ac + BT5.0
Display
1 x 4-Lane MIPI DSI 1 x HDMI
Camera
1 x 4-Lane MIPI CSI
Audio
1 x Mic 2 x Speaker connectors 1 x 3.5mm audio jack
Serial
1 x RS232/RS485 1 x RS232 1 x Debug RS232
USB
1 x Micro USB 2.0 OTG 4 x USB 2.0 Type-A
GPIO
8 x GPIO, 3.3V
RTC
Supported
Bus
1 x I2C for TP 1 x I2C for backlight control 1 x Mini PCIe 1 x SPI
G-sensor
1 x G-Sensor, 3-Axis
Button
1 x Reset button 1 x ON/OFF button
Indicator
4 x User defined LED 1 x Power LED 1 x 4G LED
Input
5V-12V DC
Operating system
Android, Linux
Dimensions
146 x 102mm
Cooling mode
Fan
Temperature
Operating: -20℃~+75℃
Humidity
RH 5%-95% (non-condensing)
Certification
FCC, IC, RoHS
Product Name
VT-SBC-IMX8MMN ARM-based Single Board Computer
Documentation
VT-SBC-IMX8MMN Single Board Computer Datasheet - V2.2.pdf
VT-SBC-IMX8MMN Single Board Computer Datasheet
