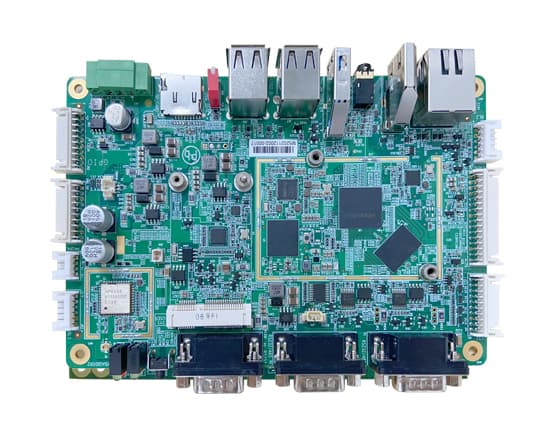

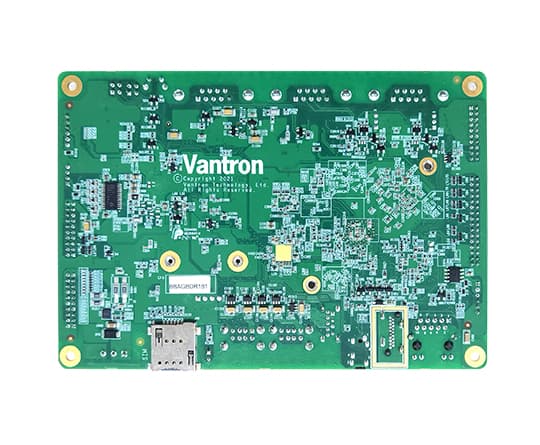

VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer
VT-SBC-RK66 RK3566 ARM-based Single Board Computer

VT-SBC-RK66 RK3566 ARM-based Single Board Computer

Features

◆ RK3566, Rockchip quad core processor

◆ 4GB Memory and 32GB Storage

◆ Android 11, GMS certified

◆ eDP/LVDS/MIPI interface for display

◆ 5 x USB, 4 x COM port

◆ Wi-Fi/BT/4G/ETH for communication

Description
Specifications
Documentation

VT-SBC-RK66 multi-functional single board computer runs the latest Android 11 operating system. The high-performance board is GMS certified to enable customers to have unimpeded access to Google mobile services.


The board is powered by RK3566, a cost-effective multi-core processor developed by Rockchip. With 4GB memory and 32GB eMMC storage, it features quick access to data and ultra large capacity. As such, it is capable of dealing with huge volume of data in a timely manner.


With plenty of peripheral interfaces, a wide choice of peripherals can be connected for extended applications, including barcode scanners, cameras, barcode printers and keyboard plates. The SBC also supports ultra-high-definition video outputs as it offers a high-performance video engine coupled with HEVC hardware decoding and 1080p/2K video resolution. Moreover, display interfaces of different specifications allow flexible application of the device in intelligent retailing, new retailing, financial self-service terminals, and other scenarios.

Specifications
CPU
Rockchip RK3566, Quad core, ARM Cortex-A55, 1.8GHz (Max)
Memory
4GB
Storage
32GB (up to 128GB) 1 x Micro SD slot (up to 128GB)
Ethernet
1 x RJ45, 10M/100M/1000Mbps
Wi-Fi & BT
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
4G/LTE
Supported (expansion by mini PCIe)
Display
1 x HDMI, Type-A, up to 4K ×2 K@60Hz 1 x 4-lane eDP, 2K@60Hz 1 x 8-lane MIPI DSI connector (including 4 lanes multiplexed with LVDS): single-channel MIPI DSI: 1080P@60Hz, LVDS: 720P @60Hz; dual-channel MIPI DSI: 2K@60Hz
Audio
1 x 3.5mm combo audio jack
Speaker
1 x Speaker connector
Camera
1 x MIPI CSI-2, 2 x 10 x 2.0mm
Serial port
1 x RS232, DB9 2 x RS232/485, DB9 1 x RS232, pin header
USB
4 x USB 2.0 Type-A (USB OTG supported) 1 x USB 3.0
SIM slot
1 x SIM card slot
GPIO
8 x GPIO, 3.3V
RTC
Supported
Watchdog
Supported
Mini-PCIe
1 x Mini-PCIe for 4G/LTE module
Button
1 x Reset button
LED
1 x 4G LED, 1 x Power LED, 1 x User defined, 1 x System LED
OS
Android 11, GMS certified (Optional: Linux OS)
Device management platform
Vantron BlueSphere
Input
12V/24V 3A DC (±5%), 1 x 3 x 3.81mm terminal
Dimensions
155mm x 105mm x 21.5mm
Temperature
Operating: 0℃~+60℃ Storage: -40℃~+85℃
Humidity
Operating: RH 5%~95% Storage: RH 5%~95%
Certification
FCC ESD: ±4KV (Contact) and ±8KV (Air)
Product Name
VT-SBC-RK66 ARM-based Single Board Computer
Documentation
VT-SBC-RK66 Single Board Computer Datasheet -V2.0.pdf
VT-SBC-RK66 Single Board Computer Datasheet
VT-SBC-RK66 Single Board Computer User Manual- V1.4.pdf
VT-SBC-RK66 Single Board Computer User Manual
