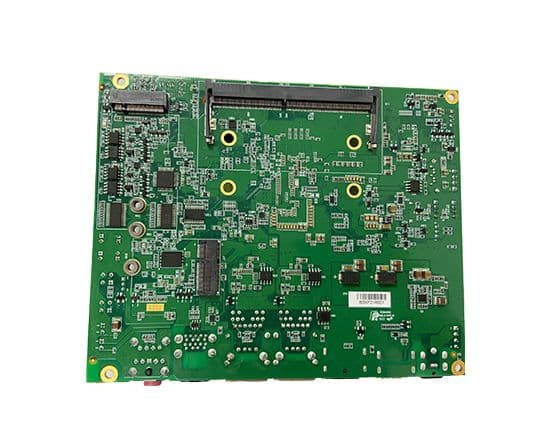

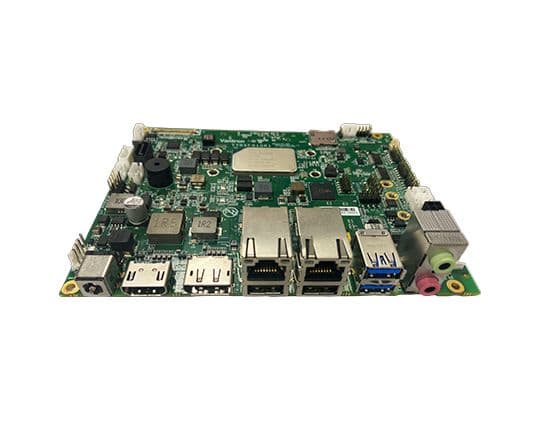

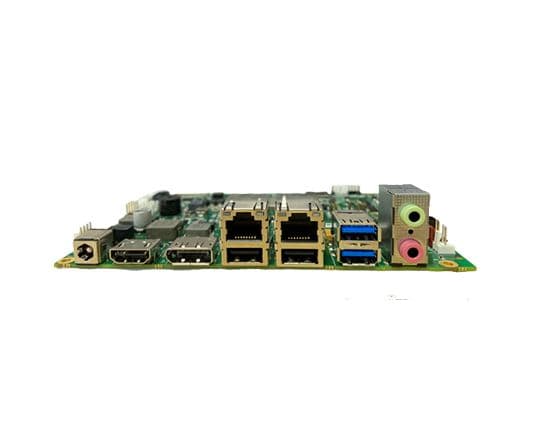

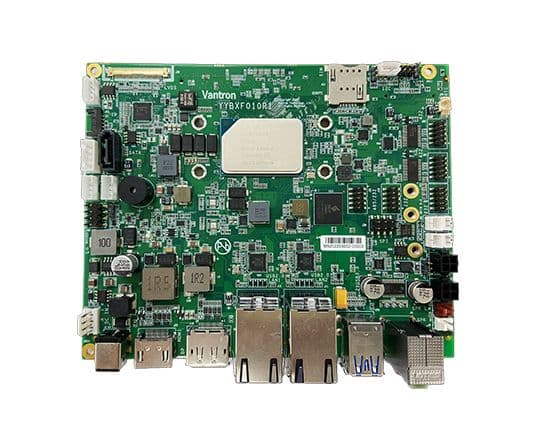

VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer
VT-SBC-EKT ElkhartLake X86-based Single Board Computer

VT-SBC-EKT ElkhartLake X86-based Single Board Computer

Features

◆ Intel® Elkhart Lake Atom® x6425E quad-core processor

◆ Mass storage

◆ SDK available for custom development

◆ HDMI/DP/LVDS/eDP for display

◆ Wi-Fi/BT/4G/5G/ETH for communication

◆ TPM supported

◆ USB 2.0 & USB 3.0

Description
Specifications
Documentation

Overview

The VT-SBC-EKT Single Board Computer is designed to meet the rigorous demands of modern embedded systems and industrial IoT applications. Powered by Intel® Elkhart Lake Atom® x6425E high-performance processor, this board has achieved an optimal balance between power efficiency and computing capabilities by keeping the CPU performance at a maximum of 15W power consumption. With robust communication options, flexible display interfaces, and support for secure data processing, the VT-SBC-EKT Single Board Computer is a reliable solution for industries seeking to innovate in IoT and edge computing.

Technological Advantages

1. High-Performance Computing with Energy Efficiency
- The Intel® Elkhart Lake Atom® x6425E processor ensures superior multi-core performance, delivering computing power for diverse embedded applications. Despite its performance capabilities, the processor operates at low power, making it suitable for energy-sensitive environments.

2.Rich Connectivity and Communication Support
- The board supports two Ethernet ports transmitting at 10/100/1000Mbps for seamless and high-speed network connectivity.
- As to communication, the board offers two M.2 slots, one for Wi-Fi and BT and the other optionally expandable for 4G/5G connection to keep communication uninterrupted.
- Comprehensive support for USB 2.0 and USB 3.0 ensures fast data transmission and compatibility with a wide range of peripherals.

3.Flexible Display Interfaces
- HDMI, DP, and LVDS/ eDP options cater to various display requirements, enabling high-resolution output and compatibility with modern monitors or embedded systems with display needs.

4.Enhanced Security
- With Trusted Platform Module (TPM) support, the VT-SBC-EKT Single Board Computer ensures secure data processing and storage, safeguarding sensitive operations and information from tapering or cyber threats.

5.Scalability and Customization
- The availability of an SDK supports custom development, enabling system integrators and developers to tailor the board's capabilities to specific application needs.

Specifications
CPU
Intel® Elkhart Lake Atom® x6425E processor, Quad-core, 3.0GHz (Max.)
Memory
DDR4 SO-DIMM socket, 3200MT/s, up to 16 GB
Storage
64GB on-board eMMC (optional) 1 x SATA Gen 3 slot (6Gb/s, up to 2TB) M.2 (2242) SSD supported (up to 256GB)
Ethernet
2 x RJ45, 10/100/1000 Base-T, LAN7430
Wi-Fi & BT
Supported (expansion by an M.2 E-Key slot)
4G/5G
Supported (expansion by an M.2 B-Key slot)
Audio
1 x Headphone jack 1 x 3.5mm Microphone jack 2 x 2W/8R Speaker connector
Serial
2 x RS422 connector 2 x RS232 connector 1 x RS232/RS485 connector
USB
2 x USB 2.0 Host (Type-A) 2 x USB 3.0 Host (Type-A) 2 x USB 2.0 connector
RTC
Supported
Watchdog
Supported
SIM card slot
1 x Micro SIM card slot
M.2
1 x M.2 B-Key, for SSD (2242) or 4G/5G (3052) 1 x M.2 E-Key, for Wi-Fi & BT (2230)
CAN
2 x CAN
GPIO
4 x GPIO
SPI
1 x SPI
Button
1 x Power button
TPM
TPM 2.0 supported
Input
12-36V DC
Consumption
15W+
Operating system
Linux, Windows 10
SDK
SDK available
Dimensions
153.5 x 123 mm
Cooling mode
Aluminum alloy heat sink (fanless)
Temperature
Operating: -20°C ~ +60°C Storage: -40°C ~ +85°C
Humidity
5%-95%RH (Non-condensing)
Certifications
UL, FCC, IC, CE, RoHS, PTCRB
Product Name
VT-SBC-EKT X86-based Single Board Computer
Documentation
VT-SBC-EKT Single Board Computer Datasheet -V1.8.pdf
VT-SBC-EKT Single Board Computer Datasheet
VT-SBC-EKT Single Board Computer User Manual - V1.3.pdf
VT-SBC-EKT Single Board Computer User Manual
