• Intel® Celeron® N6211 dual-core processor
• Support for up to 4K @30Hz video output
• Rich industrial I/O for user expansion
• Gigabit Ethernet, Wi-Fi, Bluetooth
• Fanless design
• Windows 10 IoT operating system

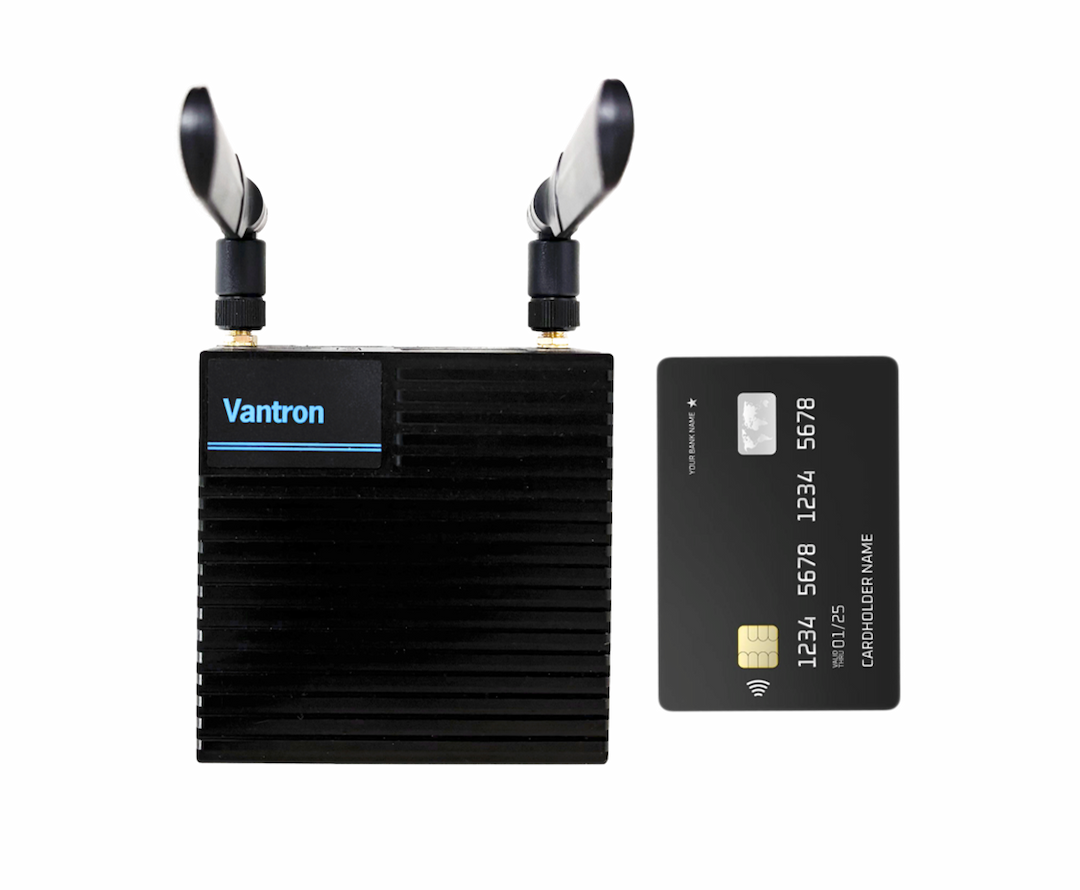

• Ultra-compact size for flexible integration

Description

Specifications

Documentation

Vantron MBOX6211 is an entry-level industrial mini computer powered by Intel® Celeron® Elkhart Lake N6211 processor that features a dual-core architecture with a base frequency of 1.2GHz. The integrated Intel® UHD Graphics GPU supports H.265/H.264 video codec, enabling smooth 4K video playback at 30Hz while maintaining low bitrates.

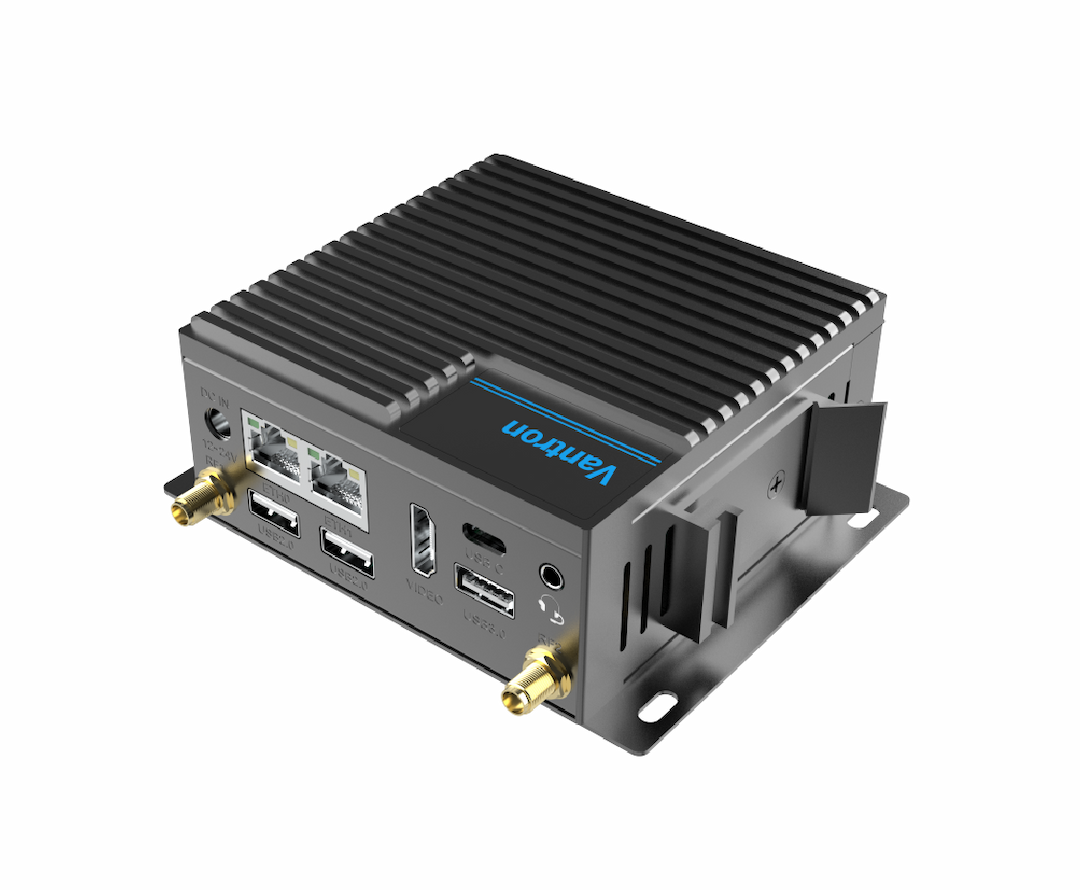

MBOX6211 offers two Ethernet jacks, each capable of up to 1000Mbps data transmission, ensuring fast and reliable wired networking. With support for Wi-Fi 802.11 a/b/g/n/ac and BT 5.0, it ensures reliable wireless communication across various environments. The device comes with default 4GB on-board memory and 64GB storage, with expansion options for added flexibility. Moreover, the HDMI port delivers up to 4K video output, making it ideal in industrial and multimedia settings. MBOX6211 offers rich interfaces, such as serial ports, USB-A and USB-C, CAN, and GPIOs, allowing businesses to connect a wide range of peripherals for extended applications.

Overall, MBOX6211 can be widely used in industrial automation, games, retail, and other sectors to offer a reliable and consistent user experience.

Specifications

Product Name

MBOX6211 Elkhart Lake Windows Mini Embedded Industrial Computer

CPU

Intel® Celeron® N6211 processor, 2C2T, 1.2GHz (base), 3.0GHz (turbo), 6.5W TDP

GPU

Intel® UHD Graphics for 10th Gen Intel® processors

Memory

4GB LPDDR4 (Optional: 8GB)

Storage

64GB eMMC 5.1; 1 x M.2 M-Key (2280), PCIe/SATA for SSD expansion, up to 1TB

Ethernet

2 x RJ45, 10/100/1000Mbps

Wireless

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Display output

1 x HDMI 1.4b, up to 4K @30Hz

Audio

1 x 3.5mm combo audio jack (CTIA standard)

Serial port

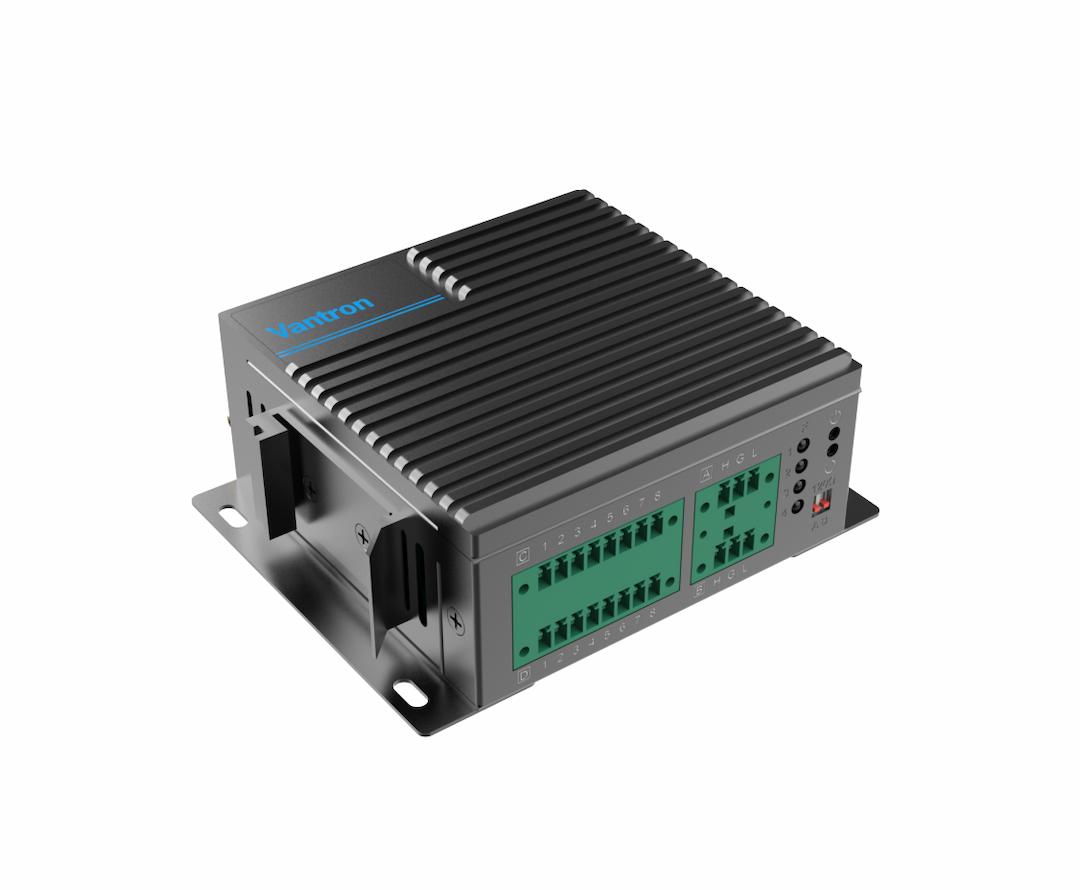

2 x RS232 (C1-C3, D1-D3); 2 x RS232/RS485/RS422 (C4-C8, D4-D8)

USB

2 x USB 2.0 Type-A; 1 x USB 3.0 Type-A; 1 x USB 3.0 Type-C

CAN

2 x CAN (A: CAN1, B: CAN2)

DIP switch

2 x DIP switch for 120Ω CAN Bus termination resistor to prevent signal reflections (A-up: CAN1_H, B-up: CAN2_H)

Antenna connector

2 x Wi-Fi & Bluetooth antenna connector (RF1, RF2)

RTC

Supported

Security

TPM 2.0

Button

1 x ON/OFF button; 1 x Reset button (short press to restart the device)

LED indicator

4 x LED indicator (Power indicator at the top by default, user definable)

Windows 10 IoT

Input

12V~24V DC; 1 x Power jack

Consumption

Typical: 16W; Max.: 30W

Dimensions

95mm x 95mm x 44mm (not including wall mount)

Installation

Wall mounting; DIN rail mounting

Weight

518g (not including accessories)

Cooling mode

Heat sink

Temperature

Operating: -20°C~+70°C; Storage: -40°C~+80°C

Humidity

10%~95% RH (Non-condensing)

Certification

FCC, CE, ISED
