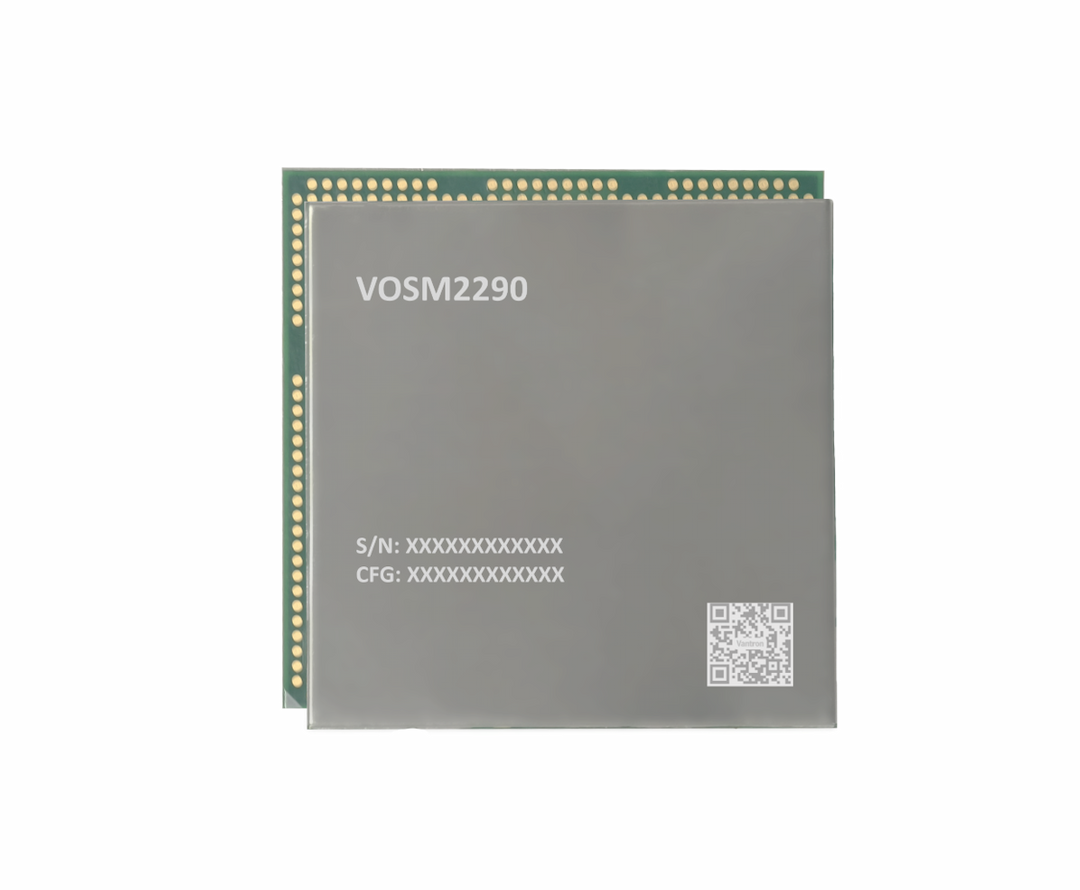

VOSM2290 Qualcomm QCS2290 Module

What is SoM and its key benefits?

A System-on-Module (SoM) is a compact, self-contained computing module that integrates a processor, memory, storage, and essential peripherals on a single board. Designed to accelerate development cycles and simplify product integration, Vantron’s SoM solution offers significant advantages over traditional embedded solutions:
• Compact Size: LGA packaging maximizes space efficiency while maintaining reliable performance, making it ideal for space-constrained devices.
• Flexibility: Supports customization for advanced and compact editions.
• Streamlined Development: Reduces design complexity and speeds up product time-to-market.
• Power Efficiency: Internal DSP unit and low-power design ensure optimal energy consumption.
• Operating System Support: Compatible with Android and Linux, providing flexibility for developers.
• Robust Connectivity: Integrated Wi-Fi, Bluetooth, and RF readiness for seamless wireless communication.
• Longevity & Quality: Guarantees extended service life and strict quality control standards.

Product Overview

The VOSM2290 System-on-Module (SoM) is powered by the Qualcomm QCS2290 processor with a main frequency of up to 2.0GHz, providing an efficient and reliable platform for modern applications. The module features a quad-core ARM Cortex-A53 CPU paired with the Qualcomm Adreno 702 GPU, offering advanced 3D graphics acceleration with 64-bit addressing. Designed for industrial-grade applications, the VOSM2290 delivers 7+ years of extended service life, ensuring reliability in demanding environments. Key features include:
• Enhanced Power Performance: Optimized to deliver reliable operation while minimizing energy consumption.
• High-Quality Multimedia: Includes a Hexagon DSP for noise cancellation, a 1080p @30fps video codec, and support for up to 25MP camera ISP, enabling high-quality video and image processing.
• Integrated Connectivity: On-board Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, and FM capabilities ensure robust wireless performance.
• Wide Compatibility: Supports Android 13 and later systems, and supports OTA upgrade, catering to modern software requirements.
• LGA Packaging: Allows for direct welding, simplifying integration and saving space.
• OSM V1.1 Compliance: Ensures compatibility with Open Standard Module specifications for seamless integration into various products.
• Evaluation Kit: EVA kit available to reduce prototyping time and accelerate time-to-market.

Application Scenarios

The VOSM2290 System-on-Module combines advanced processing power, integrated multimedia capabilities, and flexible connectivity in a compact and robust design. Vosm2290 is versatile and suitable for diverse application scenarios such as retail point-of-sale (POS), industrial handhelds, smart home, and camera applications.
