TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC
TPC070-RK88 7” Android All-in-one Panel PC

TPC070-RK88 7” Android All-in-one Panel PC

◆ Rockchip RK3288W Quad-core processor
◆ 2GB RAM + 32GB storage, expandable
◆ Android 8.1 operating system
◆ 7-inch TFT LCD, 16:9, 1280 x 800, 400 nits
◆ 2.4GHz &5GHz Wi-Fi, Bluetooth 4.2
◆ Gigabit Ethernet, PoE supported
◆ USB Type-C, OTG supported

Description
Specifications
Documentation

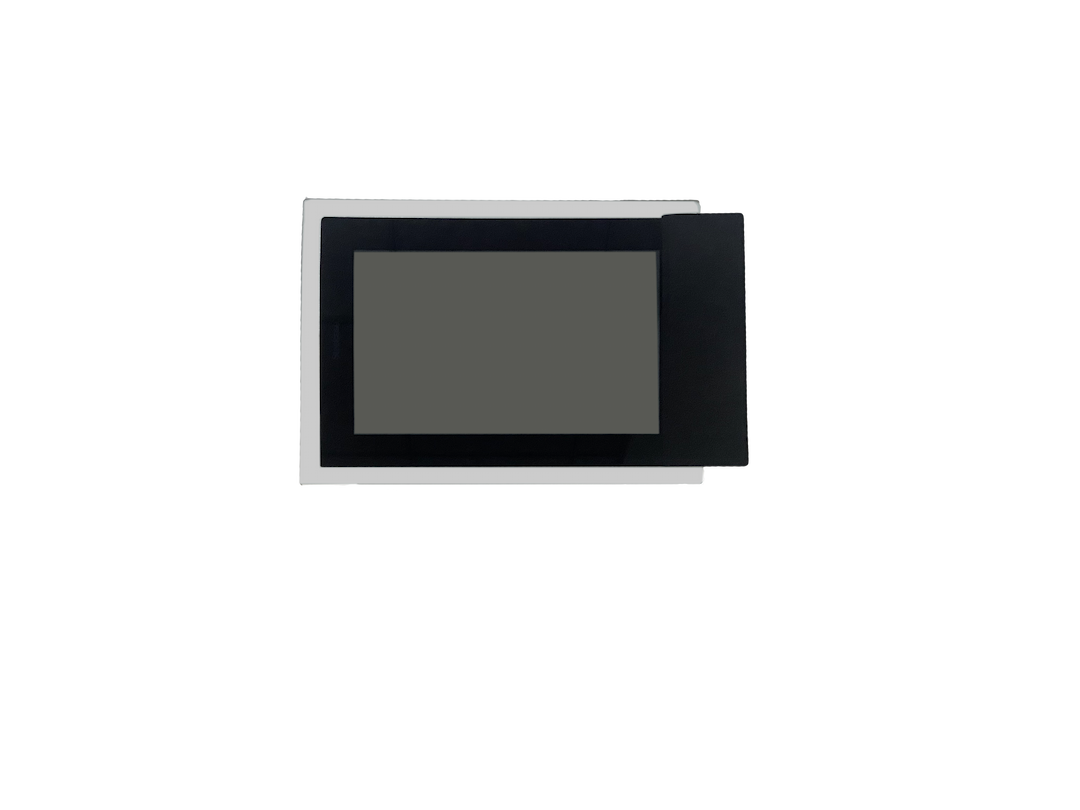

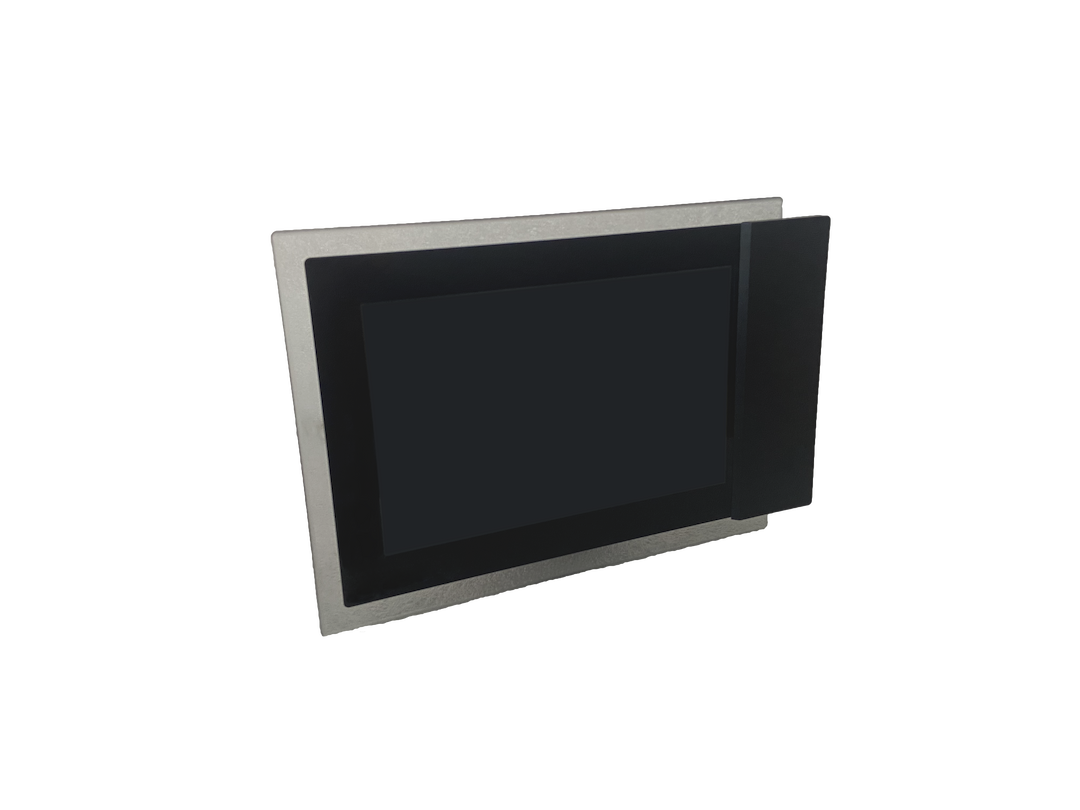

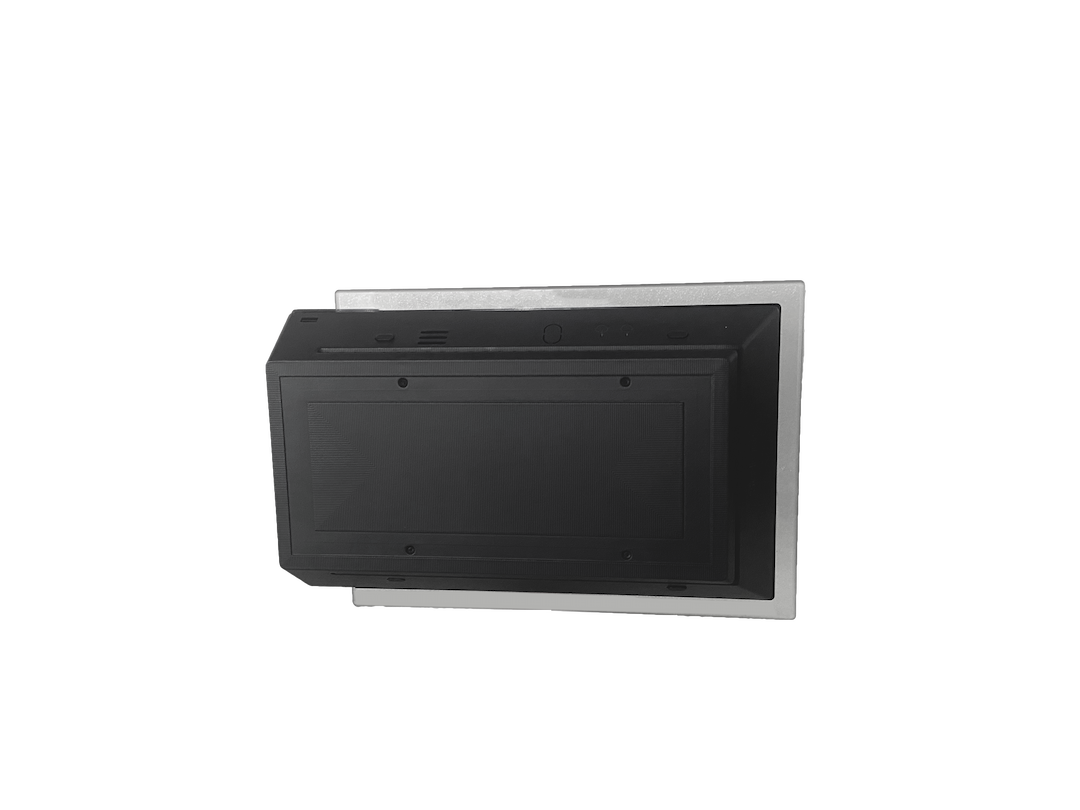

Vantron TPC070-RK88 is a sleek 7”all-in-one panel PC, powered by the Rockchip RK3288W processor. It features a 5-point PCAP touchscreen monitor with an aspect ratio of 16:9 and a resolution of 1280 x 800. TPC070-RK88 includes a visually appealing LED board on the front panel, featuring 12 tri-color light beads that serve both decorative and user-defined functional purposes.

Audio functionality is well-supported with an integrated 8W speaker and a microphone, making it ideal for clear communication in online conferences  and  remote  collaborations.  Networking  is versatile, with options for Ethernet, Wi-Fi, and Bluetooth, catering to various applications from home and office automation to use in compact medical devices.

The device adheres to the IEEE 802.3at standard, allowing it to be powered via Power over Ethernet (PoE) using a CAT 5 or higher Ethernet cable. It also offers the flexibility of an optional back cover and stand to be conveniently placed on a desktop for ease of use.

Specifications
CPU
RockChip RK3288W, Quad-core ARM Cortex-A17 processor, 1.6 GHz (Max.)
Memory
2GB LPDDR3 1866MHz (Optional: 4GB)
Storage
32GB eMMC 5.1
Ethernet
1x RJ45, 1000Mbps, PoE supported (IEEE 802.3at)
Wi-Fi & BT
Wi-Fi 802.11 a/b/g/n/ac + BT 4.2
Display
7-inch TFT LCD, Contrast ratio:800:1; Resolution: 1280 x 800, Aspect ratio: 16:9; Brightness: 400 nits, Viewing angle: 80/80/80/80(U/D/L/R)
TP
5-point PCAP touch screen, Surface hardness: 6H; Surface treatment (Optional): Anti-glare (AG), anti-reflection (AR); Cover lens: IK05 rated, Light transmittance ratio: > 85%
Audio
1 x 1W 8Ω Speaker; 1 x Microphone (6 x 2.7mm, 38db)
USB
1 x USB Type-C (OTG supported)
LED board
1 x LED board with 12 tri-color light beads (user-definable)
RTC
Supported
WDT
Supported
Pinhole button
1 x Power button (Turn on/off the screen); 1 x Reset button (Restart the device upon short press); 1 x Restore button (Factory reset the device upon a press for about 7 seconds)
Operating system
Android 8.1
Device management
BlueSphere MDM (Optional)
Input
5V PoE
Dimensions
217mm x 144mm x 30mm
Installation
Desktop, Wall mounting (optional stand, back cover, mounting tape)
Weight
670g
Heat dissipation
Heatsink
Temperature
Operating: 0°C~ + 40°C
Humidity
Operating: 5%~85%RH (Non-condensing)
Certification
FCC, CE
Warranty
2 years
Documentation
Vantron TPC070-RK88 7” All-in-one Panel PC Datasheet - V1.5.pdf
Vantron TPC070-RK88 7” All-in-one Panel PC Datasheet
