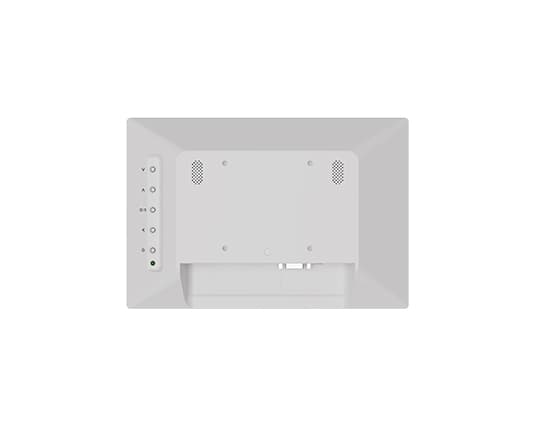

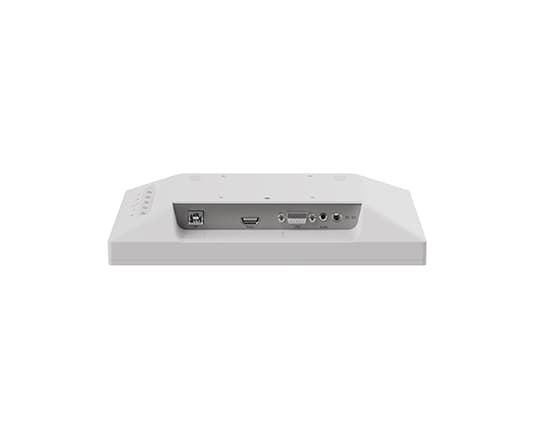

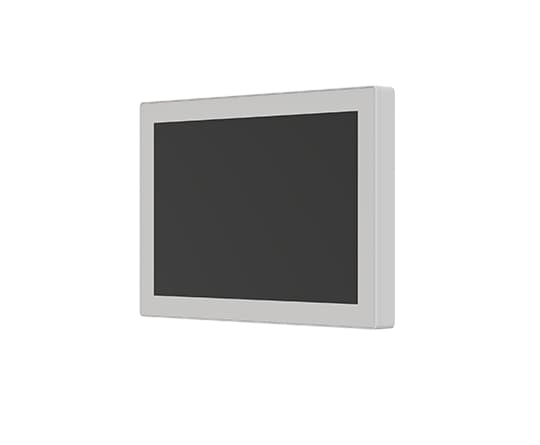

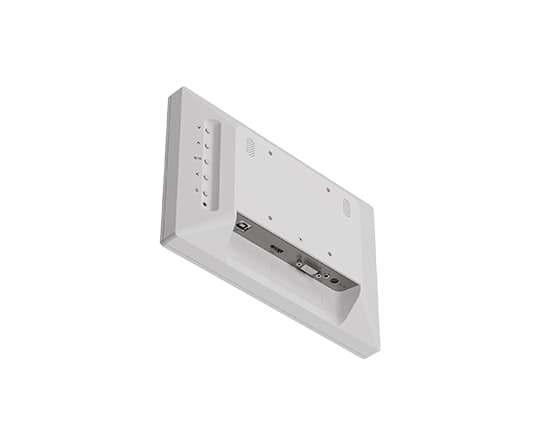

TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor

TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor

10.1” TFT LCD, 10-point PCAP touch screen
Sleek appearance
AF/AR/AG surface treatment
VESA pattern for flexible installation
Excellent longevity (50,000H MTBF)
Vanity free, easy integration

Description
Specifications
Documentation

Vantron Technology offers open-frame & desktop/wall-mountable touchscreen monitors that vary in screen size from 7 inches to 55 inches and resolution from 1024 x 600 to 3840 x 2160. When used with Vantron embedded computers or single board computers, such touchscreen monitors will offer more flexible solutions for customers to meet the requirements of application in different scenarios such as industrial control, health care, education, retail, transportation, and finance.

TMC101 desktop/wall-mountable touchscreen monitor applies a 10.1-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The touch screen is designed to be anti-fingerprint, and users have the option to equip it with anti-glare or anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMC101 is designed with a VESA pattern to simplify mounting onto a variety of stands, arms, walls or medical carts. The OSD controls allow users to change settings of the display in a more convenient manner to enhance user experience.

Specifications
Product Name
TMC101 10.1” Desktop/Wall-mountable Touchscreen Monitor
Diagonal Size
10.1" TFT LCD with LED backlight
Aspect Ratio
16:10
Resolution
1280 x 800
Brightness (typical)
430 nits
Active Area
216.96mm × 135.6mm
Contrast Ratio
800:1
Number of Colors
16.7M
Response Time
25ms
Viewing Angle
Horizontal: 170°; Vertical: 170°
Touch Point
10-point PCAP touch screen
Touch Control
Finger, stylus pen
Surface Treatment
Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection)
Light Transmittance Ratio
>85%
Touch Communication Interface
USB 2.0 Type-B
Video Interface
1 x VGA; 1 x HDMI
Video Input Frequency
Horizontal: 31.5 - 80 KHz, Vertical: 60 Hz
Audio Interface
1 x Line in
Speaker
2 x 2W internal speakers
Dimensions
252.76mm x 171.4mm x 42.14mm
Enclosure Color
White
Weight
1.1kg
Installation
VESA mount (75mm x 75mm)
OSD
Built-in OSD (set up with OSD keys); Controls: Menu, Up, Down, Back, Power
Power
DC 12V/36W adapter
Power Consumption
<12W
OSD Language
English
Adjustment of Brightness, Contrast Ratio and Color Temperature
Supported
Temperature
Operating: 0℃ ~ +40℃; Storage: -20℃ ~ +60℃
Humidity
Operating: 20%~80% RH (non-condensing); Storage: 10%~95% RH (non-condensing)
MTBF
50,000 hours demonstrated
Warranty
3 years
ESD
ESD: ±4KV (contact) and ±8KV (air)
Certificate
FCC, CE, UL
Documentation
Vantron TMC101 10.1“ Desktop/ Wall-mountable Touchscreen Monitor Datasheet - V1.5.pdf
Vantron TMC101 10.1“ Desktop/ Wall-mountable Touchscreen Monitor Datasheet
