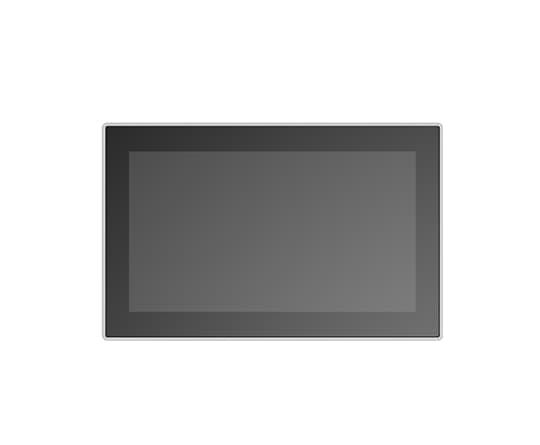

TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor

TMC070 7” Desktop/Wall-mountable Touchscreen Monitor

◆ 7” TFT LCD, 5-point PCAP touch screen
◆ Sleek appearance
◆ AF/AR/AG touchscreen surface treatment
◆ VESA pattern for flexible installation
◆ Excellent longevity (50,000H MTBF)
◆ Vanity free, easy integration

Description
Specifications
Documentation

Vantron Technology offers open-frame & desktop/wall-mountable touchscreen monitors that vary in screen size from 7 inches to 55 inches and resolution from 1024 x 600 to 3840 x 2160. When used with Vantron embedded industrial computers or single board computers, such touchscreen monitors will offer more flexible solutions for customers to meet the requirements of application in different scenarios such as industrial control, health care, education, retail, transportation, and finance.

TMC070 desktop/wall-mountable touchscreen monitor applies a 7-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. Users have the option to equip the touchscreen with anti-glare, anti-reflection and antifingerprint coatingsthat offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMC070 is designed with a VESA pattern to simplify mounting onto a variety of stands, arms, walls or medical carts. The OSD controls allow users to change settings of the display in a more convenient manner to enhance user experience.

Specifications
Product Name
TMC070 7” Desktop/Wall-mountable Touchscreen Monitor
Diagonal Size
7" TFT LCD with LED backlight
Aspect Ratio
16:9
Resolution
1024 x 600
Brightness (typical)
300 nits
Active Area
154.21mm × 85.92mm
Contrast Ratio
800:1
Number of Colors
16.7M
Response Time
25ms
Viewing Angle
Horizontal: 150°; Vertical: 140°
Touch Point
5-point PCAP touch screen
Touch Control
Finger, stylus pen, glove
Surface Treatment
Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection)
Light Transmittance Ratio
>85%
Touch Communication Interface
USB type-C (Single-cable solution for touch, video, and power)

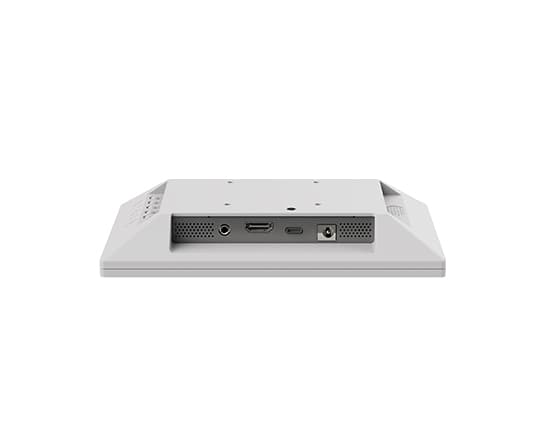

Video Interface
1 x USB type-C (DP1.2); 1 x HDMI
Input Video Frequency
Horizontal: 31.5 - 80 kHz, Vertical: 60 Hz
Audio Interface
1 x Line in
Speaker
2 x Internal speaker
Dimensions
184.4mm x 118.1mm x 29.50mm
Enclosure Color
White (Black optional)
Weight
0.9kg

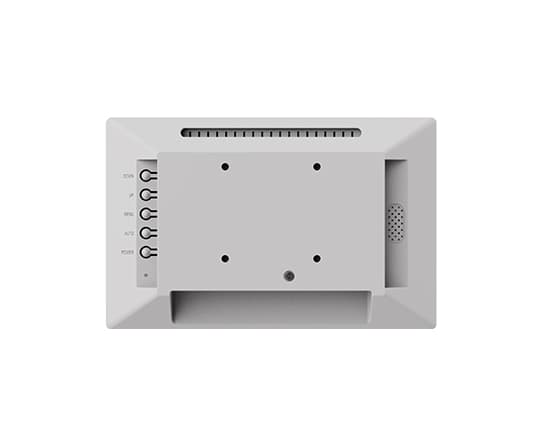

Installation
VESA mount (50mm x 50mm)
OSD
Built-in OSD (set up with OSD keys); Controls: Menu, Up, Down, Auto, Power
Power input
12VDC, via the USB type-C (PD supported) or power jack
Power Consumption
< 6W
OSD Language
English
Adjustment of brightness, contrast ratio and color temperature
Supported
Temperature
Operating: 20%~80% RH (non-condensing); Storage: 10%~95% RH (non-condensing)
MTBF
50,000 hours demonstrated
Warranty
3 years
ESD
ESD: ±4KV (contact) and ±8KV (air)
Certificate
FCC, CE, UL
Documentation
Vantron TMC070 7“ Touchscreen Monitor Datasheet - V1.5.pdf
Vantron TMC070 7“ Touchscreen Monitor Datasheet
