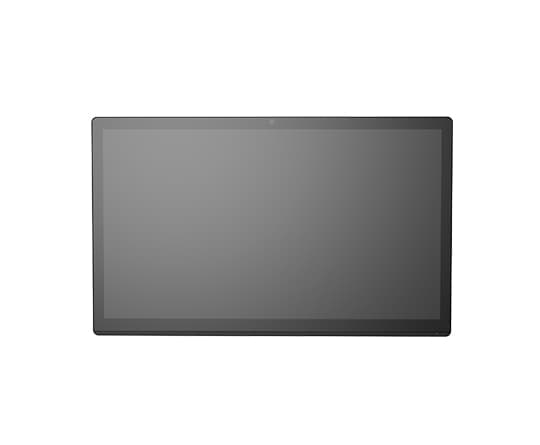

TPC238-RK3568 23.8“ Android All-in-one Panel PC

TPC238-RK3568 23.8“ Android All-in-one Panel PC

◆ RK3568 Quad-core high-performance processor
◆ Android 11 system, Linux distributions available
◆ 10-point PCAP screen, gloved touch support
◆ Full lamination, ultra-narrow bezel
◆ 5MP front camera, stereo speakers
◆ Ethernet/Wi-Fi/Bluetooth/optional 4G LTE
◆ Sleek appearance, white and black casing options
◆ Flexible installation (landscape, portrait, desktop, wall mount, floor mount)

Description

Specifications

Documentation

Vantron TPC238-RK3568 is a 23.8” desktop all-in-one panel PC, powered by RK3568 quad-core high-performance processor. It is equipped with a 23.8-inch 10-point PCAP touch screen, featuring 16:9 full HD display. It runs on Android 11 operating system with support for Linux distributions. It offers rich interfaces for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals. The VESA pattern allows users to mount and maintain the device more flexibly for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC238-RK3568 23.8“ Android All-in-one Panel PC

CPU

Rockchip RK3568, Quad-core ARM Cortex-A55 processor, 1.8GHz (Max.)

Memory

2GB (Optional: 4GB)

Storage

16GB (Optional: 32GB)

Ethernet

1 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Cellular

4G LTE (Optional)

Display

23.8-inch TFT LCD

Contrast ratio

1000:1

Resolution

1920 x 1080 @60Hz

Aspect ratio

16:9

Brightness

300 nits

Viewing angle

89/89/89/89 (U/D/L/R)

External display

1 x HDMI, up to 4K @30Hz

10-point PCAP touch screen

Surface hardness

:6H

Surface treatment (Optional)

Anti-glare (AG), anti-reflection (AR)

Light transmittance ratio

> 85%

Camera

Front camera, 5MP, fixed focus

Audio

1 x 3.5mm combo audio jack; 2 x 2W speaker

USB

1 x USB 2.0 Type-C; 1 x USB 3.0 Type-A; 1 x USB 2.0 Type-A

SIM slot

1 x SIM slot

RTC

Supported

WDT

Supported

Button

1 x ON/OFF button

LED indicator

1 x LED indicator for power and system status

Android 11, Linux

Device management platform

BlueSphere MDM (Optional)

OTA tool

BlueSphere OTA (Optional)

Input

12V DC

Interface

1 x Power jack

Consumption

~25W

Dimensions

562.5mm x 344mm x 52.9mm

Casing color

White (Optional: black)

IP rating

Front panel IP54

Installation

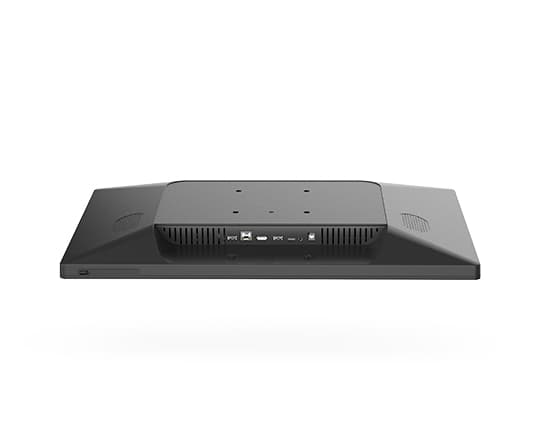

VESA mounting (100mm x 100mm, M4 x 10mm)

Heat dissipation

Fanless (Heatsink, casing)

Temperature

Operating: 0℃ ~ +40℃; Storage: -20℃ ~ +60℃

Humidity

Operating: 20%~80% RH (Non-condensing); Storage: 10%~90% RH (Non-condensing)

Touch life

> 50 million touches

Certification

CCC, FCC

Documentation

Vantron TPC238-RK3568 23.8” All-in-one Panel PC Datasheet
