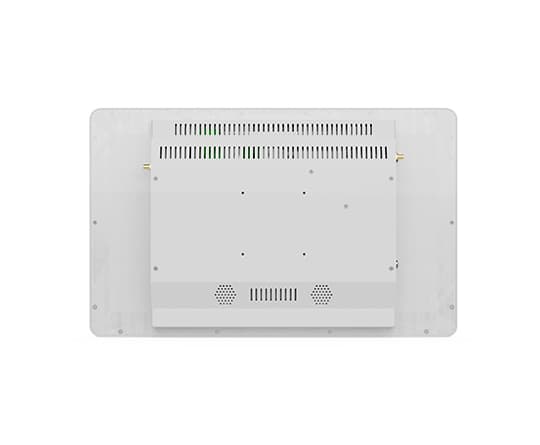

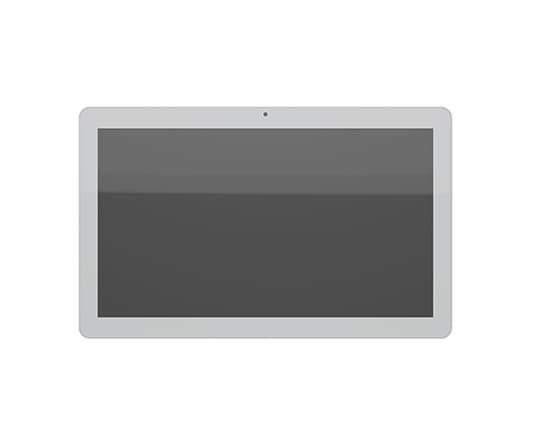

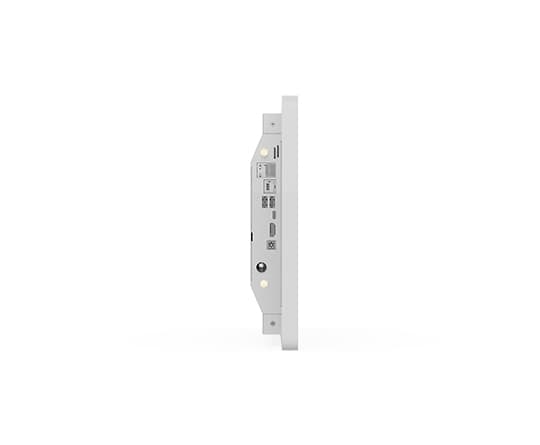

TPC185-RK3588 18.5"Android All-in-one Panel PC

TPC185-RK3588 18.5"Android All-in-one Panel PC

◆ RK3588 octa-core high-performance processor
◆ Android 12 system, Linux distributions available
◆ 18.5-inch TFT LCD, FHD, 16:9, 300 nits
◆ 5MP fixed-focus front camera
◆ Low power, fanless design
◆ Ethernet/Wi-Fi/Bluetooth/4G LTE supported
◆ Sleek appearance, white and black colors for choice
◆ Flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description

Specifications

Documentation

Vantron TPC185-RK3588 is an 18.5” desktop all-in-one panel PC, powered by RK3588 octa-core high-performance processor. It is equipped with a 21.5-inch 10-point PCAP touch screen, featuring 16:9 full HD display. It offers multiple configuration options. Its rich interfaces allow for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals.The VESA pattern also allows users to mount and maintain the device more flexibly for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC185-RK3588 18.5" 安卓触控一体机

CPU

Rockchip RK3588, Quad-core Cortex-A76 + Quad-core Cortex-A55, Max. 2.4GHz

GPU

ARM Mali-G610 MC4, Max. 1GHz

NPU

6 TOPS

Memory

8GB

Storage

64GB; M.2 SSD expansion supported

Ethernet

2 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac/ax + BT 5.0

Cellular

4G LTE (Optional)

Display

18.5-inch TFT LCD

Contrast ratio

1000:1

Resolution

1920 x 1080 @60Hz

Aspect ratio

16:9

Brightness

300 nits

Viewing angle

89/89/89/89 (U/D/L/R)

External display

1 x HDMI, up to 4K @60Hz

10-point PCAP touch screen

Surface hardness

Surface treatment (Optional)

Anti-glare (AG), anti-reflection (AR)

Light transmittance ratio

> 85%

Audio

Built-in dual-track speakers (Max. 3W)

USB

1 x USB 3.0 Type-C; 1 x USB 2.0 Type-A; 2 x USB 3.0 Type-A

RTC

Supported

WDT

Supported

Button

1 x Power button

LED indicator

1 x LED indicator for power and system status (Optional)

Android 12

Device management platform

BlueSphere MDM (Optional)

OTA tool

BlueSphere OTA (Optional)

Input

12V/24 DC

Interface

1 x Power jack

Consumption

~ 28W

Dimensions

457.96mm x 285.40mm x 54.00mm

Housing color

White/black

Installation

VESA mounting (75mm x 75mm, M4 x 10mm)

Heat dissipation

Fanless (Heatsink, housing)

Temperature

Operating: -10℃ ~ +50℃； Storage: -20℃ ~ +70℃

Humidity

Operating: 20%~80% RH (Non-condensing)； Storage: 10%~90% RH (Non-condensing)

Touch life

> 50 million touches

Certification

CCC, FCC

Documentation

Vantron TPC185-RK3588 18.5” All-in-one Panel PC Datasheet
