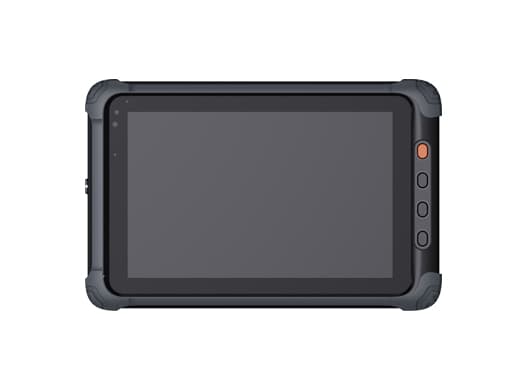

M10R1-RK35 10" Android/Linux Rugged Industrial Tablet

M10R1-RK35 10" Android/Linux Rugged Industrial Tablet

◆ Automotive-grade chip
◆ Front & rear cameras, built-in barcode scanner
◆ NFC at 13.5MHz
◆ IPS panel, 1920 x 1200, 600 nits
◆ 6000mAh Battery, lasting for 8 hours
◆ IP65, 1.5m drop test on 6 sides
◆ Pogo pin for flexible expansion
◆ USB Type-C, data transmission & 60W PD supported

Description

Specifications

Documentation

Vantron M10R1-RK35 is a 10-inch high-performance rugged tablet, designed to handle demanding tasks with ease. It is powered by Rockchip RK3588S octa-core processor, combined with ARM Mali-G610 MP4 GPU for 3D/2D graphics acceleration and a 6 TOPS NPU forindustrial applications such as healthcare, plant walk-down, law enforcement patrol, and prison automation.

M10R1-RK35 features a resolution of 1920 x 1200 and a brightness of 600 nits to provide clear visuals even in bright sunlight or harsh lighting conditions. It is IP65 rated for water and dust resistance. Additionally, it has also been drop-tested from a height of 1.5m on all 6 sides, ensuring that it can withstand accidental drops and bumps without skipping a beat.

M10R1-RK35 offers a pogo pin header to allow users to connect additional peripherals with ease. It supports up to 60W PD charging, ensuring quick and efficient charging when needed. Moreover, the built-in scanner enables it to applied across diverse industries.

Specifications

Product Name

M10R1-RK35 10" Android/Linux Rugged Industrial Tablet

CPU

Rockchip RK3588S Quad-core ARM Cortex-A76 MPCore processor + Quad-core ARM Cortex-A55 MPCore processor, Max. 2.4GHz

GPU

ARM Mali-G610 MP4, Max. 1GHz

NPU

6 TOPs

Memory

4GB LPDDR4

Storage

64GB eMMC V5.1; 1 x M.2 M-Key (2242) SATA/NVMe for SSD

Wi-Fi & Bluetooth

Wi-Fi 802.11 a/b/g/n/ac/ax + BT 5.1

Cellular

2G/3G/4G, LTE CAT 4

GNSS

GPS + BeiDou + GLONASS + Galileo, A-GPS supported

NFC

Supported, 13.5MHz

Display

10” 16:10 IPS TFT LCD

Resolution

1920 x 1200

Brightness

600 nits

Contrast ratio

1000:1

Viewing angle

Horizontal: ±85° or 170° / Vertical: ±85° or 170°

10-point G + G PCAP touch screen

Finishing process

Toughening

Surface hardness

Camera

Front camera 5MP, fixed focus, with a working indicator; Rear camera 8MP, auto focus, with a flash

Audio

1 x 4Ω/2w speaker; 1 x Mic; 1 x 3.5mm combo audio jack

USB

1 x USB 2.0 Type-A ; 1 x USB 3.0 Type-C

Built-in barcode scanner

Bar width> 8Mil；Pixe> 640 x 480

Extended display

1 x Mini HDMI

Pogo pin

2 x 10 pin, supporting CAN J1939, USB 3.0, 100Mbps Ethernet RJ45, Audio Jack, RS232/RS485 Combo, TJA1100HN 100Base-T1 PHY

SIM card slot

1 x Nano SIM slot

TF slot

1 x TF slot (up to 128GB)

Security

1 x TPM 2.0 (Optional)

Sensor

1 x Light sensor ; 1 x Gyro-sensor; 1 x G-sensor; 1 x Geomagnetic sensor

Button

1 x Power button; 3 x Function button; 1 x Volume +/- button

LED indicator

1 x Camera working indicator; 1 x Battery level indicator (Low power (≤15%): Red; 0~99% while charging: Amber; Full charge: Green)

Android 13, Linux Yocto + QT

Input

USB Type-C power input, 5V/3A, 9V/3A, 12V/3A, 20V/3A, 60W PD supported

Battery

6000mAh/7.6V, 8 hours working time*

Material

PC, ABS

Dimensions

293.6mm x 191mm x 29.1mm

Net weight

1300g

IP rating

IP65

Drop testing

Drop from 1.5m onto concrete surfaces on 6 sides

MIL-STD-810H

Vibration, thermal shock, solar radiation, liquid pollution

Battery testing

UN38.3 MSDS Sea/Freight, IEC62133

Temperature

Operating: 0°C ~+60°C; Storage: -30°C ~+70°C

Humidity

20%~80% RH (Non-condensing)

Certification

MIL-STD-810H FCC (FCC Part 15 Class B); ISED, CE ESD (Contact: ±4KV, Air: ±8KV)

Documentation

Vantron M10R1-RK35 10“ Rugged Industrial Tablet Datasheet
