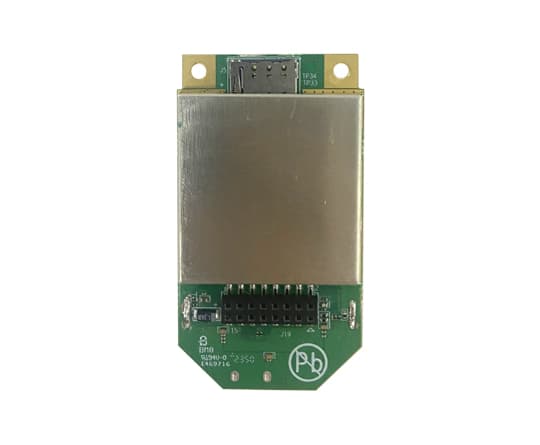

VT-MOB-LTE1T-PB CAT 1 Cellular Card

◆ MIMO

◆ Compact size, easy integration

◆ Low-power, cost-effective

◆ IPV4/IPV6 stack

◆ Wide temperature range

◆ On-board Nano SIM slot

Description

Specifications

Documentation

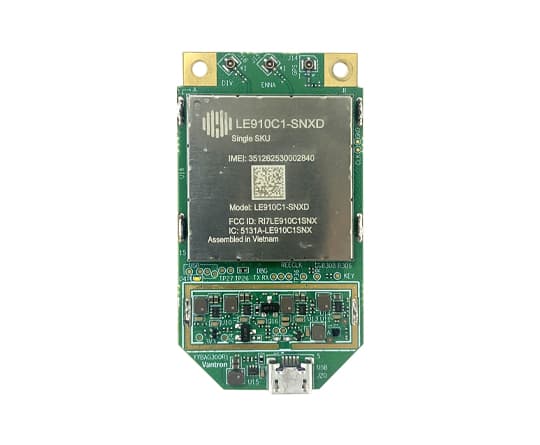

Vantron VT-MOB-LTE1T-PB features an LTE CAT 1 cellular card with an integrated Nano SIM slot, offering a low-power, cost-effective solution for IoT applications. The cellular card is based on Telit LE910C1-SNXD module that supports dial-up networking to allow control through AT commands according to 3GPP standards, facilitating a rapid and straightforward onboarding process for the device. Additionally, the cellular card offers an optional quad-constellation GNSS solution for accurate positioning.

With an uplink throughput up to 5Mbps and a downlink up to 10Mbps, this CAT 1 cellular card is an ideal low-power solution for a wide range of M2M applications such as wireless point of sale systems, smart healthcare IoT, wearable devices, etc.

Specifications

CPU

RK3308GK Quad-core ARM Cortex-A35, 1.2GHz (Max.)

Memory

64MB DDR2

Storage

32MB SPI flash for OS & program ; 2Kb EEPROM for parameters etc.

Software

Support drivers for Windows 7/8/8.1/10/11, Linux, Android

LTE category

LTE CAT 1

Frequency band

LTE FDD: B2/B4/B5/B12/B13/ B66

Max. data transmission rates

10Mbps (downlink), 5Mbps (uplink)

GNSS (Optional)

GPS, Glanoss, Beidou, Galileo, QZSS

LTE Module

Telit LE910C1-SNXD

I/Os

2 x 4G/LTE antenna (primary & diversity) ; 1 x GNSS antenna (Optional) ; 1 x Micro USB ; 1 x On-board Nano SIM slot

Board to board connector (2 x 8 x 2.0mm)

1 x USB 2.0, 4.75V~5.25V ; 1 x UART, 3.3V ; 1 x Power on/off signal, 3.3V ; 1 x Reset signal, 3.3V ; 1 x SIM signal, 1.8V/3.3V (Optional)

LED indicator

1 x Power indicator ; 1 x Working status indicator

TPM (Optional)

ATMEL: ATECC508A-SSHDA-T/B

Input

5V DC via Micro USB

Consumption

Active mode: ~3.5W

Dimensions

57.75mm x 32mm x 6.1mm

Temperature

Operating: 0°C ~ +70°C (Commercial) or -20°C ~ +85°C(Industrial) (Optional: -30°C ~ +85°C) ; Storage: -40°C ~ +105°C

Certificate

FCC, PTCRB ; Carrier: Verizon / AT&T

Product Name

VT-MOB-LTE1T-PB CAT 1 Cellular Card

Documentation

VT-MOB-LTE1T-PB CAT 1 Cellular Card Datasheet
