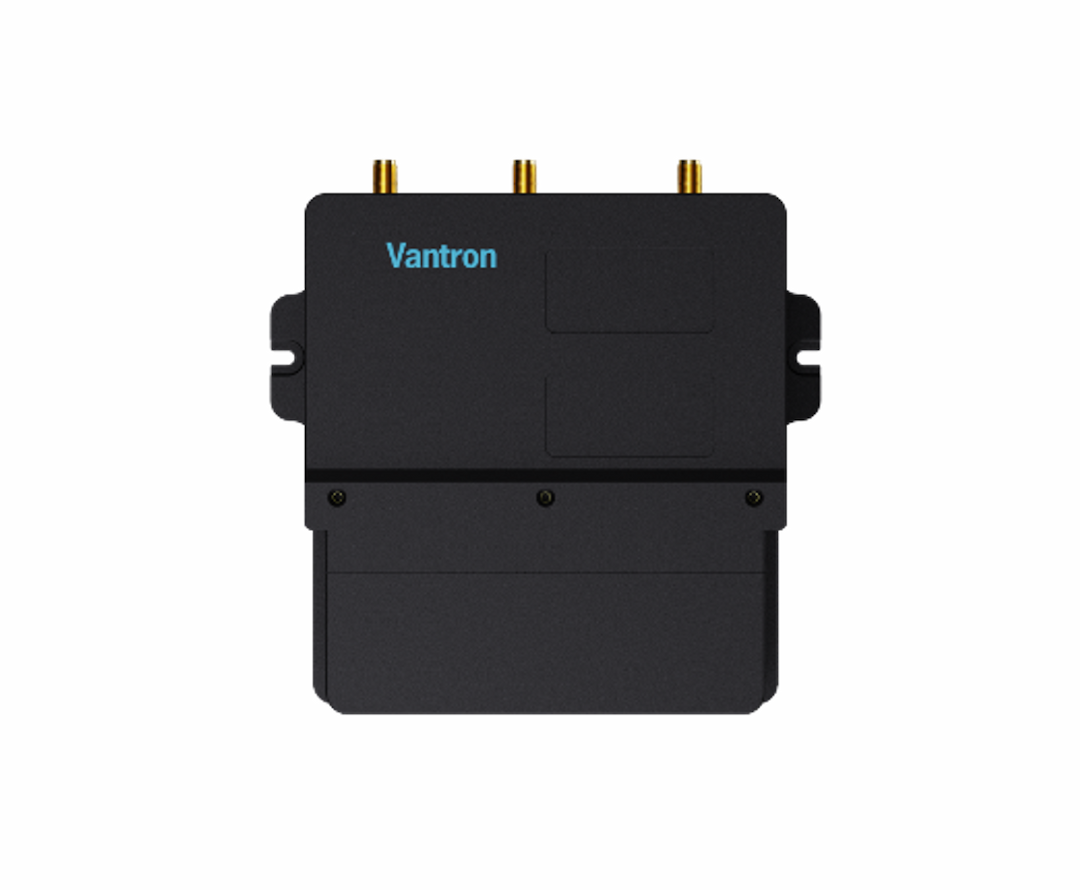

HAP103 Wi-Fi HaLow Access Point

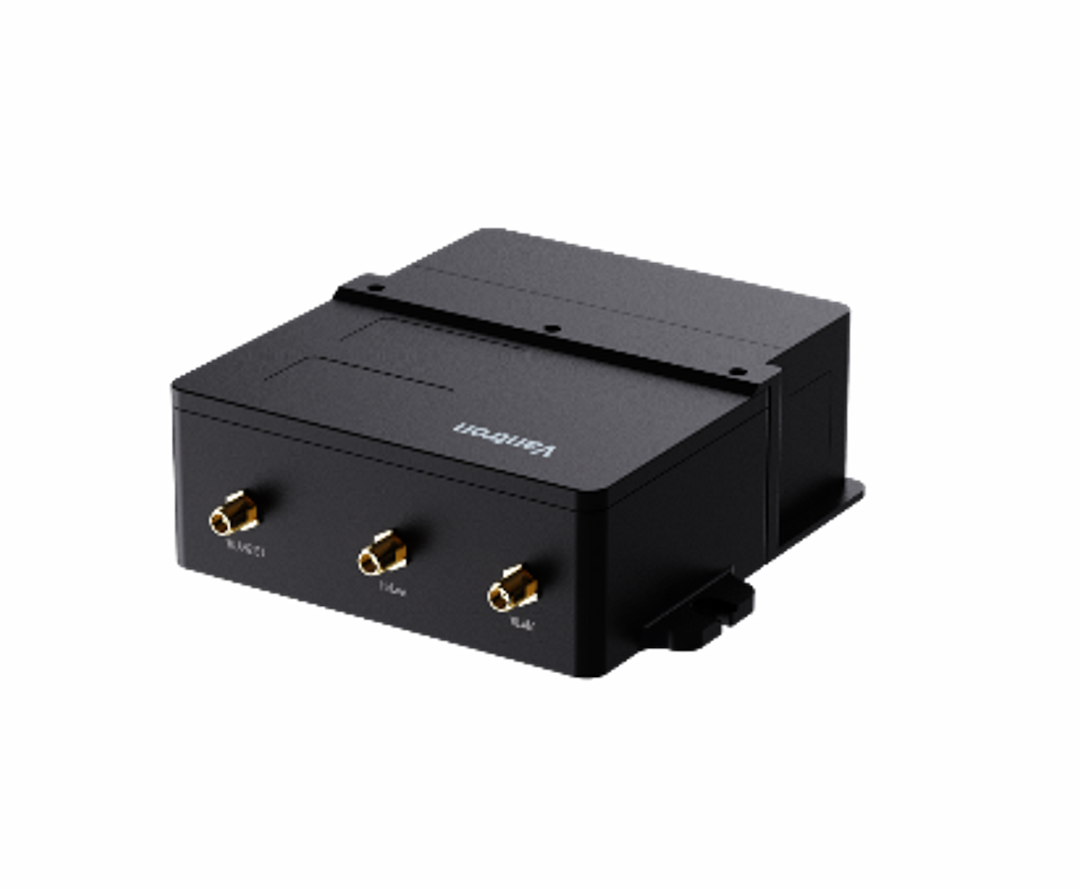

HAP103 Wi-Fi HaLow Access Point

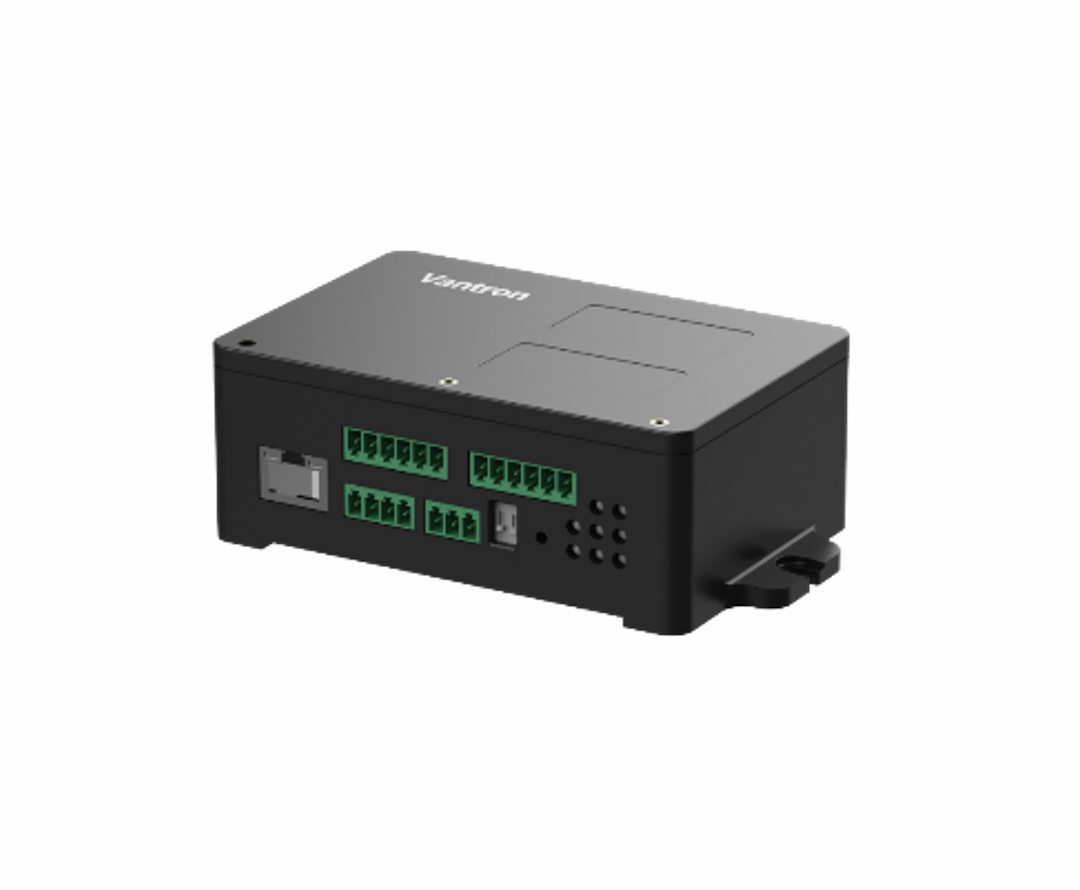

HAP103 Wi-Fi HaLow Access Point
HAP103 Wi-Fi HaLow Access Point
HAP103 Wi-Fi HaLow Access Point
HAP103 Wi-Fi HaLow Access Point
HAP103 Wi-Fi HaLow Access Point
HAP103 Wi-Fi HaLow Access Point

HAP103 Wi-Fi HaLow Access Point

◆ Wi-Fi HaLow with 2.4GHz Wi-Fi combined
◆ Sub-1 GHz frequency bands supported
◆ Longer distance: up to 1km
◆ More than 8,000 stable connections, 4x legacy AP
◆ Data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow)
◆ Ultra-low power consumption
◆ Better penetration through walls and obstacles
◆ Enhanced Wi-Fi security protections
◆ Optional multiple I/Os for varied purposes
◆ PoE PD optional
◆ AP and STA modes supported



Description
Specifications
Documentation

Vantron HAP103 Wi-Fi HaLow access point conforms to the prominent IEEE 802.11ah (Wi-Fi HaLow) standard and IEEE 802.11 b/g/n (2.4GHz Wi-Fi). It supports up to 1km coverage at ultra-low power consumption while still delivering optimal performance with data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow), respectively. With IEEE 802.11ah complied, HAP103 supports stable connection of over 8,000 clients in AP mode, making it an ideal solution for replacing complex networking requirements in confined spaces.


HAP103 provides user options including two Wiegand input connectors for data transmission in access control scenarios. The RS485 connector allows for flexible industrial data collection and transfer, and it can be switched to the debug mode to support device debugging. The optional PoE Powered Device (PD) feature eliminates the need for a separate power source, providing significant benefits in scenarios where efficient power management and connectivity are crucial.


HAP103 is designed for large-scale dense deployment of low-power stations to eliminate multiple access points in application scenarios such as access control systems, smart home appliances, surveillance systems, logistics and asset management, portables, and wearables.

Specifications
Product Name
HAP103 Wi-Fi HaLow Access Point
CPU
MediaTek 580MHz MIPS® CPU
Wi-Fi HaLow SoC
Morse Micro MM6108
Memory
256MB
Storage
64MB
2.4GHz Wi-Fi
Standard: IEE 802.11 b/g/n ; Frequency range: 2.412GHz ~ 2.484GHz ; Channel bandwidth: 20/40 MHz ; Data rate: up to 150 Mbps ; Antenna: 2T2R
Wi-Fi HaLow
Standard: IEE 802.11 ah ; Frequency range: 850MHz ~ 950 MHz ; Channel bandwidth: 1/2/4/8 MHz ; Data rate: up to 32.5 Mbps @8MHz or 15 Mbps @4MHz ; Working mode: AP, STA configurable
Bluetooth
Optional
Fast Ethernet
1 x RJ45, 10/100 Mbps (PoE PD optional)
RS485 with 5V output
Serial communication mode (default, baud rate: 115200) ; Debug mode (baud rate: 57600)
Antenna
1 x Wi-Fi HaLow SMA connector ; 1 x 2.4GHz Wi-Fi SMA connector ; 1 x 2.4GHz Wi-Fi/BT SMA connector
Relay (Optional)
2 x Relay output
Input (Optional)
2 x Wiegand input (5V)
LED indicators
1 x Power indicator ; 1 x WLAN activity indicator ; 1 x Wi-Fi HaLow activity indicator ; 1 x Error indicator
Button
1 x Restore button
Dimensions
122mm x 74mm x 35mm (with wall mount)
Casing material
Plastics (UL94, SP6 compliant)
Installation
Wall mounting
Heat dissipation
Fanless
Input
9V ~ 40V DC
Port
3-pin terminal (Over-current protection, reverse polarity protection)
Operating system
VantronOS
VPN
OpenVPN, IPSec
Device management platform
Vantron BlueSphere GWM
Upgrade
Local upgrade, OTA upgrade
2.4GHz Wi-Fi
64/128-bit WEP, TKIP, WPA, WPA2, AES, WPS
Wi-Fi HaLow
WPA3
Temperature
Operating: -20℃ ~ +60℃ Storage: -40℃ ~ +85℃
Humidity
≤ 95% RH (non-condensing)
Certificate
FCC, IC
Documentation
Vantron HAP103 Wi-Fi HaLow Access Point Datasheet-V1.6.pdf
