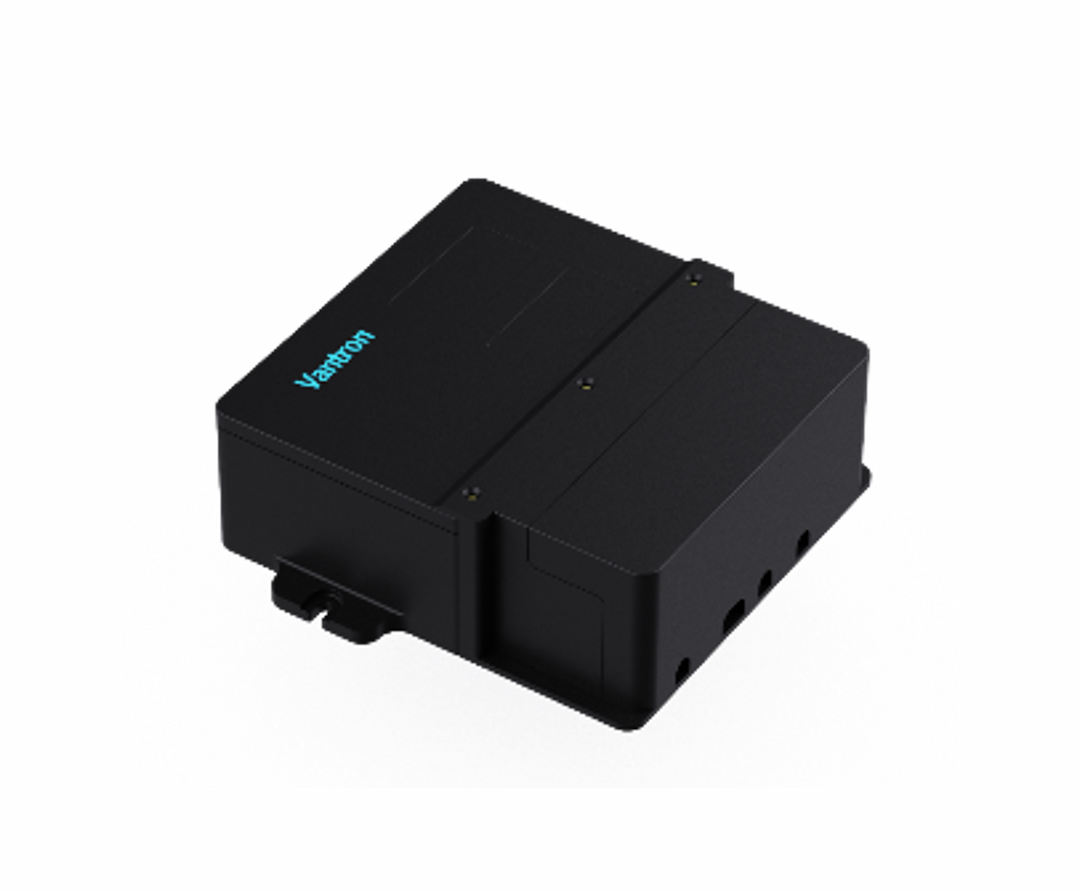

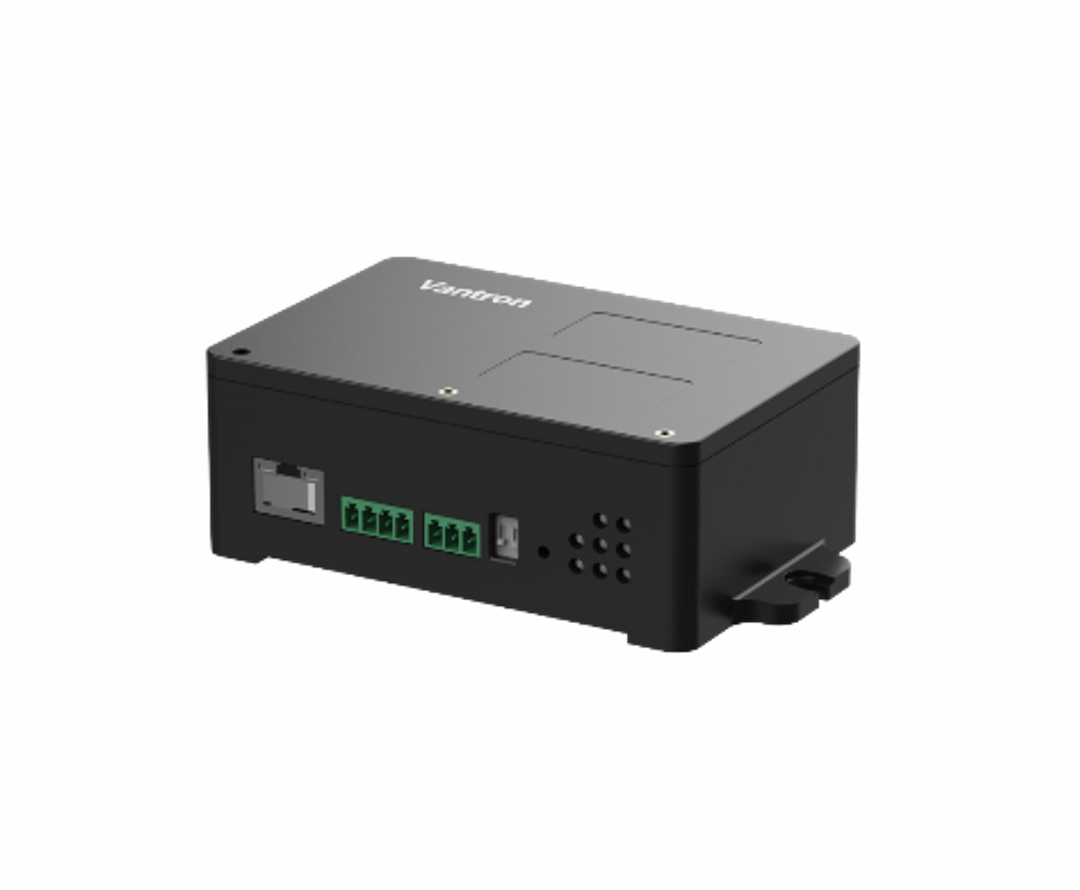

HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point
HAP101 Wi-Fi HaLow Access Point

HAP101 Wi-Fi HaLow Access Point

◆ Wi-Fi HaLow with 2.4GHz Wi-Fi combined
◆ Sub-1 GHz frequency bands supported
◆ Longer distance: up to 1km
◆ More than 8,000 stable connections, 4x legacy AP
◆ Data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow)
◆ Ultra-low power consumption
◆ Better penetration through walls and obstacles
◆ Enhanced Wi-Fi security protections
◆ Wide range of commercial and IoT applications
◆ AP and STA modes supported

Description
Specifications
Documentation

Vantron HAP101 Wi-Fi HaLow access point is designed in compliance with the prominent IEEE 802.11ah (Wi-Fi HaLow) standard and IEEE 802.11 b/g/n (2.4GHz Wi-Fi). It offers a complete Wi-Fi connectivity solution for IoT developers who seek for wireless connections with energy efficiency, extended coverage, obstacle penetration, effortless accessibility, etc.


HAP101 supports up to 1km coverage at ultra-low power consumption while still delivering optimal performance with data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow), respectively. By complying with the IEEE 802.11ah standard, HAP101 supports operation in the sub 1GHz license exempt RF bands to avoid the crowded 2.4GHz frequency band. It enables stable connection of over 8,000 clients when working at the AP mode, making it an ideal solution for replacing complex networking requirements in confined spaces.


HAP101 is designed for large-scale dense deployment of low-power stations to eliminate multiple access points in application scenarios such as smart home appliances, surveillance systems, industrial process control, logistics and asset management, portables and wearables, smart city facilities, etc.

Specifications
Product Name
HAP101 Wi-Fi HaLow Access Point
CPU
MediaTek 580MHz MIPS® CPU
Memory
256MB
Storage
64MB
2.4GHz Wi-Fi
Standard: IEE 802.11 b/g/n ; Frequency range: 2.412GHz ~ 2.484GHz ; Channel bandwidth: 20/40 MHz ; Data rate: up to 150 Mbps ; Antenna: 2T2R
Wi-Fi HaLow
Standard: IEE 802.11 ah ; Frequency range: 850MHz ~ 950 MHz ; Channel bandwidth: 1/2/4/8 MHz ; Data rate: up to 32.5 Mbps @8MHz or 15 Mbps @4MHz ; Working mode: AP, STA configurable
Fast Ethernet
1 x RJ45, 10/100 Mbps
Serial port (Optional)
1 x RS485 (4-pin terminal, 5V output, baud rate: 115200)
Antenna
1 x Wi-Fi HaLow SMA connector ; 2 x 2.4GHz Wi-Fi SMA connector
LED indicators
1 x Power indicator ; 1 x WLAN activity indicator ; 1 x Wi-Fi HaLow activity indicator ; 1 x Error indicator
Button
1 x Restore button
Dimensions
110mm x 73mm x 28mm (with wall mount)
Casing material
Plastics (UL94, SP6 compliant)
Installation
Wall mounting
Heat dissipation
Fanless
Input
9V ~ 40V DC
Port
3-pin terminal (Over-current protection, reverse polarity protection)
Operating system
VantronOS
VPN
OpenVPN, IPSec
Device management platform
Vantron BlueSphere GWM
Upgrade
Local upgrade, OTA upgrade
2.4GHz Wi-Fi
64/128-bit WEP, TKIP, WPA, WPA2, AES, WPS
Wi-Fi HaLow
WPA3
Temperature
Operating: -20℃ ~ +60℃ ; Storage: -40℃ ~ +85℃
Humidity
≤ 95% RH (non-condensing)
Certificate
FCC, IC
Documentation
Vantron HAP101 Wi-Fi HaLow Access Point Datasheet-V1.6.pdf
HAP101 Wi-Fi HaLow Access Point Datasheet
Vantron HAP101 Wi-Fi HaLow Access Point User Manual-V1.3.pdf
HAP101 Wi-Fi HaLow Access Point User Manual
