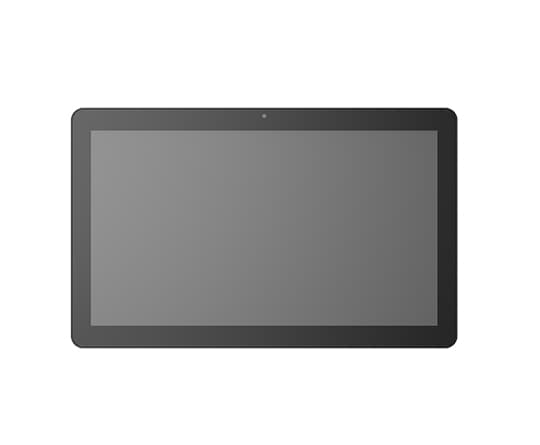

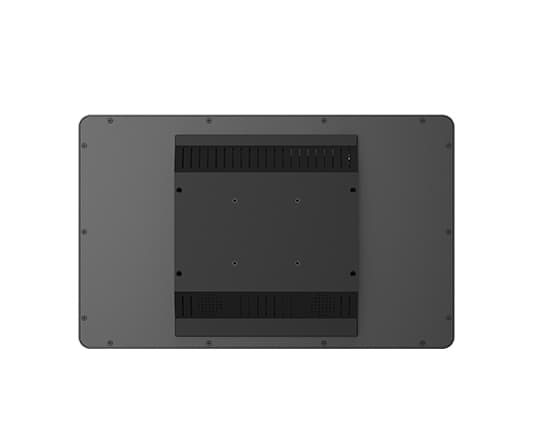

TPC185-RK3568 18.5" Android All-in-one Panel PC

◆ RK3568 quad-core high-performance processor
◆ Android 11 system, Linux distributions available
◆ 10-point PCAP touch screen, gloves compatible
◆ 5MP front camera, stereo speaker
◆ Ethernet/Wi-Fi/Bluetooth/4G LTE supported
◆ Sleek appearance, white and black colors for choice
◆ Flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description
Specifications
Documentation

Vantron TPC185-RK3568 is an 18.5” desktop all-in-one panel PC, powered by RK3568 quad-core high-performance processor. It features a 10-point PCAP touchscreen monitor with an aspect ratio of 16:9 and a resolution up to 1920 x 1080. TPC185-RK3568 offers multiple configuration options. Its rich interfaces allow for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals. The VESA pattern also allows users to mount and maintain the device more flexibly for industrial control.


Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications
Product Name
TPC185-RK3568 18.5" Android All-in-one Panel PC
CPU
Rockchip RK3568, Quad-core ARM Cortex A55 processor, 1.8GHz (Max.)
Memory
4GB (Optional: 2GB)
Storage
32GB (Optional: 16GB) SSD expansion supported (M.2 B-Key)
Ethernet
1 x RJ45, 10/100/1000Mbps
Wi-Fi & BT
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Cellular
4G LTE (Optional)
Display
18.5-inch TFT LCD
Resolution
1920 x 1080 @60Hz
Brightness
300 nits
Contrast ratio
1000:1
Aspect ratio
16:9
Viewing angle
89/89/89/89 (U/D/L/R)
Extended display
1 x HDMI, up to 4K @60Hz
TP
10-point PCAP touch screen
Surface treatment (Optional)
Anti-glare (AG), anti-reflection (AR)
Surface hardness
6H
Cover lens
At least IK03 rated
Light transmittance ratio
> 85%
Camera
Front camera, 5MP, fixed focus
Audio
1 x 3.5mm combo audio jack Built-in dual-track speakers (Max. 3W)
USB
1 x USB 2.0 Type-C 1 x USB 3.0 Type-A 1 x USB 2.0 Type-A
RTC
Supported
WDT
Supported
Button
1 x Power button
LED indicator
Optional: 1 x LED indicator for power and system status
OS
Android 11 (Optional: Linux)
Device management platform
BlueSphere MDM for Android version (Optional)
OTA tool
BlueSphere OTA (Optional)
Input
12V DC 1 x Power jack
Consumption
~ 25W
Dimensions
457.96mm x 285.40mm x 50.00mm
Casing color
White/black
Installation
VESA mounting (75mm x 75mm, M4 x 10mm)
Weight
5kg
Heat dissipation
Fanless (Heatsink, housing)
Temperature
Operating: -10℃ ~ +50℃ Storage: -20℃ ~ +70℃
Humidity
Operating: 20%-80% RH (Non-condensing) Storage: 10%~90% RH (Non-condensing)
Certification
CCC, FCC
Warranty
2 years
Documentation
Vantron TPC185-RK3568 18.5” All-in-one Panel PC Datasheet - V1.5.pdf
TPC185-RK3568 18.5" Android All-in-one Panel PC Datasheet
