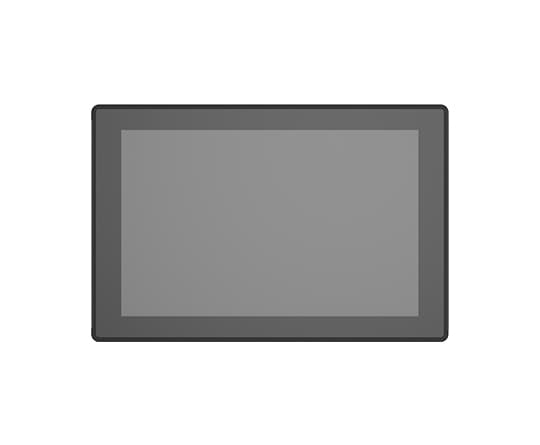

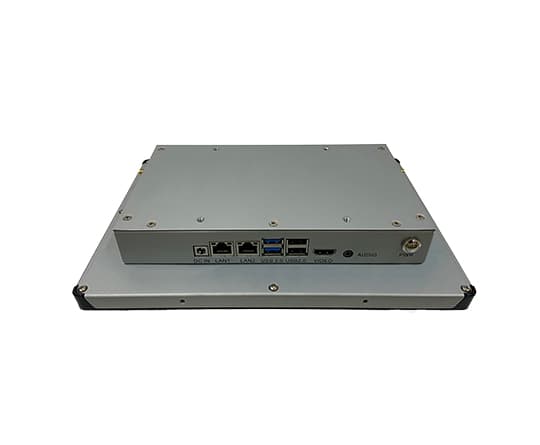

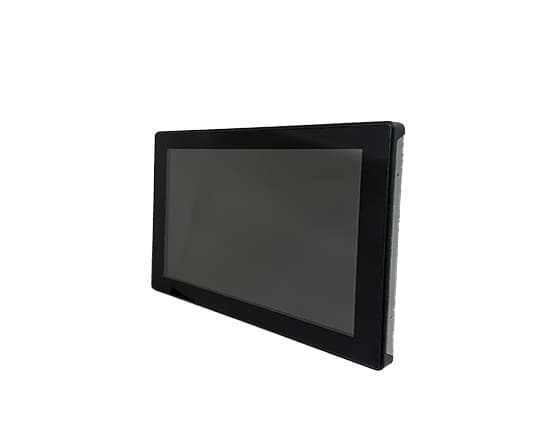

TPC101-APL 10.1" Windows All-in-one Panel PC

TPC101-APL 10.1" Windows All-in-one Panel PC

◆ Intel Atom® E3940 Quad-core high-performance processor
◆ Windows 10 IoT system, Linux distributions available
◆ 10.1-inch TFT LCD, 16:10, 1280 x 800
◆ Ethernet/Wi-Fi/Bluetooth/4G LTE supported
◆ Dual gigabit Ethernet ports
◆ Front bezel for true flat installation
◆ IP65-rated front panel

Description

Specifications

Documentation

Vantron TPC101-APL is an open-frame 10.1” all-in-one panel PC, powered by the high-performance Intel Atom® E3940 processor. It features a 10-point PCAP touchscreen monitor with an aspect ratio of 16:10 and a resolution of 1280 x 800. TPC101-APL offers multiple configuration options. Its rich interfaces allow for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals. It offers both VESA pattern and side brackets for installation, enabling users to mount and maintain the device more flexibly for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product name

TPC101-APL 10.1" Windows All-in-one Panel PC

CPU

Intel Atom®, APL-I E3940 Quad-core processor, 1.8GHz (Max.)

Memory

1 x DDR3L SO-DIMM socket, 8GB (Optional: 4GB)

Storage

64GB eMMC SSD expansion supported (M.2 B-Key 2242)

Ethernet

2 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Cellular

Optional: 4G LTE

Display

10.1-inch TFT LCD

Resolution

1280 x 800 @60Hz

Brightness

300 nits

Contrast ratio

800:1

Aspect ratio

16:10

Viewing angle

85/85/80/80 (U/D/L/R)

Extended display

1 x HDMI, up to 3840 x 2160 @30Hz

10-point PCAP touch screen

Surface treatment (Optional)

Anti-glare (AG), anti-reflection (AR)

Surface hardness

Cover lens

At least IK03 rated

Light transmittance ratio

> 85%

Audio

1 x 3.5mm combo audio jack

USB

2 x USB 3.0 Type-A 2 x USB 2.0 Type-A

RTC

Supported

WDT

Supported

Button

1 x Power button

Input

12V~36V DC; 1 x DC jack

Windows 10 IoT (Optional: Linux)

Input

12V~36V DC 1 x DC jack

Consumption

~ 15W

Dimensions

262.9mm x 174.9mm x 47.7mm (Panel cutout recommended: 258mm x 170mm)

Casing color

Silver gray

Installation

VESA mounting (100mm x 100mm, M4 x 10mm) Side mounting

Weight

1.5kg

Protective features

Front panel IP65

Heat dissipation

Heatsink

Temperature

Operating: -10℃ ~ +50℃ Storage: -20℃ ~ +70℃

Humidity

Operating: 20% ~ 80% RH (Non-condensing) Storage: 10% ~ 90% RH (Non-condensing)

Certification

CCC, FCC

Warranty

2 years

Documentation

Vantron TPC101-APL 10.1” All-in-one Panel PC Datasheet - V1.5.pdf

TPC101-APL 10.1" Windows All-in-one Panel PC Datasheet
