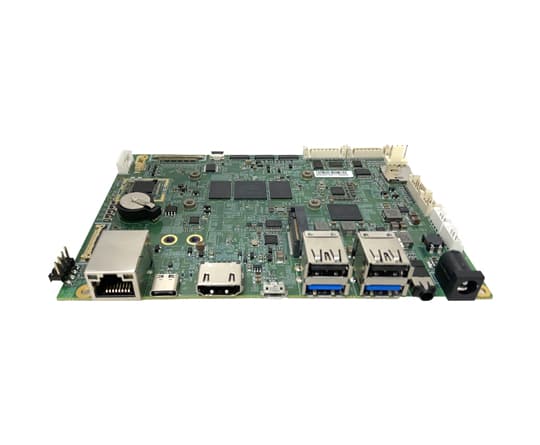

VT-SBC35-G700 MT8390 Single Board Computer

VT-SBC35-G700 MT8390 Single Board Computer

◆ MediaTek MT8390 octa-core processor
◆ Ethernet, Wi-Fi, BT, optional 4G/5G connectivity
◆ Display output up to 4K @60Hz
◆ 4K @30fps video encoder, 4K @75fps decoder
◆ 16MP + 16MP @30fps for dual-camera ISP
◆ Rich I/Os: COM, USB, SPI, UART, I2C, GPIO
◆ Powerful AI acceleration & graphic processing
◆ 3.5-inch form factor

Description

Specifications

Documentation

Adopting the 3.5-inch form factor, VT-SBC35-G700 single board computer is powered by the MediaTek MT8390 processor that combines two high-performance Cortex-A78 cores with six power-efficient Cortex-A55 cores, striking a balance between power and performance for a wide range of IoT applications. It integrates an Arm Mali-G57 GPU for enhanced 2D/3D graphic acceleration, with support for Vulkan® 1.1, OpenGL ES 3.2, and OpenCL™ 2.2. Itsupports 4K @75fps video decoding following the AV1/VP9/HEVC/H.264 formats and 4K @30fps video encoding following theHEVC/H.264 formats. The HiFi 5 audio DSP offers efficient pre-/post-processing capability for audio and video contents. In addition, the Tensilica VP6 APU backed by MediaTek Deep Learning Accelerator (MDLA 3.0), offering 4.4 TOPS AI performance for demanding imaging, computer vision, and neural network applications.

VT-SBC35-G700 boasts versatile display output options that enable dual displays in extended mode. It provides an RJ45 Ethernet jack and a combo Wi-Fi 5 and Bluetooth 5.0 chip for IoT connectivity. The board offers an M.2 Key B slot is for expansion of either Wi-Fi 6 and Bluetooth 5.2 or 4G/5G cellular connectivity. VT-SBC35-G700 is designed for diverse application scenarios such as smart retail, edge AI, IoT gateways, HMI, and smart fitness

Specifications

Product Name

VT-SBC35-G700 MT8390 Single Board Computer(ARM-based Single Board Computer)

CPU

MediaTek MT8390, Dual-core ARM Cortex-A78 (2.2 GHz) processor + Hexa-core ARM Cortex-A55 (2.0 GHz) processor

GPU

Arm Mali-G57

APU

4.4 TOPS, Tensilica VP6 + MediaTek Deep Learning Accelerator (MDLA 3.0)

Audio DSP

HiFi 5

Memory

4GB 64-bit LPDDR4x

Storage

64GB eMMC 5.1; Optional: SSD expansion (M.2 Key B)

Ethernet

1 x RJ45, 10/100/1000Mbps

Wireless

Wi-Fi 5 + BT 5.0; Optional: Wi-Fi 6 & BT 5.2 or 4G/5G (M.2 Key B)

Display (Dual-display extended mode supported)

1 x HDMI 2.0, up to 4K @60Hz; 1 x MIPI DSI/Dual LVDS, up to 2K @30Hz; 1 x eDP, up to 2K @60Hz; 1 x DisplayPort over USB Type-C, up to 4K @60Hz

Camera

2 x MIPI CSI-2, ISP: 32MP @30fps (single cam.)/ 16MP + 16MP @30fps (dual cam.)

Touch

1 x TP connector

Serial

2 x RS232 connector ;2 x RS232/RS422/RS485 connector

USB

2 x USB 2.0 Type-A 2 x USB 3.0 Type-A; 2 x USB 2.0 connector; 1 x Micro USB 2.0 (Debug); 1 x USB 3.0 Type-C (DisplayPort)

GPIO header

12 x GPIO (Max.), including 1 x SPI, 1 x UART (3.3V, with RTS/CTS), 2 x I ²C

Fan

1 x Fan connector

UART

1 x Debug UART (1.8V)

SD & SIM

1 x Micro SD slot ；1 x Nano SIM slot

RTC

Supported

WDT

Supported

M.2 Key B

1 x M.2 key B (2242, PCIe 2.0 for SSD or 3052, USB 3.0 for 4G/5G or PCIe 2.0 for Wi-Fi 6 & BT5.2)

Key & LED

4 x Key (Home, Reset, Volume, Power) ；2 x LED connector

Input

12V/3A DC (via the DC jack or USB Type-C)

Operating system

Android 13, Linux Yocto

Dimensions

146mm x 102mm

Temperature

Operating: -20℃~+70℃ (Optional: -40℃~+80℃)； Storage: -40℃~+85℃ (Optional: -55℃~+85℃)

Humidity

5%-95% RH (Non-condensing)

Certification

FCC, ISED, CE
