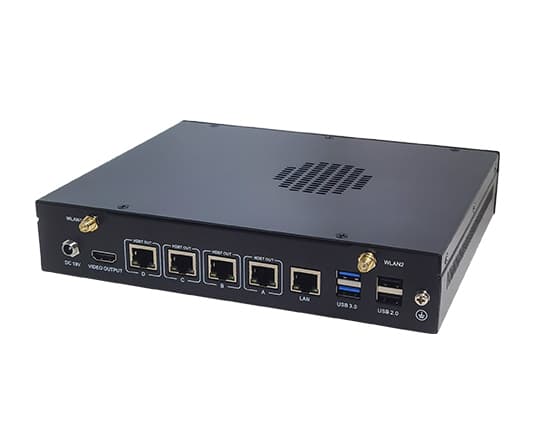

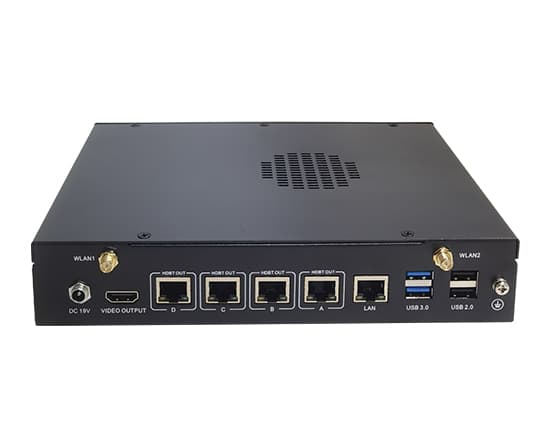

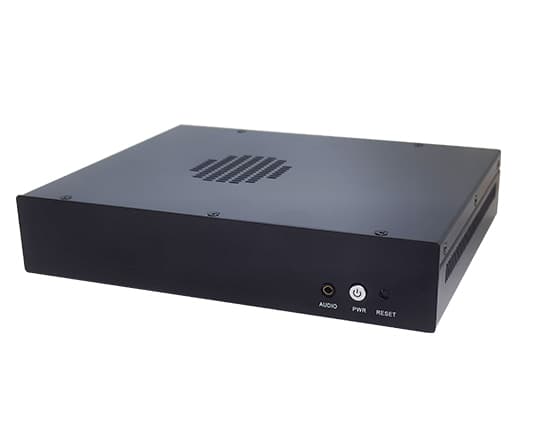

HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player
HT7200 Intel Core Windows HDBaseT Multimedia Player

HT7200 Intel Core Windows HDBaseT Multimedia Player

• Intel® CoreTM i7 processor
• Uncompressed data without latency
• Up to 100M transmission distance
• 4K UHD video output
• Wi-Fi/BT/ETH for communication
• USB 2.0 & USB 3.0
• VESA pattern for flexible installation

Description
Specifications
Documentation

Overview

The HT7200 HDBaseT™ Multimedia Player delivers exceptional performance and long-distance uncompressed data transmission for high-definition multimedia applications. Powered by the Intel® Core™ i7 processor and providing two DDR4 SO-DIMMs for a maximum of 64GB memory and a default 128GB storage, the HT7200 supports 4K UHD video output with zero latency, ensuring a seamless multimedia experience for industries requiring precision and efficiency over extended distances.

What is HDBaseT

HDBaseT is the only technology with the ability to distribute truly uncompressed ultra-high-definition A/V for distances of up to 100m/328ft., either point-to-point or daisy-chained, and with zero latency.

Technological Advantages

1.Long-Distance, Uncompressed Data Transmission
- Integrates up to four HDBaseT output interfaces that support a transmission distance of up to 100 meters without compromising speed or efficiency.
- The anti-interference design ensures high-quality video and audio signals remain free from interference during transmission, while also maintaining data consistency without latency.

2.4K Ultra HD Video Output
- Supports 4K UHD resolution (3840 x 2160), delivering crystal-clear visuals for video walls, surveillance, and digital signage applications.

3.Robust Connectivity Options
- Multiple communication options: Ethernet (ETH), Wi-Fi, and Bluetooth for seamless network integration.
- Equipped with USB 2.0 & USB 3.0 ports, supporting diverse peripheral connections like cameras, touchscreens, and keyboards.

4.Flexible Installation
- With plug-and-play technology, the multimedia player ensures uninterrupted multimedia playback and interference-free performance.
- Compact form factor with VESA mounting, ensuring flexible installation in any space-constrained environment.

Application Scenarios

The Vantron HT7200 HDBaseT Multimedia Player is a cutting-edge solution for industries requiring high-performance multimedia processing and extended-distance data transmission. It is highly suitable for use in scenarios such as medical imaging, surveillance systems, video walls, and digital signage, ensuring high-quality, latency-free multimedia performance.

Specifications
Product Name
HT7200 Intel Core Windows HDBaseT Multimedia Player
GPU
Intel® Iris® Xe Graphics
Memory
2 x DDR4-3200 SO-DIMM socket, 8GB (up to 64GB)
Storage
128GB SSD (M.2 M-key 2280)
Ethernet
1 x RJ45, 10/100/1000Mbps
Wireless
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Media
2/4 x RJ45, HDBaseT output (up to 3840 x 2160 @30Hz) 1 x HDMI 1.4 (up to 3840 x 2160 @30Hz) 1 x 3.5mm Combo audio jack
USB
2 x USB 3.0 Type-A 2 x USB 2.0 Type-A
Antenna
2 x SMA connector
RTC
Supported
Watchdog timer
Hardware WDT
Button
1 x Power button with LED indicator 1 x Reset button
OS
Windows 10 IoT (Optional: Linux)
Input
12V ~ 24V 5A 1 x DC jack
Dimensions
225mm x 180.8mm x 44mm
Installation
VESA (75mm x 75mm, M3 x 6mm)
Heat dissipation
Fan
Temperature
Operating: 0℃ ~ +40℃ Storage: -20℃ ~ +60℃
Humidity
Operating: 10%~90% RH (non-condensing) Storage: 5%~95% RH (non-condensing)
Certification
CE, FCC, CCC
Documentation
Vantron HT7200 HDBaseT Multimedia Player Datasheet - V1.5.pdf
HT7200 Intel Core Windows HDBaseT Multimedia Player Datasheet
HT7200 HDBaseT Multimedia Player User Manual-V1.2.pdf
HT7200 Intel Core Windows HDBaseT Multimedia Player User Manual
