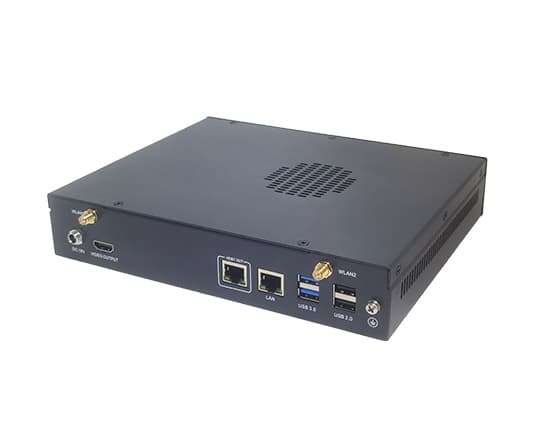

HT6200 Intel Celeron Windows HDBaseT Multimedia Player

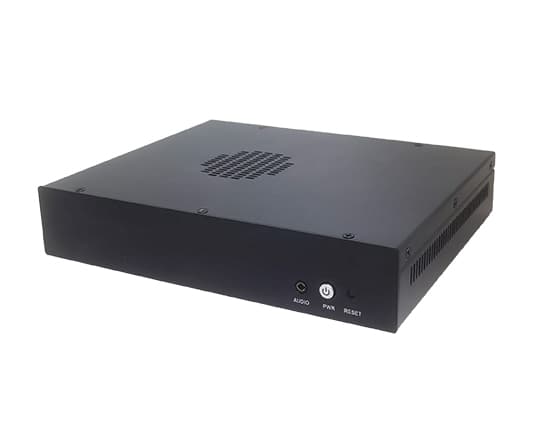

HT6200 Intel Celeron Windows HDBaseT Multimedia Player

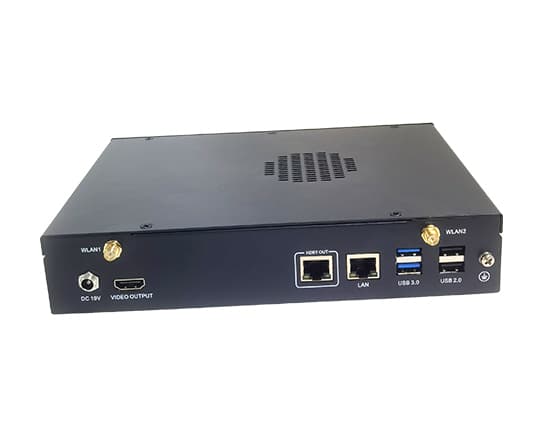

HT6200 Intel Celeron Windows HDBaseT Multimedia Player
HT6200 Intel Celeron Windows HDBaseT Multimedia Player
HT6200 Intel Celeron Windows HDBaseT Multimedia Player
HT6200 Intel Celeron Windows HDBaseT Multimedia Player
HT6200 Intel Celeron Windows HDBaseT Multimedia Player
HT6200 Intel Celeron Windows HDBaseT Multimedia Player

HT6200 Intel Celeron Windows HDBaseT Multimedia Player

◆  Intel® Celeron® processor
◆  Uncompressed data without latency
◆  Up to 100M transmission distance
◆  4K UHD video output
◆  Wi-Fi/BT/ETH for communication
◆  USB 2.0 & USB 3.0
◆  VESA pattern for flexible installation

Description
Specifications
Documentation

Vantron HT6200 HDBaseTTM multimedia player provides a long-distance data transmission solution over the HDBaseT output jacks that deliver uncompressed video signals with resolutions up to 4K ultra-HD. HT6200 is powered by Intel® Celeron® processor and provides two DDR4 SO-DIMMs for a maximum of 64GB memory and a default 128GB storage.


HT6200 offers a maximum of two HDBaseT output interfaces that support a transmission distance of up to 100 meters without compromising speed or efficiency. The anti-interference design ensures high-quality video and audio signals remain free from interference during transmission, while also maintaining data consistency without latency. It offers Ethernet, Wi-Fi, and Bluetooth for communication, and the USB ports allow for the connection of diverse peripherals for different purposes. Moreover, the VESA pattern on the bottom of the device enables flexible installation at the desired location, making it highly suitable for use in scenarios such as medical imaging, surveillance systems, video walls, and digital signage.

Specifications
Product Name
HT6200 Intel Celeron Windows HDBaseT Multimedia Player
CPU
Intel® Celeron® 6305E 2C2T TDP 15W, up to 1.8GHz
GPU
Intel® UHD Graphics
Memory
2 x DDR4-3200 SO-DIMM socket, 8GB (up to 64GB)
Storage
128GB SSD (M.2 M-key 2280)
Ethernet
1 x RJ45, 10/100/1000Mbps
Wireless
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Media
1/2 x RJ45, HDBaseT output (up to 3840 x 2160 @30Hz) 1 x HDMI 1.4 (up to 3840 x 2160 @30Hz) 1 x 3.5mm Combo audio jack
USB
2 x USB 3.0 Type-A 2 x USB 2.0 Type-A
Antenna
2 x SMA connector
RTC
Supported
Watchdog timer
Hardware WDT
Button
1 x Power button with LED indicator 1 x Reset button
OS
Windows 10 IoT (Optional: Linux)
Input
12V ~ 24V 5A 1 x DC jack
Dimensions
225mm x 180.8mm x 44mm
Installation
VESA (75mm x 75mm, M3 x 6mm)
Heat dissipation
Fan
Temperature
Operating: 0℃ ~ +40℃ Storage: -20℃ ~ +60℃
Humidity
Operating: 10%~90% RH (non-condensing) Storage: 5%~95% RH (non-condensing)
Certification
CE, FCC, CCC
Documentation
Vantron HT6200 HDBaseT Multimedia Player Datasheet - V1.5.pdf
HT6200 Intel Celeron Windows HDBaseT Multimedia Player Datasheet
HT6200 HDBaseT Multimedia Player User Manual-V1.2 (1).pdf
HT6200 Intel Celeron Windows HDBaseT Multimedia Player User Manual
