◆ Full HD display with vast applications

◆ PCAP technology, enabling multi-touch with gloves

◆ AF finishing, AR/AG touch screen available

◆ OPS player compatible to offer an all-in-one solution

◆ Flexible installation with VESA compatibility

◆ Excellent longevity (50,000H MTBF)

◆ Three-year warranty

Description
Specifications
Documentation

Vantron 43-inch wall-mountable touchscreen monitor delivers optimal visual effects and seamless touch experience. It is perfect for applications such as digital signage, product branding, electronic menus, and conference collaboration. Its durable design and reliable performance make it suitable for continuous use in high-traffic environments. When paired with Vantron OPS players, it can easily transform into a full-function all-in-one panel PC.


TMC430 makes touches smoother and more responsive by leveraging the industry-leading PCAP technology that allows for multi-touch with latex or cotton gloves. The screen is designed to resist fingerprints, and users have the option to equip the touch screen with anti-glare and anti-reflection coatings for improved visual experience and more accurate human-machine interaction. The VESA pattern on the device allows it to be perfectly embedded in checkouts or fully enclosed self-service terminals or to be flexibly mounted on any proper surfaces in the desired direction.

Specifications
Product Name
TMC430 43“ Desktop/Wall-mountable Touchscreen Monitor
Diagonal size
43" TFT LCD with LED backlight
Aspect ratio
16:9
Resolution
1920 x 1080 @60Hz
Brightness
500 nits
Active area
940.86mm × 529.25 mm
Contrast ratio
3000:1
Number of colors
16.7M
Response time
8ms
Viewing angle
89/89/89/89 (U/D/L/R)
Touch point
10-point PCAP touch screen
Touch control
Finger, stylus pen, touch with gloves
Cover lens
IK03 rated (Optional: IK07)2
Surface treatment
Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection)
Light transmittance ratio
>85%
Touch communication interface
USB 2.0 Type-B
Video interface
1 x DP 1.2 2 x HDMI 1.4
Audio interface
1 x Line in (3.5mm jack) 2 x 5W speaker (Optional)
Dimensions
1012.6mm x 601.5mm x 78.9mm
Weight
30kg
Installation

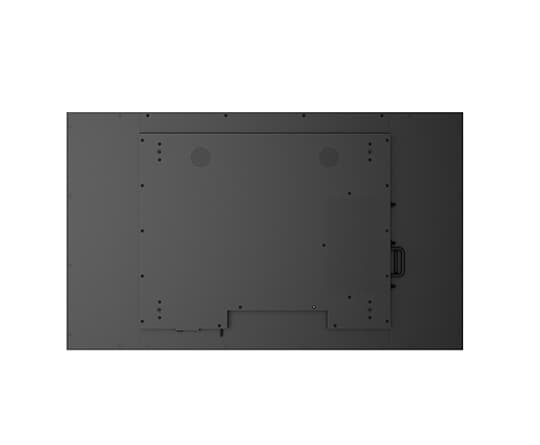

VESA mount (400mm x 400mm)
Display rotation
OSD lockout / OSD rotation
OSD
Keys: Menu, Up, Down, Back, Power Options: brightness, contrast, language, color temp., video interface…
Indicator
1 x RGB indicator (Red: standby; Green: working)
Button
1 x ON/OFF switch
Power input
100 ~ 240V AC 50/60Hz
Power consumption
Typical: 47W (without OPS player)
Language
Chinese and English
Temperature
Operating: 0℃~+40℃ Storage: -20℃~+60℃
Humidity
0%~95% RH (non-condensing)
MTBF
50,000 hours
Warranty
3 years
ESD
ESD: ±4KV (contact) and ±8KV (air)
Certificate
CCC, FCC, CE
Product Name
TMC550 55“ Wall-mountable Touchscreen Monitor
Documentation
Vantron TMC430 43“ Wall-mountable Touchscreen Monitor Datasheet - V1.5.pdf
TMC430 43“ Wall-mountable Touchscreen Monitor Datasheet
Vantron TMC Series Desktop/Wall-mountable Touchscreen Monitors QIG -V1.3.pdf
Vantron TMC Series Desktop/Wall-mountable Touchscreen Monitors QIG
