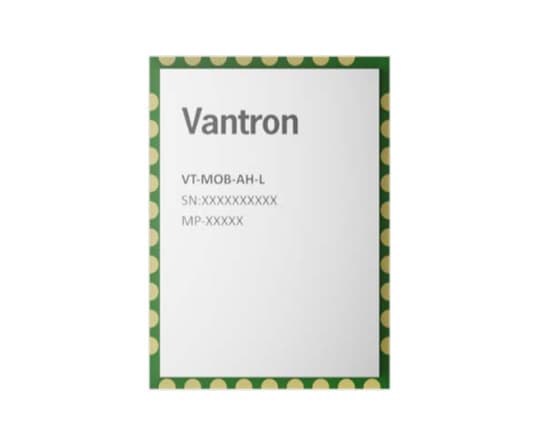

VT-MOB-AH-L Wi-Fi HaLow Module
VT-MOB-AH-L Wi-Fi HaLow Module
VT-MOB-AH-L Wi-Fi HaLow Module
VT-MOB-AH-L Wi-Fi HaLow Module

VT-MOB-AH-L Wi-Fi HaLow Module

◆Single-stream data rate up to 32.5 Mbps @8MHz or 15 Mbps @4MHz channel bandwidth
◆IEEE Std 802.11ah-2016 compliant
◆Automatic frequency and gain control
◆Support both STA and AP modes
◆Host interface SDIO 2.0 /SPI
◆BPSK & QPSK, 16-QAM & 64-QAM Modulation

Description
Specifications
Documentation

VT-MOB-AH-L is a Wi-Fi HaLow module that comes in an LGA package and is powered by Morse Micro MM6108 single-chip SoC. The SoC boasts an IEEE802.11ah Wi-Fi HaLow transceiver and integrates Radio, PHY, and MAC components, allowing for operation
in the sub 1GHz license exempt RF bands. Specifically designed to provide low-power, long-reach Wi-Fi connectivity for IoT applications, VT-MOB-AH-L operates between 850MHz and 950MHz bands and supports 1/2/4/8MHz channel width to provide
extended transmission range and faster data rate. Moreover, the module supports SHA1 and SHA2 hash algorithms in combination with latest WPA3 protocol for enhanced connectivity security.

VT-MOB-AH-L offers an SDIO 2.0 compliant slave interface and supports SPI mode operation. Its MAC supports both station (STA) and access point (AP) roles, making it versatile for different applications.

VT-MOB-AH-L can be easily integrated to IoT communication devices to allow users to quickly build their own Wi-Fi HaLow solutions.

Specifications
Product Name
VT-MOB-AH-L Wi-Fi HaLow Module(Smart Module)
Major Chipset
Morse Micro MM6108 HaLow SoC
Host interface
1 x SDIO/SPI
GPIO
9 x GPIO
JTAG
Supported
Wi-Fi standard
IEEE 802. 11ah
Frequency range (Sub 1 GHz bands)
850MHz ~ 950MHz
Channel bandwidth
1 / 2 / 4 /8 MHz
Data rate
1 MHz/3.33Mbps (Max.)、2 MHz/7.22Mbps (Max.)、4 MHz/15Mbps (Max.)、8 MHz/32.5Mbps (Max.)
Security
AES encryption engine SHA1 and SHA2 hash algorithms (SHA-256, SHA-384, SHA-512) WPA3 including protected management frames (PMF)
Dimensions
23mm x 14mm x 2.6mm
Voltage
VBAT: 3.3V、VDD_FEM: 3.3V、VDDIO: 3.3V
Temperature
Operating: -40℃~+85℃ /Storage: -40℃~+90℃
Humidity
Less than 85% (Non-condensing)
Packaging
LGA
Certificate
FCC, IC, CE
Documentation
VT-MOB-AH-L Wi-Fi HaLow Module Datasheet-V1.6.pdf
VT-MOB-AH-L Wi-Fi HaLow Module Datasheet
