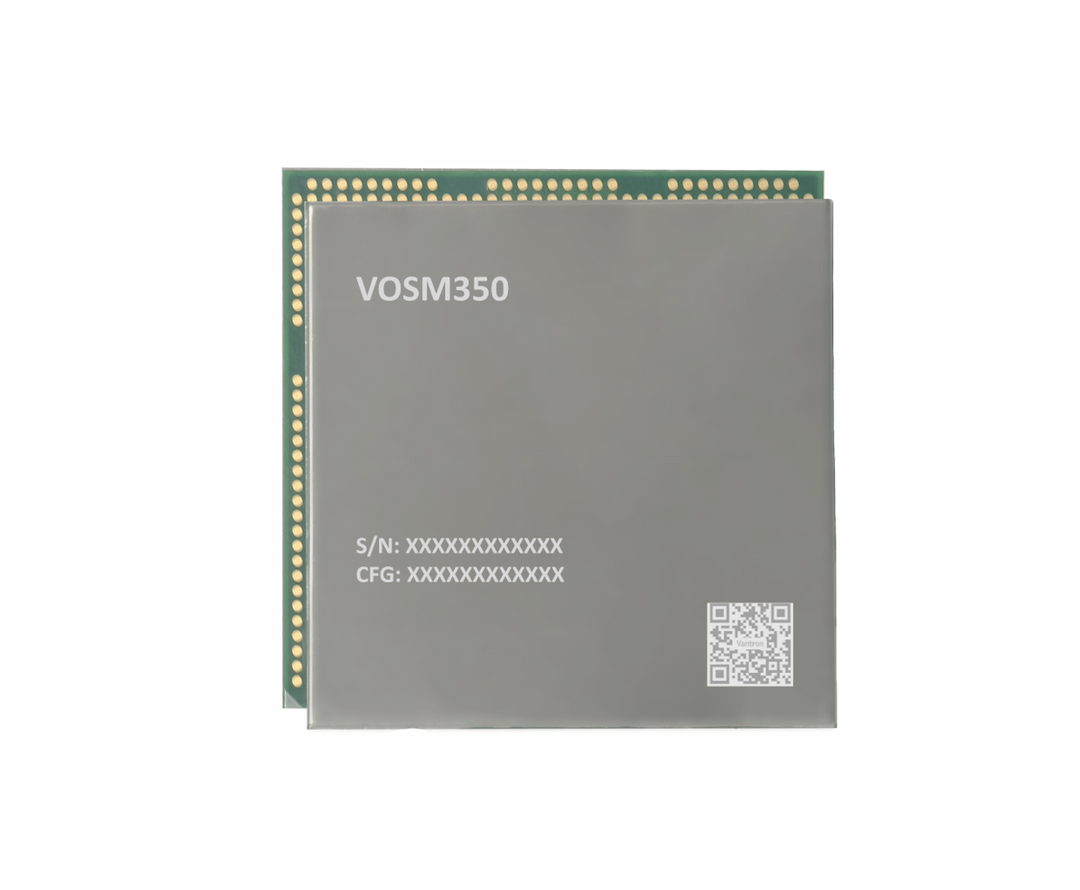

VOSM350 MTK G350 Module
VOSM350 MTK G350 Module
VOSM350 MTK G350 Module
VOSM350 MTK G350 Module

VOSM350 MTK G350 Module

◆ Flexible option for advanced & compact editions

◆ Rich interfaces, robust system performance

◆ Internal DSP unit, low power design

◆ Wi-Fi & Bluetooth integrated, RF debug ready

◆ Android and Linux systems supported

◆ Compact size, LGA packaging

◆ Open Standard Modules (OSM) V1.1 compliant

◆ Extended service life (7+ years)

Description
Specifications
Documentation

VOSM350 system-on-module is powered by MediaTek G350 chipset, which integrates a quad-core Arm Cortex-A53 processor, a Mali-G52 GPU, a VP6 APU for AI and computer vision algorithms and a HiFi4 audio engine DSP to fit for edge AI applications that require voice and vision processing. Its support for Wi-Fi, Bluetooth, and GPS wireless connectivity functions increases its versatility for IoT scenarios. The module features an LGA packaging that allows for direct welding, eliminating the need for additional connectors. Additionally, it is compliant with Open Standard Modules (OSM) V1.1, which enables seamless integration into various products. The module design conforms to industrial standards, ensuring an extended service life that meets the rigorous demands of industrial customers.


Customers have the option to choose between two variants that offer advanced and compact configurations. The module is designed to cater to a vast of application scenarios including but not limited to handheld devices, smart home appliances, industrial IoT devices, and gym instruments.

Specifications
Product Name
VOSM350 MTK G350 Smart Module
CPU
MTK G350, ARM Cortex-A53, Quad-Core Low Power Processor, Max 2.0GHz Mali-G52 GPU core,600MHz
Memory
2GB LPDDR4 (Optional: 4GB)
Storage
16GB eMMC 5.1 (Optional: 64GB)
EEPROM
2Kb (for hardware configuration information)
PMIC
MT6390
Wi-Fi
802.11 a/b/g/n/ac
Bluetooth
Bluetooth V4.2
GPS
Supported
Display
Dual displays, FHD60/HD60, 1080p60, H.265/H.264/VP9
Audio DSP
HiFi-4, Connectors for speaker, earphone, and microphone
Camera
2 x Camera (Max.)
Input
5V/1A DC input
Operating system
Android 10/11/12 Optional: Linux
Device management
BlueSphere MDM (Android version only)
Upgrade tool
BlueSphere OTA
Dimensions
45mm x 45mm x 1.2mm
Temperature
Operating: -20℃ ~ +60℃ Storage: -30℃ ~ +70℃
Humidity
≤ RH95% (Non-condensing)
Certification
CE, FCC, CCC
I/Os
MIPI DSI
1 x 4-lane MIPI DSI (multiplexed to 1 x 4-lane LVDS)
MIPI CSI
1 x 4-lane MIPI CSI / 2 x 2-lane MIPI CSI
ADC
2 x ADC (Recovery button + Volume button)
RGMII (Ethernet)
1 x RMII/MII
SPI
1 x SPI
Debug UART
1 x UART for debugging (1.8V level)
Communication UART
2 x UART (TTL)
I2S
1 x I2S (support 2 x SDI & 2 x SDO)
I2C
2 x I2C
PWM
Supported
USB
1 x USB 2.0 OTG 1 x USB 2.0 Host
GPIO
29 x GPIO (max.)
JTAG
Supported
Documentation
VOSM350 System-on-Module  Datasheet - V1.6.pdf
VOSM350 System-on-Module Datasheet
VOSM350 Evaluation Kit  Datasheet - V1.7.pdf
VOSM350 Evaluation Kit Datasheet
