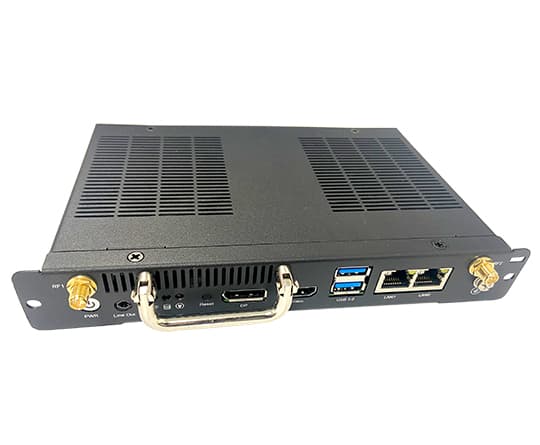

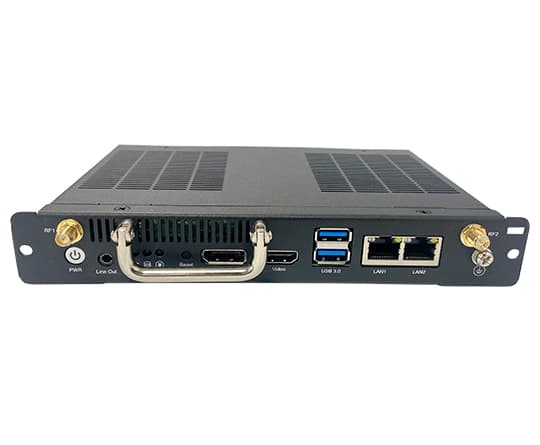

Conforming to Intel Open Pluggable Specification-Plus (OPS+), Vantron Oplayer357 OPS Player is powered by Intel® TigerLake processor with CoreTM i3/i5/i7 or Celeron® available for choice. Vantron Oplayer357 offers two DDR4 SO-DIMMs for a maximum of 64GB memory. Despite its energy efficiency, Oplayer357 boasts rich interfaces, including DisplayPort and HDMI that support 4K UHD output, 3.5mm line out jack, USB 3.0 ports and Ethernet jacks, allowing for flexible connectivity with different peripherals.

Oplayer357 can be easily connected to an OPS compliant display via the JAE TX25 plug connector which offers DisplayPort, HDMI, USB 2.0, USB 3.0, audio (Line-out) and UART signals. It also features an HRS FX18 connector that provides additional DisplayPort, 4-lane PCIe, and I2C signals for user expansion. Such design greatly reduces space requirements and lowers deployment and maintenance costs.

Oplayer357 is designed to be seamlessly installed on Vantron TMC series large-screen touch monitors to offer an overall digital signage solution, significantly saving customers’ efforts and expenditures.
